Intel Server Board S5500BC TPS
®
Setup Item
Delete Boot Option
5.3.2.6.3 Hard Disk Order Screen
The Hard Disk Order screen allows the user to control the hard disks.
To access this screen from the Main screen, select Boot Options > Hard Disk Order.

Hard Disk #1
Hard Disk #2

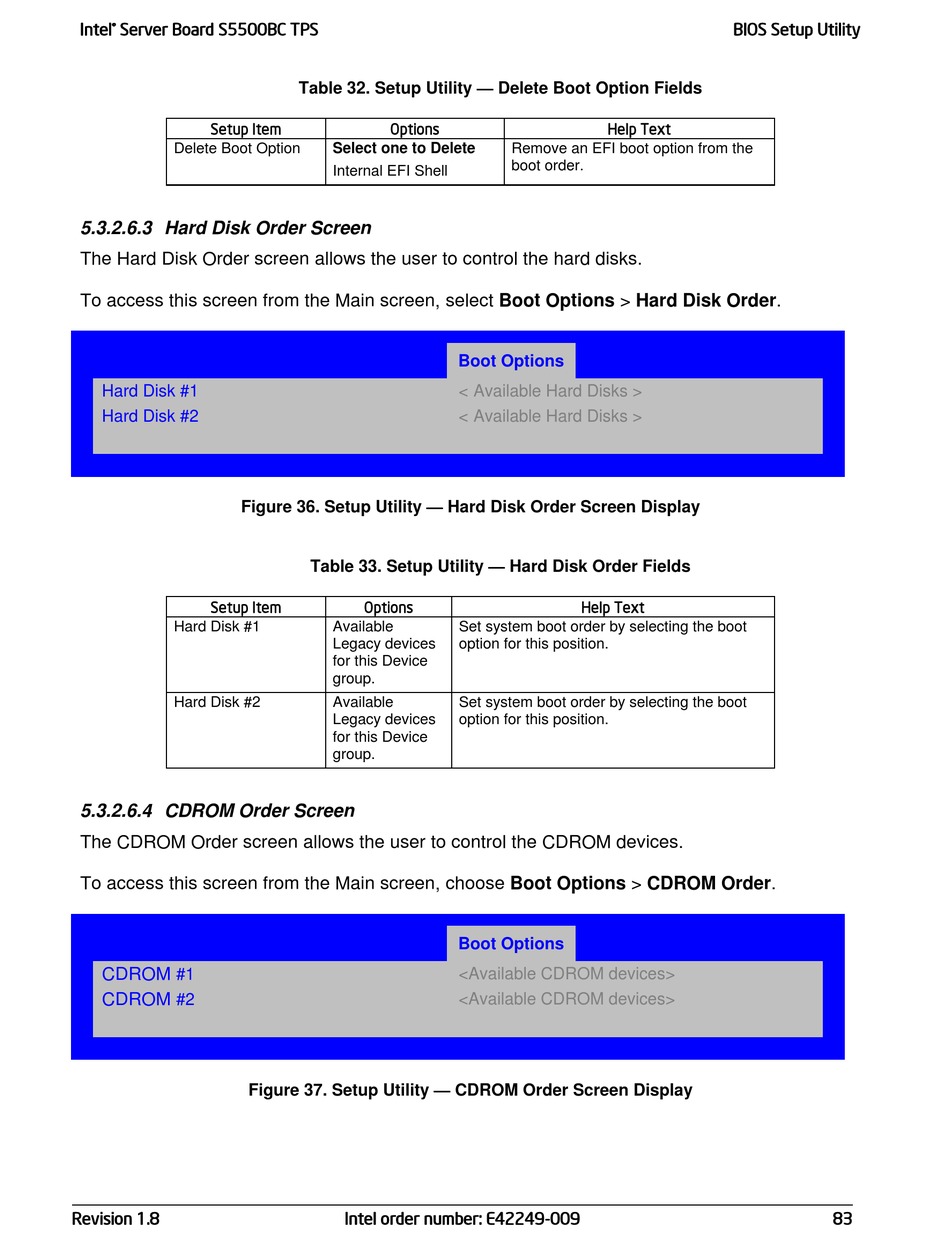

Figure 36. Setup Utility — Hard Disk Order Screen Display
Setup Item
Hard Disk #1
Hard Disk #2
5.3.2.6.4 CDROM Order Screen
The CDROM Order screen allows the user to control the CDROM devices.
To access this screen from the Main screen, choose Boot Options > CDROM Order.

CDROM
#1
CDROM
#2
Figure 37. Setup Utility — CDROM Order Screen Display
Revision 1.8
Table 32. Setup Utility — Delete Boot Option Fields
Options
Select one to Delete
Internal EFI Shell
Boot Options
< Available Hard Disks >
< Available Hard Disks >
Table 33. Setup Utility — Hard Disk Order Fields
Options
Available Set system boot order by selecting the boot
Legacy devices option for this position.
for this Device
group.
Available Set system boot order by selecting the boot
Legacy devices option for this position.
for this Device
group.
Boot Options
<Available CDROM devices>
<Available CDROM devices>
Intel order number: E42249-009
Help Text
Remove an EFI boot option from the
boot order.
Help Text
BIOS Setup Utility


83
