Intel Server Board S5500BC TPS
®
Advanced
Serial Port Configuration
Serial A Enable
Address
IRQ
Serial B Enable
Address
IRQ
 

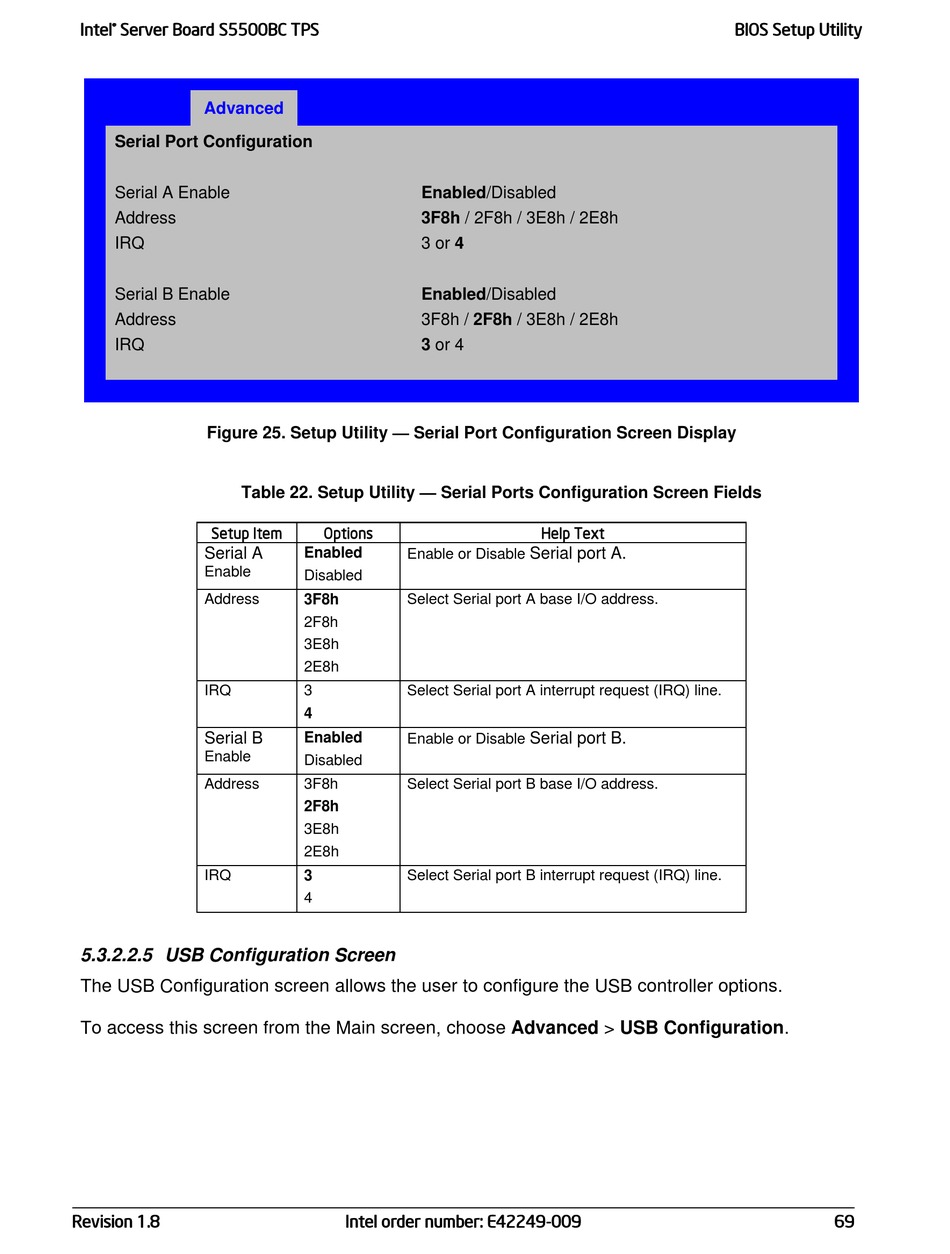

Figure 25. Setup Utility — Serial Port Configuration Screen Display
Table 22. Setup Utility — Serial Ports Configuration Screen Fields
Setup Item
Serial A
Enable
Address
IRQ
Serial B
Enable
Address
IRQ
5.3.2.2.5 USB Configuration Screen
The USB Configuration screen allows the user to configure the USB controller options.
To access this screen from the Main screen, choose Advanced > USB Configuration.
Revision 1.8
Enabled/Disabled
3F8h / 2F8h / 3E8h / 2E8h
3 or 4
Enabled/Disabled
3F8h / 2F8h / 3E8h / 2E8h
3 or 4

Options
Enabled
Enable or Disable
Disabled
3F8h Select Serial port A base I/O address.
2F8h
3E8h
2E8h
3 Select Serial port A interrupt request (IRQ) line.
4
Enabled
Enable or Disable
Disabled
3F8h Select Serial port B base I/O address.
2F8h
3E8h
2E8h
Select Serial port B interrupt request (IRQ) line.
3
4
Intel order number: E42249-009
Help Text
Serial port A.
Serial port B.
BIOS Setup Utility

69
