Chapter 8

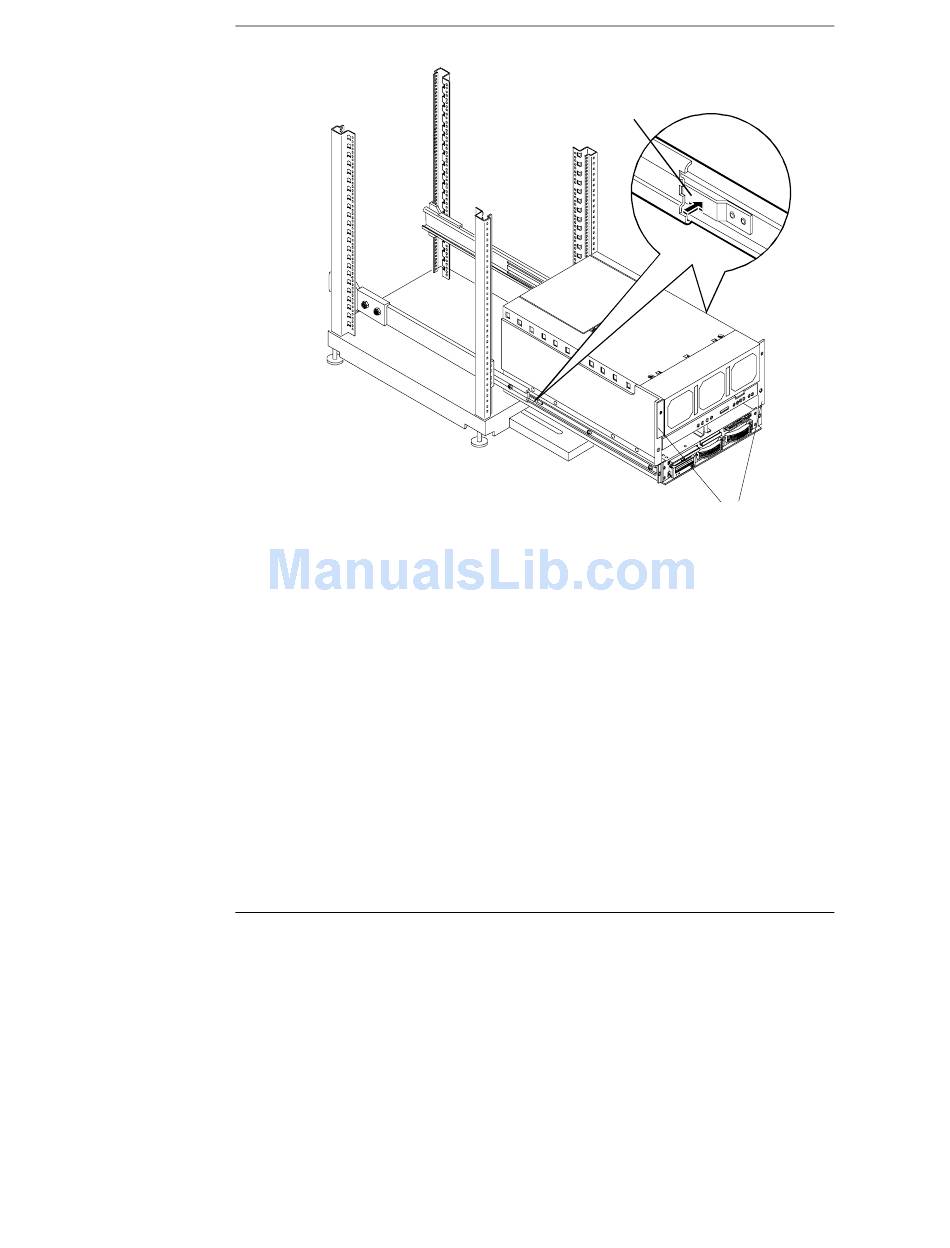

Figure 8-10. Pressing in the Release Latches
8. Each of the server's two front flanges has two slots. These slots should line
up with rack nuts that you previously mounted on the rack columns. Insert
screws through the flanges into the rack nuts, and fasten the server in
place so it cannot slide.

Step 4: Attaching the Front Bezel

The front bezel is attached to the server by a hinge and a latch. You must attach
the hinge and latch to the front of the server before mounting the bezel.
1. Push the hinge into place on the left edge of the front of the HP NetServer.
The two hooks on the rear of the hinge must fit into the two matching
holes on the front of the server. The hooks attach the hinge to the server,
but not securely. See Figure 8-11.
86
Mounting the Server in the Rack
Press in the release latch on
each slide and push the
server into the rack
Flanges
