2. Lift the access panel away from the top cover. See Figure 3-4.
NOTE
After you remove the access panel, a metal shield blocks your
access to I/O slots P1 through P6, the slots that do not support
PCI Hot Plug operation. To reach these slots, power down the
server and remove the entire top cover. The shield then lifts
off easily.
3. To replace the panel, lower it onto the top cover, about a half-inch to the
rear of its normal position when closed. See Figure 3-3.
4. Push the cover forward until the slots in its front edge line up with the
screw holes on the server's chassis.
5. Reattach the screws.
26
Opening and Closing the HP NetServer

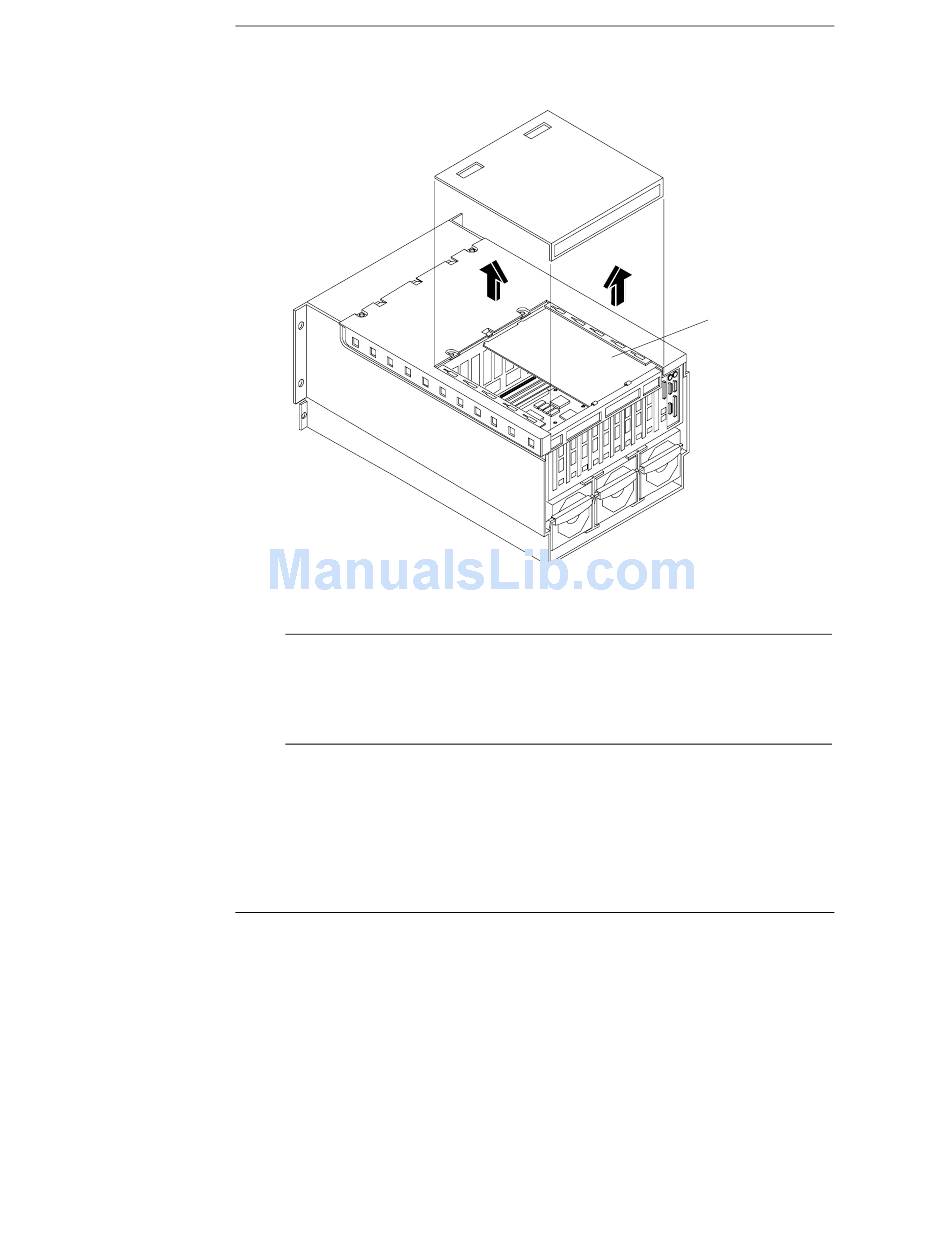

Figure 3-4. Lifting Off the Access Panel
Shield blocks
access slots
that do not
support
PCI Hot Plug
