Chapter 8
6. Remove the screws that attach the handles to the server . (See Figure 8-9).
Take the handles off the server. Store the handles and screws in a
convenient place. Reattach the handles whenever you remove the server
from the rack. (If you plan on shipping the server elsewhere, always pack
it with the handles attached.)

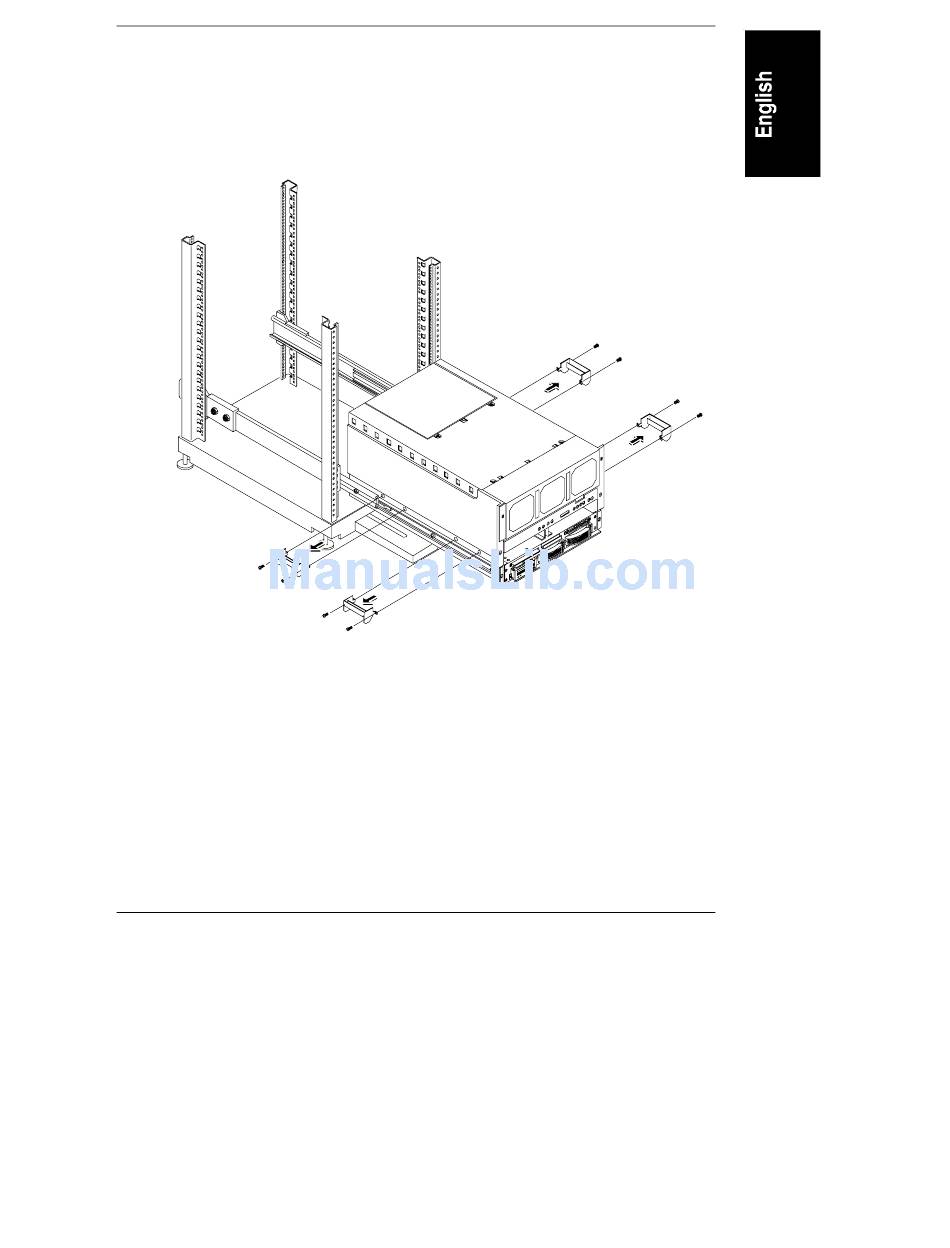

Figure 8-9. Removing the Mounting Handles
7. Press in the release latches on each slide, and push the server all the way
back into the rack. The flanges on each side of the front of the server must
rest firmly against the two front rack columns. See Figure 8-10.
Mounting the Server in the Rack
85
