Chapter 3
Opening and Closing the HP NetServer
To remove the PCI Hot Plug access panel and reach the hot-plug slots:
1. Remove the Torx screws that fasten the access panel to the rest of the top
cover. Push the panel back about one half-inch.
1. Remove screws
2. Push panel
back 1/2 inch

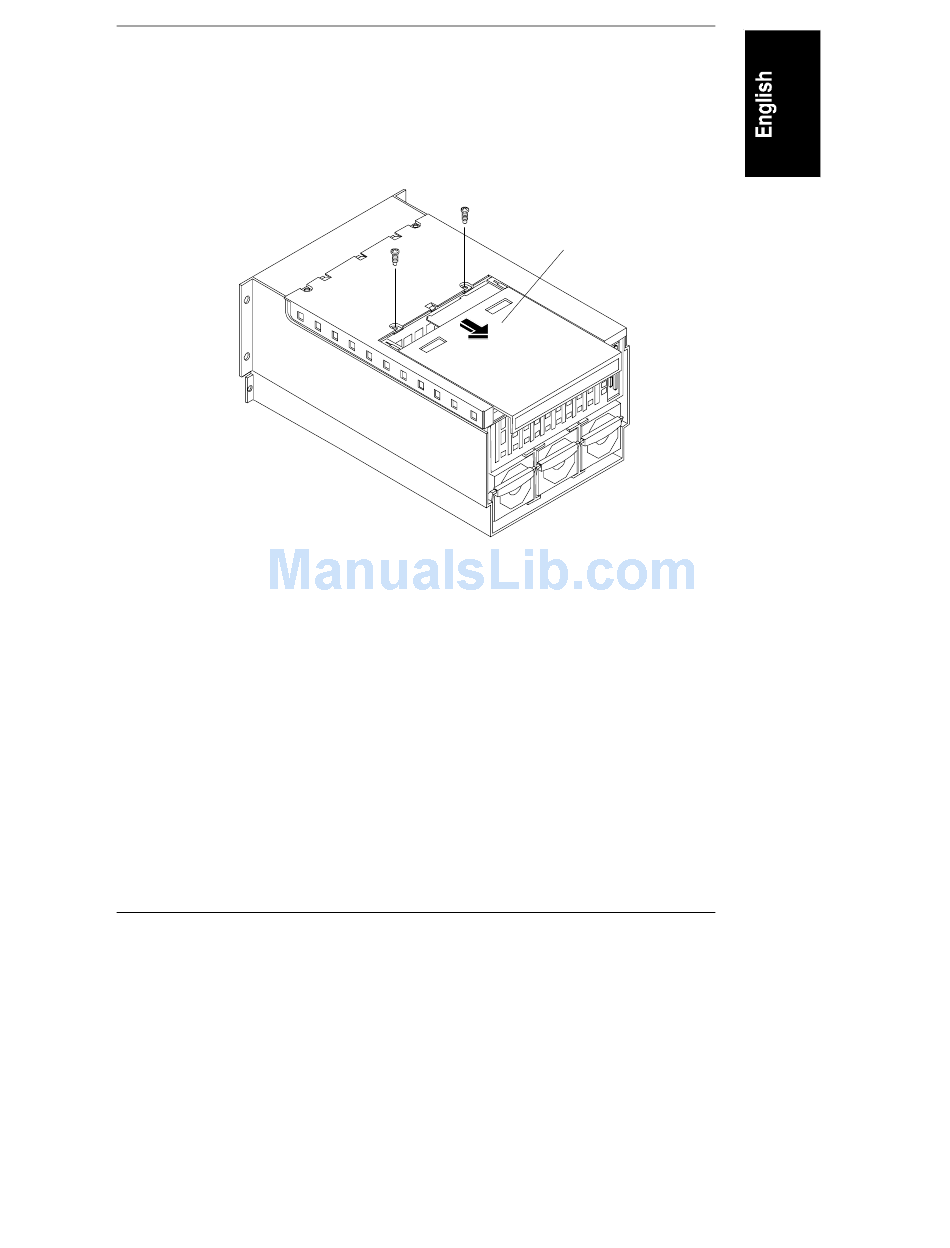

Figure 3-3. Unfastening the PCI Hot Plug Access Panel
25
