Chapter 7

The Processor Baseboard

The HP NetServer's processor baseboard has four processor slots, numbered 1
through 4. It also has six voltage regulator module slots, numberedVRM1
through VRM6. Figure 7-1 shows where to find these slots on the processor
baseboard.
VRM 2
VRM 1
VRM 4
Jumper
Block J31
VRM 3
Processor 1
Processor 2
Processor 3
Processor 4
The first CPU is always in the Processor 1 slot. Add additional CPUs in
ascending slot order. You must also add additional voltage regulator modules
(VRMs) as you add CPUs, again in ascending slot order. There are always VRMs
in slots VRM 1 and VRM 2, so they are added to slots VRM 3, VRM 4, VRM 5,
and VRM 6 as you install new processors.
Table 7-1, later in this chapter, shows the correct number and placement of
VRMs for one, two, three, or four processors.
Front of NetServer

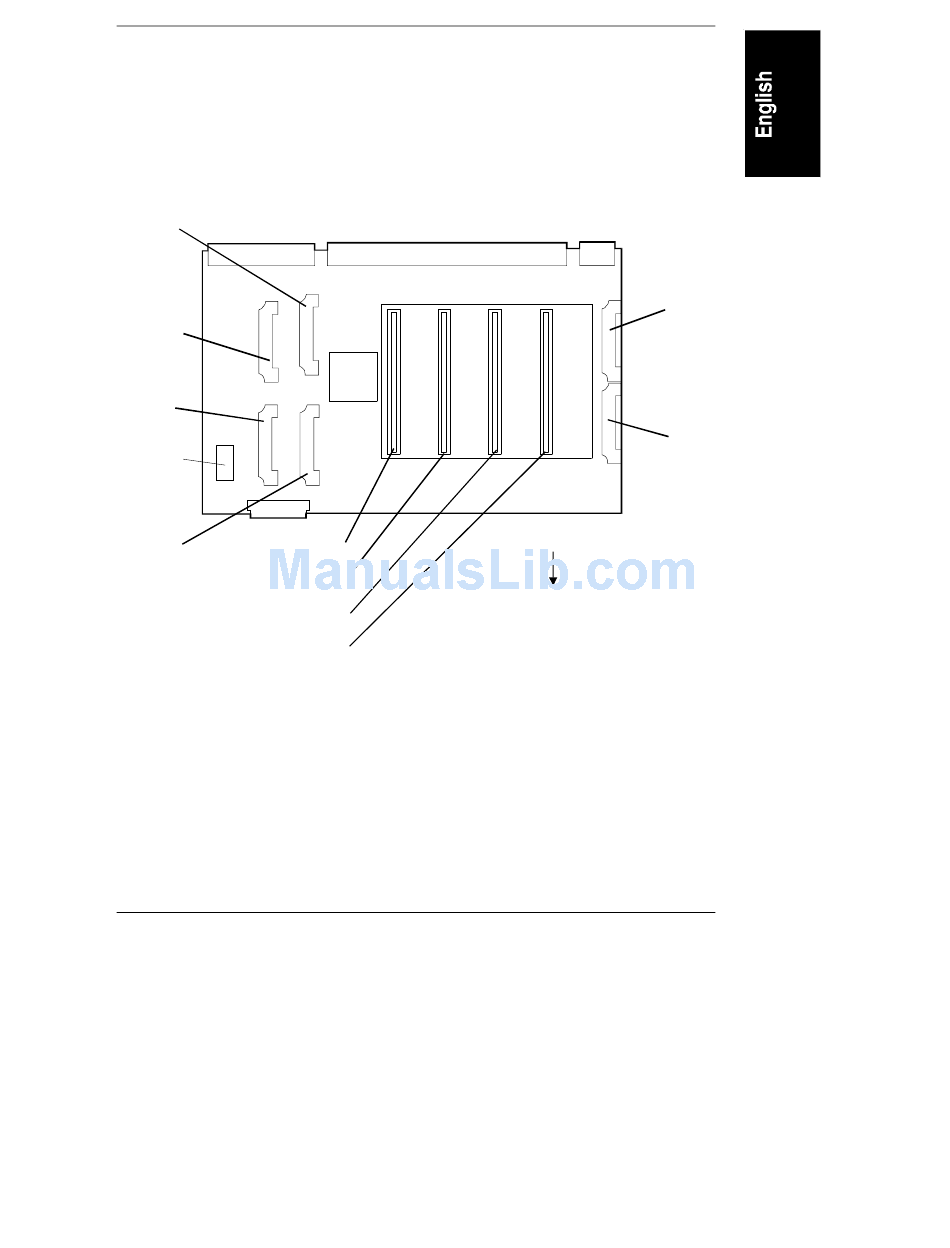

Figure 7-1. Processor Baseboard
Installing Additional Processors
VRM 6
VRM 5
65
