12. On the CPU baseboard, install additional VRMs in the VRM slots. (Table
7-1 tells you how many VRMs to install, and what slots to install them
in.)
Push each VRM firmly into its slot until you hear a click. See Figure 7-7.
NOTE VRM slots 5 and 6 are in a narrow space between the
processor cage and the side of the chassis. For easier access to
these slots, you can temporarily remove the adjacent wall of
the processor cage. Unfasten the two screws which hold the
wall in place, and then lift the wall out. Be sure to reattach the
processor cage wall after you install the VRMs.

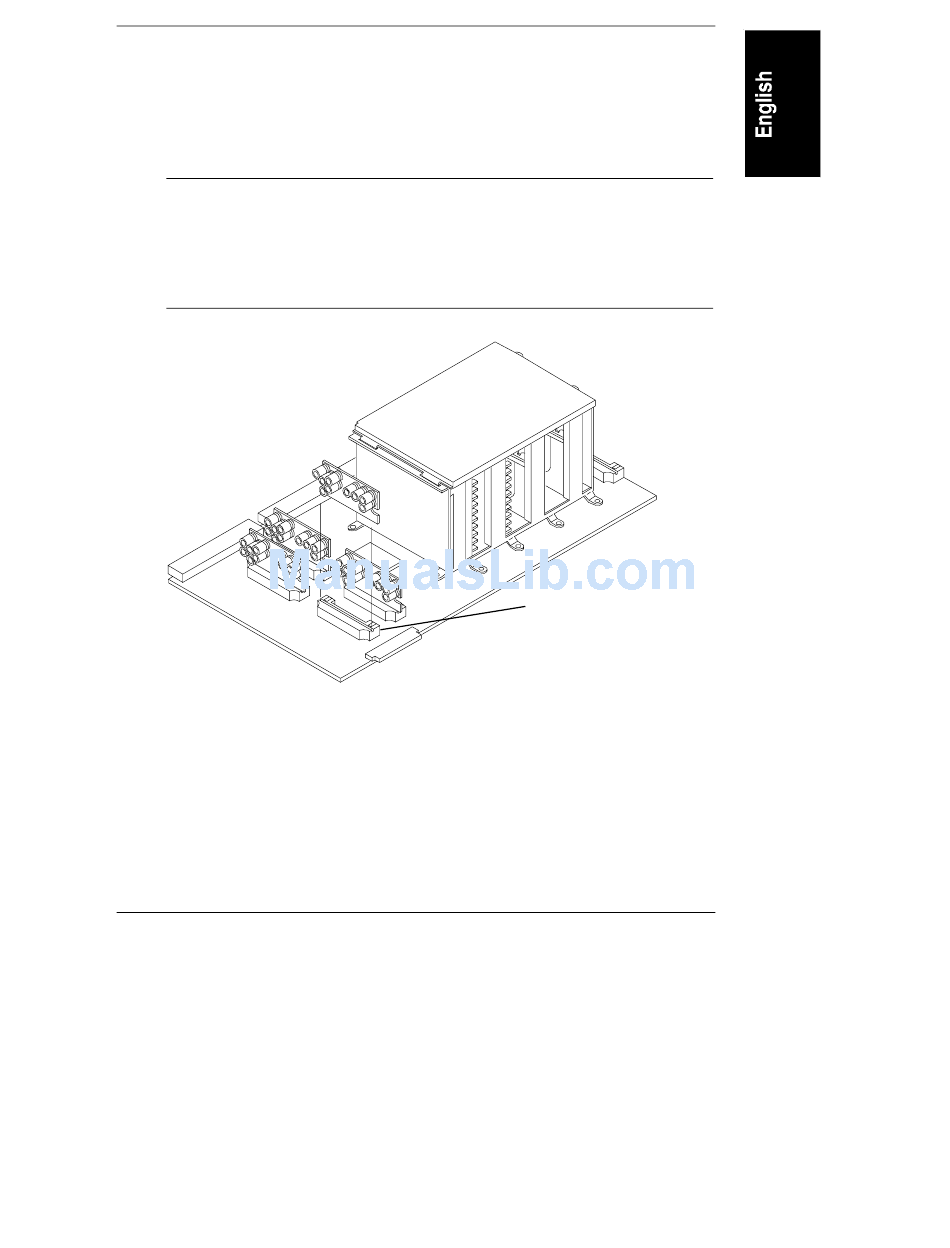

Figure 7-7. Installing a Voltage Regulator Module
Installing Additional Processors
When installing a second
processor, insert an
additional voltage regulator
module in VRM slot 4
73
