Hardware Features

Hardware Features

Front Panel Components and LEDs

Cisco Wide Area Virtualization Engine 574 Hardware Installation Guide
1-2
This section illustrates and describes the front and back panel controls, ports, and
LED indicators on the WAVE-574. It contains the following topics:
Front Panel Components and LEDs, page 1-2
•
Back Panel Components and LEDs, page 1-5
•
Location of Ports and Connectors, page 1-7
•

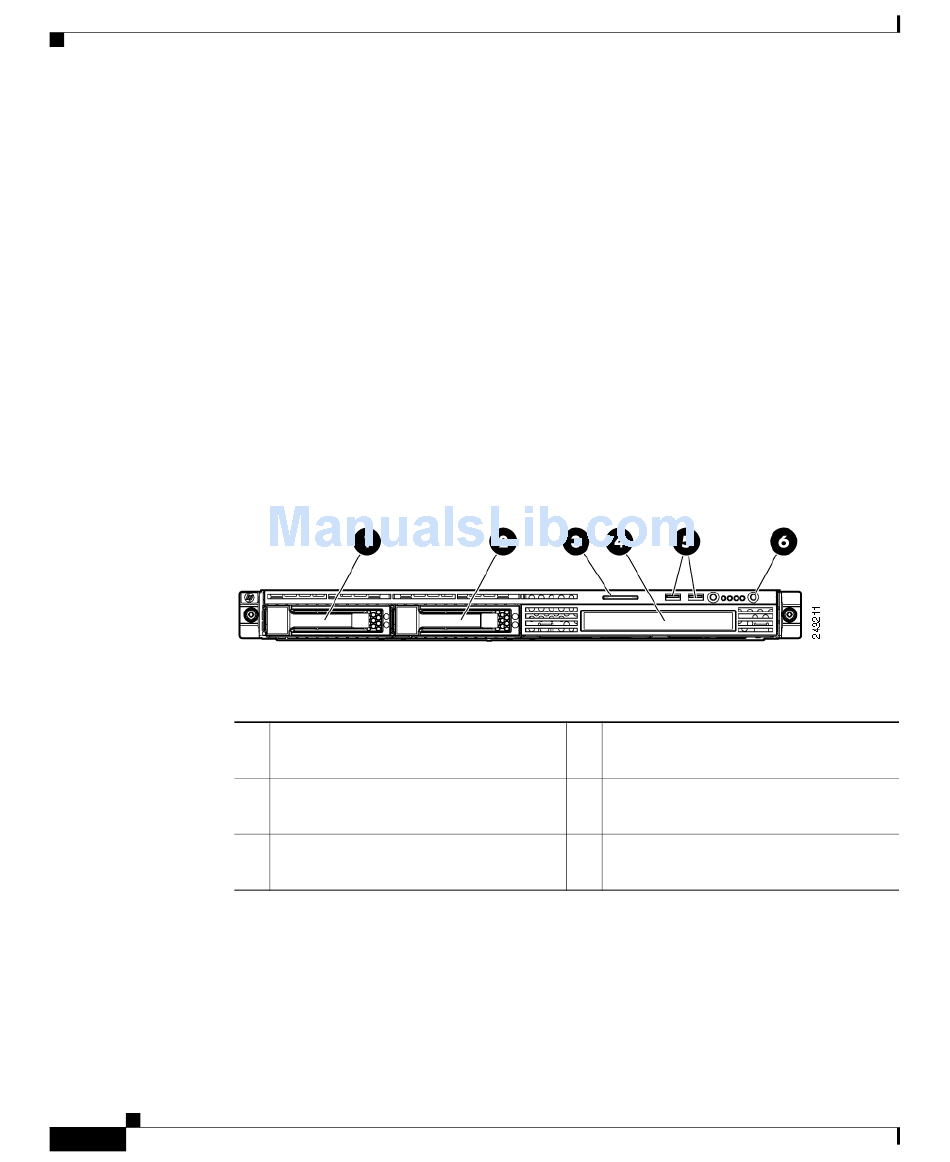

Figure 1-1 shows the front panel components.
Figure 1-1 Front Panel
1 Hard drive bay 1 (SATA device
number 0)
2
Hard drive bay 2 (SATA device
number 1)
3
Serial label pull tab
Chapter 1 Introducing the Cisco Wide Area Virtualization Engine 574
4 DVD/CD-ROM drive bay
5
USB connectors (not used,
unsupported)
6
Power On/Standby button and
system power LED
