Chapter 5 WAVE Inline Network Adapter

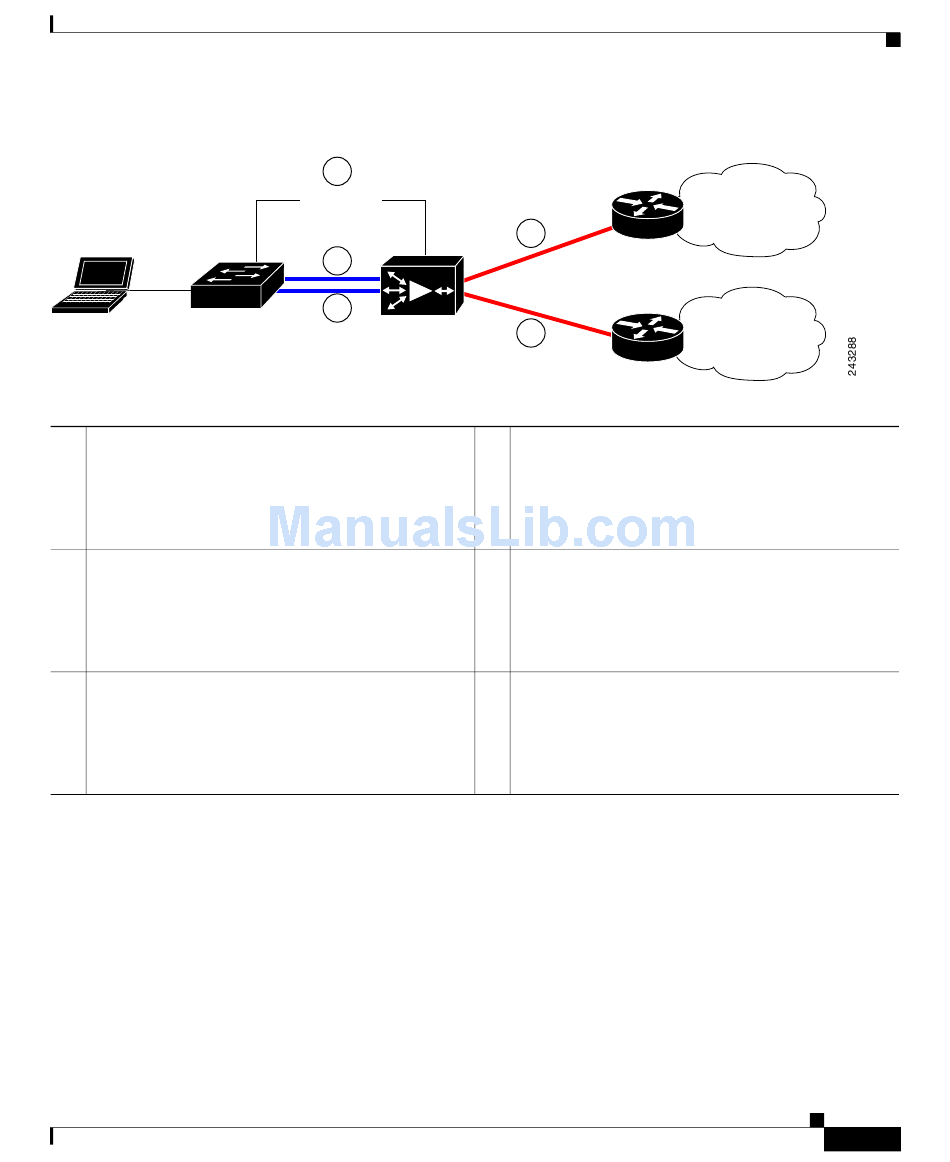

Figure 5-3 Cabling for a Single Inline WAVE Appliance with Redundant WAN Connections
LAN switch
1 Connection: Management
Gigabit Ethernet: 1/0
Cable type: Straight-through (recommended)
3
Connection: WAVE to LAN switch
(using InlineGroup 1/1)
Fast Ethernet: LAN1 (InlinePort 1/1/lan)
Cable type: Straight-through
5
Connection: WAVE to WAN router B
(using InlineGroup 1/1)
Fast Ethernet: WAN1 (InlinePort 1/1/wan)
Cable type: Crossover
OL-17738-01
Installation Scenarios and Cabling Examples for Fast Ethernet Connections
1
MGMT
2
3
WAVE
2
4
Cisco Wide Area Virtualization Engine 574 Hardware Installation Guide
4
Router A
5
Router B
Connection: WAVE to LAN switch
(using InlineGroup 1/0)
Fast Ethernet: LAN0 (InlinePort 1/0/lan)
Cable type: Straight-through
Connection: WAVE to WAN router A
(using InlineGroup 1/0)
Fast Ethernet: WAN0 (InlinePort 1/0/wan)
Cable type: Crossover
WAN
WAN
