Chapter 1 Introducing the Cisco Wide Area Virtualization Engine 574
Table 1-1 Front Panel LEDs
LED
1 DVD/CD-ROM drive
activity LED
2
UID button/LED
3
Internal health LED
OL-17738-01

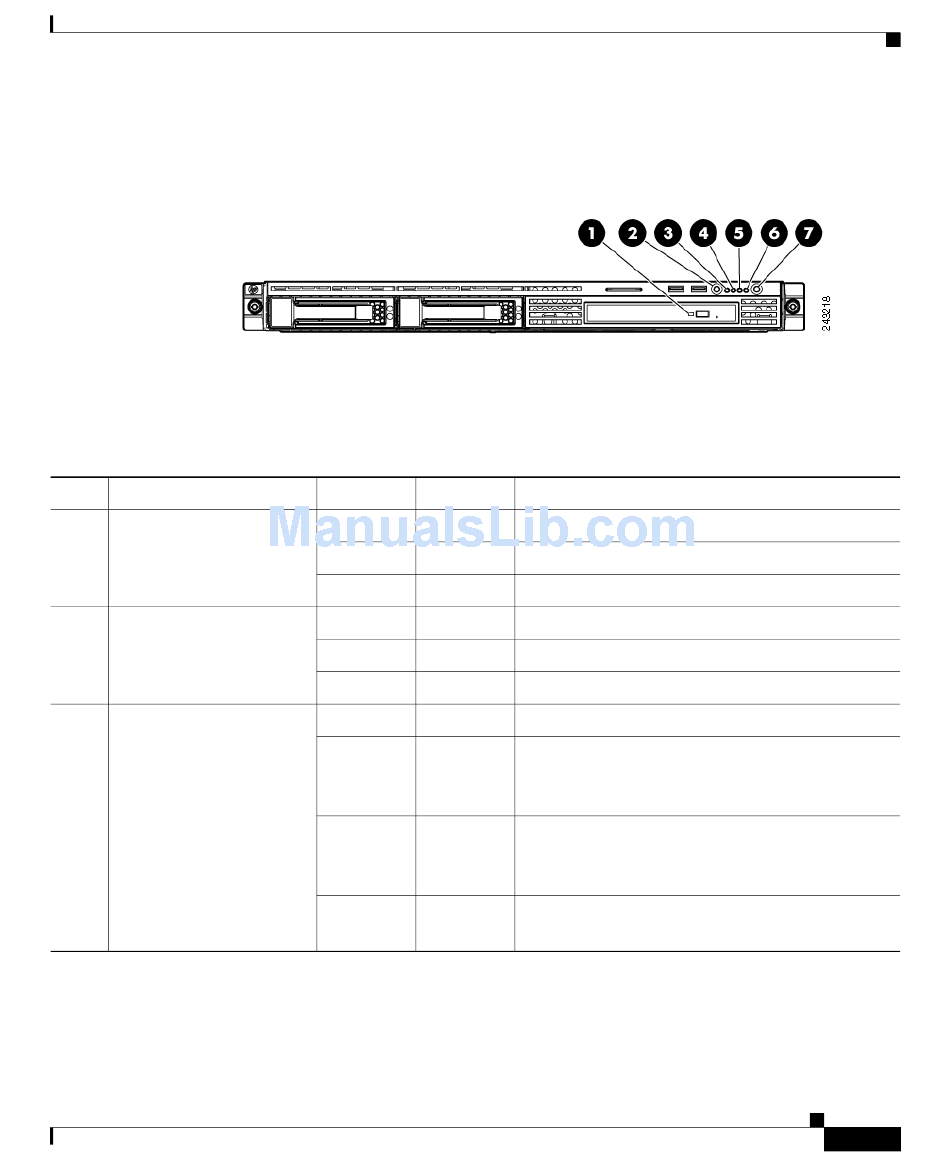

Figure 1-2 shows the front panel LEDs.
Figure 1-2 Front Panel LEDs
Table 1-1 describes the front panel LEDs and their functions.
Color
Green
Amber
—
Blue
Blue
—
Green
Amber
Red
—
Cisco Wide Area Virtualization Engine 574 Hardware Installation Guide
State Description
On Drive activity is normal.
On Drive failure has occurred.
Off No drive activity exists.
On Identification is activated.
Flashing System is being remotely managed.
Off Identification is deactivated.
On System health is normal.
On System health is degraded. A system board
LED is lit inside the appliance. See the
"System Board LEDs" section on page
On System health is critical. A system board
LED is lit inside the appliance. See the
"System Board LEDs" section on page
Off System health is normal (when in standby
mode).
Hardware Features
10.
10.
1-3
