Hardware Features
Console Port Serial Connector
Cisco Wide Area Virtualization Engine 574 Hardware Installation Guide
1-8
If a problem occurs with the primary Ethernet connection, all Ethernet traffic
associated with this primary connection is automatically switched to the
redundant Ethernet connection. If the applicable device drivers are installed,
switching occurs without data loss or user intervention.
Figure 1-5 Ethernet Port Connector
The WAVE-574 appliance has one console port connector (see
the console port connector to access the command-line interface (CLI) for
controlling the WAVE appliance.

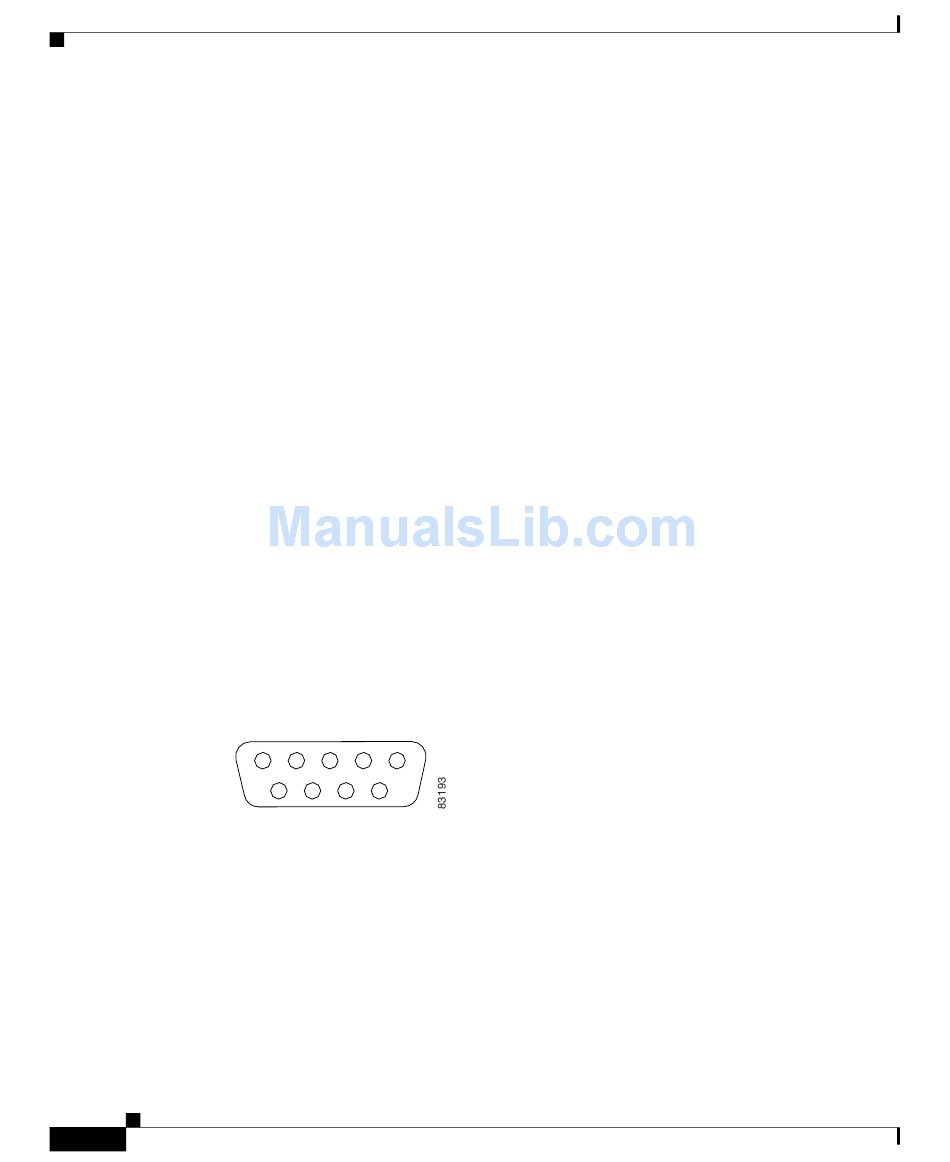

Figure 1-6 Console Port Serial Connector
1 5
6 9
