Chapter 1 Introducing the Cisco Wide Area Virtualization Engine 574

Back Panel Components and LEDs

Note
OL-17738-01

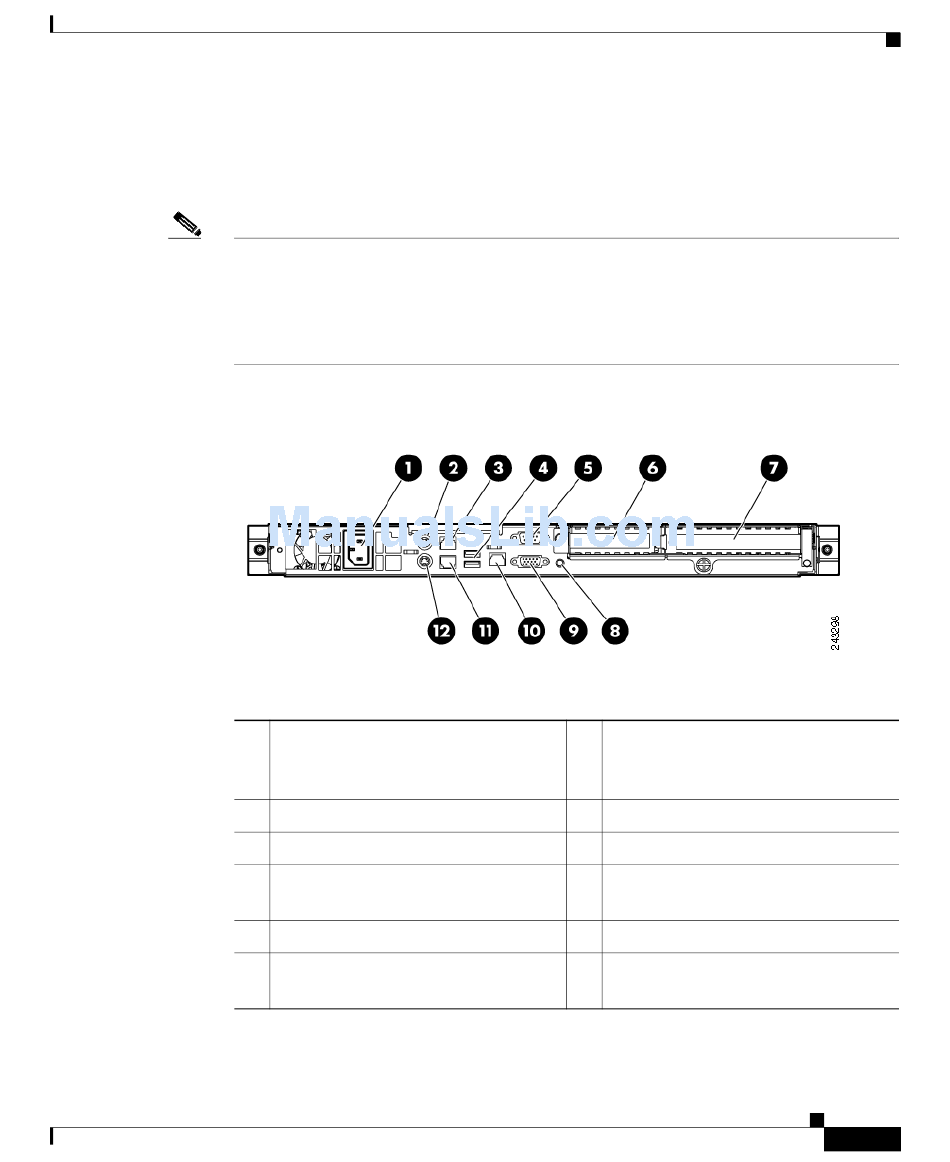

Figure 1-3 shows the back panel components.
You can connect a keyboard to any USB port and connect a monitor to the video
connector to troubleshoot the BIOS boot process. However, video output is for
troubleshooting only during the BIOS boot process. The video output stops
displaying when the serial port becomes active. To monitor the boot process in
normal operation, use the serial console port.
Figure 1-3 Back Panel
1 Power cord connector
2
Mouse connector (unused)
3 10/100/1000 NIC 2 connector
4 USB connectors (not used,
unsupported)
5 Console port (serial connector)
6
PCI Express expansion slot, low
profile, half-length
Cisco Wide Area Virtualization Engine 574 Hardware Installation Guide
Hardware Features
7 Expansion slot for Cisco WAVE
inline adapters (PCI Express
expansion slot, full-length)
8
UID button/LED
9 Video connector (unused)
10 System management port (not
used, unsupported)
11 10/100/1000 NIC 1 connector
12 Keyboard connector (unused)
1-5
