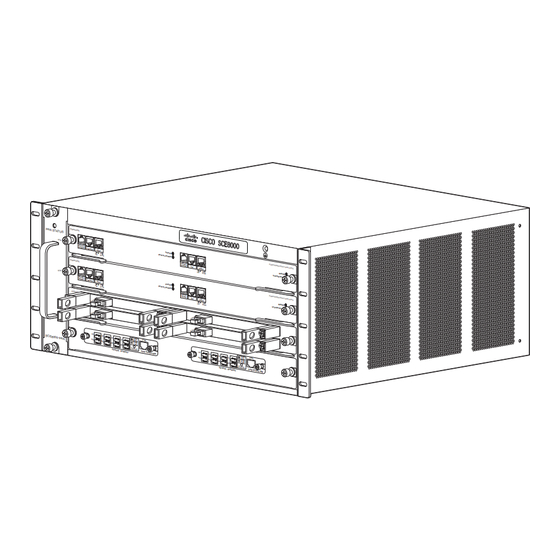

Cisco SCE8000 Installation and
Configuration Guide
Release 3.1.7
November 23, 2010
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: OL-16478-03

Advertisement

Troubleshooting

   Summary of Contents for Cisco SCE8000

  • Page 1

    Cisco SCE8000 Installation and Configuration Guide Release 3.1.7 November 23, 2010 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883 Text Part Number: OL-16478-03...

  • Page 2

    OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Cisco and the Cisco Logo are trademarks of Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries. A listing of Cisco's trademarks can be found at www.cisco.com/go/trademarks.

  • Page 3: Table Of Contents

    The 1-Port 10GBE SPA Interface Module The Cisco SCE8000 Optical Bypass Optical Bypass Functionality Optical Bypass Module Connectivity Optical Bypass Module (OPB-SCE8K) OL-16478-03 C O N T E N T S 2-10 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7...

  • Page 4

    Asymmetric Routing Topology Asymmetric Routing and Other Service Control Capabilities Installing the Cisco SCE8000 Chassis C H A P T E R Preparing for Installation Safety Site Requirements Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 2-11 2-11 2-12 2-13 2-13 2-13...

  • Page 5

    Installing an Optical Bypass Module Connecting the System Ground Required Tools and Equipment Installing the Power Supplies in the Cisco SCE8000 Chassis Connecting the Management Interfaces C H A P T E R How to Set Up the Local Console...

  • Page 6

    How to Display the SCE Platform Inventory Examples for Displaying the SCE Platform Inventory Displaying the SCE Platform Inventory: FRUs Only Displaying the Complete SCE Platform Inventory How to Display the System Uptime Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 6-13 6-14 6-15 6-15...

  • Page 7

    Removing a DC-Input Power Supply Installing a DC-Input Power Supply Removing and Replacing the Fan Assembly OL-16478-03 7-16 7-16 7-16 7-16 7-17 8-11 8-11 8-12 8-12 8-13 8-13 9-11 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Contents 7-17 8-10 8-12 8-12 8-13...

  • Page 8

    Replacing the Optical Bypass Module without Disrupting Traffic on the Link Using Optical Splitters with 10GBE Links C H A P T E R Supported Configurations Unsupported Configuration Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 viii 9-11 9-11 9-12...

  • Page 9: About This Guide

    This guide contains instructions on how to install and run the SCE8000 platform. This guide assumes a basic familiarity with telecommunications equipment and installation procedures.

  • Page 10: Organization

    Troubleshooting, page 8-1 Removal and Replacement Procedures, page 9-1 Using Optical Splitters with 10GBE Links, page A-1 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 About this Guide Description This chapter provides a brief introduction to Cisco Service Control. This chapter provides a hardware overview of the SCE8000 platform.

  • Page 11: Related Publications

    About this Guide Related Publications Your SCE8000 platform and the software running on it contain extensive features and functionality, which are documented in the following resources: Cisco CLI software: • Cisco SCE8000 Software Configuration Guide – Cisco SCE8000 CLI Command Reference –...

  • Page 12: Obtaining Documentation And Submitting A Service Request

    Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 OL-16478-03...

  • Page 13: Chapter 1 Cisco Service Control Overview

    Cisco service control solutions allow the service provider to capture profits from IP services through detailed monitoring, precise, real-time control, and awareness of applications as they are delivered. OL-16478-03 C H A P T E R Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7...

  • Page 14: Service Control For Broadband Service Providers

    Programmability is achieved using the Cisco Service Modeling Language (SML). Programmability allows new services to be deployed quickly and provides an easy upgrade path for network, application, or service growth. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Chapter 1 Cisco Service Control Overview OL-16478-03...

  • Page 15: Sce Platform Description

    Programmable system core for flexible reporting and bandwidth control Transparent network and BSS and OSS integration into existing networks • Subscriber awareness that relates traffic and usage to specific customers • OL-16478-03 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 SCE Platform Description...

  • Page 16: Management And Collection

    Subscriber management • Service Configuration management These management interfaces are designed to comply with common management standards and to integrate easily with existing OSS infrastructure Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 PWR A PWR B STATUS MNG 1...

  • Page 17: Network Management

    4xGB E 1000 ACTIVE 10/100/ 1000 LINK RX LINK RX LINK RX GBE-1 LINE GBE-2 SUB LINE/CASCA DE NET SCE platform Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Management and Collection Provisioning system Subscriber Manager DHCP or RADIUS Router...

  • Page 18: Service Configuration Management

    Subscriber Usage RDRs—Records generated per subscriber, describing the traffic generated by that • subscriber for a defined interval. Link RDRs—Records generated per link, describing the traffic carried on the link for a defined • interval. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Chapter 1 Cisco Service Control Overview OL-16478-03...

  • Page 19: Introduction To The Cisco Sce8000 Platform

    Number of Ports Number of Links The Cisco SCE8000 is a transparent element with 10GBE links service throughput. It can be installed inline in the network where the entire traffic passes through it or in receive-only mode where it receives replication of the traffic through SPAN ports or optical splitters.

  • Page 20: Service Control Module (sce8000-scm-e)

    Service Control Module (SCE8000-SCM-E) The Cisco SCE8000 contains one or two SCE8000-SCMs located in slots#1 and #2 (the top two slots). The Service Control module contains ports and LEDs as shown in the following figure and tables.

  • Page 21: C H A P T E R 2 Introduction To The Cisco Sce8000 Platform

    Steady amber — Only one power supply is functioning normally. • Unlit — No power from either power supply. On a slave SCE8000-SMC_E module (in the second slot), this LED is always off. The Status LED indicates the operational status of the Cisco SCE8000 system, as follows: Unlit —...

  • Page 22: Introduction To Sips And Spas

    Steady green — Port is set to 100 Mbps Steady amber — Port is set to 1000 Mbps On a slave SCE8000-SMC_E module (in the second slot), this LED is always off. Chapter 2 Introduction to the Cisco SCE8000 Platform...

  • Page 23: Specifying The Sip Subslot Location For A Spa

    Chapter 2 Introduction to the Cisco SCE8000 Platform Specifying the SIP Subslot Location for a SPA Cisco SCE8000-SIP subslots begin their numbering with “0” and have a horizontal orientation. Figure 2-3 shows the subslot numbering for the Cisco SCE8000-SIP. The Cisco SCE8000-SIP supports four subslots for the installation of SPAs, as follows: SIP subslot 0—Top–left subslot...

  • Page 24: Modular Optics

    See the label on the XFP for technology type and model. XFP dimensions are: Height 12.5 mm • Width 18.35 mm • Length 71.1mm • Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 10GBE Small Form-factor Pluggable (XFP0) Chapter 2 Introduction to the Cisco SCE8000 Platform OL-16478-03...

  • Page 25: The Sce8000-sip

    Status The 1-Port 10GBE SPA Interface Module The SCE8000-SIP is installed in slot #3 of the Cisco SCE8000 chassis. It hosts up to four single-width, single-height 1-Port 10GBE SPA interface modules, but in the Cisco SCE8000, it must be configured with either two 1-Port 10GBE SPAs (in the top two subslots) or four 1-Port 10GBE SPAs, to provide interfaces for either one or two complete traffic links.

  • Page 26: The Cisco Sce8000 Optical Bypass

    Optical Bypass Module (OPB-SCE8K), page 2-10 • The Cisco SCE8000 platform optical bypass module preserves the service provider 10GBE links under all circumstances. At power failure the bypass is automatically activated. It can also be activated by the Cisco SCE8000 software.

  • Page 27: Optical Bypass Functionality

    • when both of them fail. In a case where the Cisco SCE8000 platform must be replaced, it is possible to remove the bypass modules from the SCE8000 chassis without disconnecting them from the network and then reinstall them in the new SCE platform, so that traffic links are preserved even in a case of complete failure and replacement of the Cisco SCE8000 platform.

  • Page 28

    OPB-SCE8K-MM supports Multi-Mode optics and should be used with SCE8000 equipped with Multi-Mode optics. The optical bypass module is installed either internally, in slot #4 of the Cisco SCE8000 chassis or in an external mounting panel in the rack. Up to two optical bypass modules can be mounted internally, supporting inline insertion into two links.

  • Page 29: Optical Bypass Module Specifications

    SPA -1X1 0GE -L-V CT RL SPA -1X1 0GE -L-V ST AT US OP B- SC E8 K- MM Removing and Replacing the Fan Assembly, page Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 The Cisco SCE8000 Optical Bypass 9-11. 2-11...

  • Page 30: Power Supplies

    The Cisco SCE8000 Optical Bypass Power Supplies The Cisco SCE8000 platform supports redundant AC- or DC-input power supplies. The following power supplies are available for the Cisco SCE8000 platform: • 2700 W DC input (PWR-2700-DC/4): uses an external terminal block on the back side of the chassis for input power connection.

  • Page 31: Power Supply Cooling

    Checking the Shipping Container Contents Use the Cisco SCE8000 Component List to check the contents of the Cisco SCE8000 platform shipping container. Do not discard the shipping container when you unpack the Cisco SCE8000. Flatten the shipping cartons and store them with the pallet.

  • Page 32: Cisco Sce8000 Installation Checklist

    Power cables Grounding kit 69-0815-01 Optical Bypass module kit Cisco does not ship the entire Cisco SCE8000 documentation set automatically with each system. You Note must specifically order the documentation as part of the sales order. If you ordered documentation and did not receive it, we will ship the documents to you within 24 hours.

  • Page 33

    Network interface cables and devices connected System power turned on System boot complete (Status LED is on) 10 GBE line ports operational Correct hardware configuration displayed after system banner appears Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 2-15 OL-16478-03...

  • Page 34

    Chapter 2 Introduction to the Cisco SCE8000 Platform Cisco SCE8000 Installation Checklist Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 2-16 OL-16478-03...

  • Page 35: The Cisco Sce8000 Platform

    • The Cisco SCE8000 Platform The Cisco SCE8000 is a solution for dual links with load sharing and asymmetrical routing and support for fail-over between two SCE platforms. The Cisco SCE8000 is built to support wire speed processing of full-duplex 10GBE streams. The Cisco SCE8000 can, therefore, be deployed in a multi-link environment, in several different topologies.

  • Page 36: C H A P T E R 3 Cisco Sce8000 Topology And Topology-related Parameters

    Must the system be designed to guarantee uninterrupted Cisco SCE8000 functionality? If so, there must be a backup Cisco SCE8000 platform (or a backup for each platform in an MGSCP topology) to assume operation in case of failure of the primary device.

  • Page 37: Physical Topologies

    Multi-Gigabit Service Control Platform (MGSCP) Topology, page 3-7 • SCE8000 Interface Numbering The following diagram shows the numbering of the SCE8000 interfaces as indicated in the topology diagrams in this chapter. The interface numbering is explained as follows: The first digit is the slot number (always 3).

  • Page 38: Single Link: Inline Topology

    Typically, the Cisco SCE8000 is connected in a full duplex 10GBE link between two devices (Router, BRAS, etc.). When the Cisco SCE8000 is installed as an inline installation, it physically resides on the data link between the subscribers and the network.

  • Page 39: Single Link: Receive-only Topology

    SPAN-ports destinations. Dual Link: Receive-Only Topology In this topology, one Cisco SCE8000 is connected in receive-only mode to two full duplex, 10 Gig links using optical splitters. If the two links are load-shared, asymmetrical routing might occur, and some of the flows may be split, i.e.

  • Page 40: Dual Cisco Sce8000 Topology (cascade)

    Dual Cisco SCE8000 Topology (Cascade) In this topology, two cascaded Cisco SCE8000s are used. This allows a fail-over solution, where in case of a failure of one Cisco SCE8000 the functionality that the Cisco SCE8000 provides is preserved by the redundant platform.

  • Page 41: Multi-gigabit Service Control Platform (mgscp) Topology

    In addition, it is possible to configure the Cisco SCE8000 to use the external optical bypass device • so that in the event of any failure of the Cisco SCE8000, it will be used to provide link continuity. This ensures 100% link continuity at the expense of providing asymmetric routing functionality.

  • Page 42: Type Of Sce Platform Redundancy

    Redundant Cisco 7600 Series Router Two Cisco 7600 Series routers can be used to provide network redundancy. In this topology, one link on each Cisco SCE8000 platform is connected to each router. Therefore, one SCE platform is required for each link.

  • Page 43: Link Continuity

    The internal bypass mechanism of the Cisco SCE8000 allows traffic to continue to flow, if desired, even if the device itself is not fully functioning. In addition, the Cisco SCE8000 is designed with the ability to control up to two external optical bypass devices (one per link). This is needed because the internal bypass mechanism cannot maintain traffic flow in all cases.

  • Page 44

    Link Continuity Figure 3-9 Subscriber 1 Subscriber 2 If the SCE8000 platform fails, traffic flows through the optical bypass module, bypassing the SCE8000, so that traffic on the link is maintained Figure 3-10 Subscriber 1 Subscriber 2 In cascade configuration, installation of the optical bypass module is required Note This optical bypass module can be added to link without altering the basic characteristics of the topology.

  • Page 45: Topology-related Parameters

    On-failure — This parameter determines whether the system cuts the traffic or bypasses it when the • Cisco SCE8000 either has failed or is booting. Traffic bypass can be achieved either through the external optical bypass device or through the internal bypass mechanism of the SPA interface processor.

  • Page 46: Physically Connected Links Parameter

    Note that these defaults apply only when both devices are started together. However, if the primary Cisco SCE8000 fails and then recovers, it will not revert to active status, but remains in standby status, while the secondary device remains active On-Failure Mode Parameter The on-failure mode parameter configures the action taken by a failed box when a failure is detected.

  • Page 47: Asymmetric Routing Topology

    Cisco SCE8000 Topology and Topology-Related Parameters In a single Cisco SCE8000 topology, the value of this parameter is determined by whether or not the link can be completely cut when the Cisco SCE8000 fails, or whether traffic flow should continue across the link in spite of platform failure.

  • Page 48

    Chapter 3 Cisco SCE8000 Topology and Topology-Related Parameters Asymmetric Routing Topology Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 3-14 OL-16478-03...

  • Page 49: Chapter 4 Installing The Cisco Sce8000 Chassis

    This chapter describes how to install a Cisco SCE8000 chassis. Warning Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information for the Cisco SCE8000 Platform. This guide contains important safety information you should know before working with the system. Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

  • Page 50: Preparing For Installation

    Warning installation. Install only in accordance with national and local wiring regulations. Site Requirements This section provides site power requirements for the Cisco SCE8000 chassis. You should verify the site power prior to installation. Preventing Electrostatic Discharge Damage, page 4-3 •...

  • Page 51: Preventing Electrostatic Discharge Damage

    Airflow Intake Right side OL-16478-03 Chassis Airflow Requirements Airflow Exhaust Air Filter Option Left side Not applicable Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Preparing for Installation Minimum Minimum Horizontal Clearance (walls) Separation 6 in (15 cm) 12 in (30.5)

  • Page 52: Power Requirements

    Cisco SCE8000, which can have substantial current draw fluctuations due to bursty data traffic patterns. Power Connection Guidelines This section provides the guidelines for connecting the Cisco SCE8000 AC and DC power supplies to the site power source. •...

  • Page 53: Ac-powered Systems

    For North America, the circuit breaker should be rated at 20A. For everywhere else, the circuit breaker should be sized according to the input current rating and local or national code requirements. 50/60 Hz (nominal) (±3% for full range) Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Preparing for Installation...

  • Page 54

    *The PDU power cable is designed for users who power their switch from a PDU. The end of the cable that plugs into the Cisco SCE8000 chassis has a C19 connector; the other end of the cable that plugs into the PDU has a C20 connector.

  • Page 55

    CEE (7) VII (16A) Hot EN60320/C19 (20A) CAB-AC16A-CH= Cordset rating: 16A, 250V Length: 14 ft 0 in. (4.26 m) Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Preparing for Installation North America (Locking) (1900W power supply) NEMA L6-20 plug (20A, 250V)

  • Page 56

    Preparing for Installation Figure 4-3 Figure 4-4 Figure 4-5 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 CAB-AC-2500W-EU= Cordset rating: 16 A, 250 V Length: 14 ft 0 in. (4.26 m) Plug: CEE 7/7 CAB-AC-2500W-INT= Cordset rating: 16 A, 250 V Length: 14 ft 0 in.

  • Page 57

    Figure 4-6 Figure 4-7 Figure 4-8 Plug: NEMA 5-20 OL-16478-03 CAB-AC-2500W-US1= CAB-AC-C6K-TWLK= CAB-7513AC= Cordset rating: 20 A, 125 V Length: 14 ft 0 in. (4.26 m) Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Preparing for Installation Connector: IEC 60320 C19...

  • Page 58

    Plug: IEC 884 Figure 4-10 Plug: SEV 5934-2 Type 23 Figure 4-11 Plug: AU20S3 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 4-10 CAB-7513ACSA= Cordset rating: 16 A, 250 V Length: 14 ft 0 in. (4.26 m) CAB-ACS-16= Cordset rating: 16 A, 250 V Length: 8 ft 2 in.

  • Page 59: Dc-powered Systems

    The DC supplies each have the provision for a dual connection to the power source in order to permit • high-power operation without exceeding current ratings. For the SCE8000, it is not necessary to connect both of these inputs to DC power sources; it is sufficient to connect only the '1' connections.

  • Page 60: Site Planning Checklist

    DC power sources; it is sufficient to connect only the '1' connections. Site Planning Checklist Table 2-6 lists the site planning activities that you should perform prior to installing the Cisco SCE8000 chassis. Completing each activity helps ensure a successful installation.

  • Page 61: Installing The Cisco Sce8000 Chassis In The Rack

    Site wiring RFI levels Installing the Cisco SCE8000 Chassis in the Rack This section describes how to install a Cisco SCE8000 platform in a rack. For first-time installations, perform the procedures in the following sections in the order listed: •...

  • Page 62: Unpacking The Cisco Sce8000 Chassis

    Unpacking the Cisco SCE8000 Chassis Do not discard the shipping container when you unpack the Cisco SCE8000. Flatten the shipping cartons and store them with the pallet. You will need these containers if you need to move or ship the Cisco SCE8000 in the future.

  • Page 63: Required Tools

    MA STE R SYS TEM PO WE R SPA -1X1 0GE -L-V SPA -1X1 0GE -L-V SPA -1X1 0GE -L-V SPA -1X1 0GE -L-V Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Installing the Cisco SCE8000 Chassis in the Rack 4-15...

  • Page 64: Installing The Chassis In The Rack

    (such as power supplies, fans, or cards); these types of handles are not designed to support the weight of the unit. Lift the unit only by grasping the chassis underneath its lower edge. To install the Cisco SCE8000 chassis in the equipment rack, perform these steps: Step 1 Position the chassis in the rack as follows: •...

  • Page 65: Installing An Optical Bypass Module

    Installing an Optical Bypass Module There are two installation options for the external bypass modules: Chassis mount panel—This panel is mounted on slot #4 of the SCE8000 chassis. It hosts two optical • bypass modules, which will serve the two traffic links supported by one Cisco SCE8000 chassis.

  • Page 66: Connecting The System Ground

    Figure 4-15 Connecting the System Ground This section describes how to connect a system (earth) ground to the Cisco SCE8000 chassis. You must connect the system ground on both AC- and DC-powered systems to an earth ground if this Note equipment is installed in a US or European Central Office.

  • Page 67: Required Tools And Equipment

    Installing the Cisco SCE8000 Chassis Two threaded M4 holes are provided on the chassis frame to attach the ground cable. You must complete this procedure before connecting system power or turning on the Cisco SCE8000 chassis. Required Tools and Equipment To connect the system ground, you need the following tools and materials: One grounding lug.

  • Page 68: Installing The Power Supplies In The Cisco Sce8000 Chassis

    Cisco SCE8000 chassis. Installing the Power Supplies in the Cisco SCE8000 Chassis The SCE8000 chassis is shipped with the power supplies (AC or DC) already installed. Should it be necessary to install a power supply module, refer to page 9-3.

  • Page 69: Chapter 5 Connecting The Management Interfaces

    How to Set Up the Local Console Even if you will be managing the Cisco SCE8000 from a remote location, you must first connect the unit to a local console and configure the initial settings for the Cisco SCE8000 to support remote management.

  • Page 70: Initial Setup Parameters

    Initial Setup Parameters Plug the RS-232 serial cable provided with the Cisco SCE8000 into the CON port on the front panel of Step 1 the SCE8000-SCM-E. (See item #2 in Figure 5-1 Make sure that you push on the RJ-45 connector (attached to the RS-232 serial cable) until you hear a “click”, which indicates that the connector is fully inserted and secured in the receptacle.

  • Page 71

    Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Initial Setup Parameters configuration command mode GigabitEthernet Interface Configuration Global Configuration Global Configuration...

  • Page 72: Connecting The Management Interface

    • How to Cable the Management Port The SCE8000-SCM-E has one GBE port that is used as the management port, located in slot# 1 of the Cisco SCE8000 chassis, and labeled Port1. Plug the Ethernet cable provided (with attached RJ-45 connector) into Port 1on the front panel of the Step 1 SCE8000-SCM-E.

  • Page 73: Connecting The Management Interface

    How to Verify Management Interface Connectivity If the Cisco SCE8000 platform has been powered up, test now to verify that connectivity has been established between the Cisco SCE8000 and the remote management host. If the Cisco SCE8000 platform is not powered up, perform this step after starting the Cisco SCE8000 platform.

  • Page 74

    64 bytes from host (10.10.10.20): icmp_seq=2. time=0. ms 64 bytes from host (10.10.10.20): icmp_seq=3. time=0. ms ----10.10.10.20 PING Statistics---- 4 packets transmitted, 4 packets received, 0% packet loss round-trip (ms) min/avg/max = 0/0/0 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 OL-16478-03...

  • Page 75: Connecting The Line Ports To The Network

    Note When installing a cascaded system, it is extremely important to follow the sequence of procedures outlined in the section When installing an External Optical Bypass module, the Cisco SCE8000 line ports are connected to the Note module. See Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module, page 6-11 for complete instructions.

  • Page 76: Single Link: Inline Topology

    Single Link: Receive-only Topology In this topology, an optical splitter unit resides physically on the 10 GBE link that the Cisco SCE8000 should monitor. The optical splitter unit is connected to the Cisco SCE8000 Rx links only. For each link monitored, there will be two Rx connections to the Cisco SCE8000, one for each direction of traffic flow in the link.

  • Page 77: Dual Link: Two Cisco Sce8000s Topology

    Cascaded Systems, page When two Cisco SCE8000s are used, the ports 3/0/0 and 3/1/0 in each Cisco SCE8000 are connected to the links, while ports 3/2/0 and 3/3/0 are the cascade ports that are used for communicating between the...

  • Page 78: Multi-gigabit Service Control Platforms (mgscp) Topologies

    In this topology, multiple Cisco SCE 8000 platforms are connected to a Cisco 7600 Series router used as a load-balancer (“dispatcher”) between the platforms. Traffic enters the router, is distributed between the Cisco SCE8000 platforms by the router EtherChannel, and returns to the router to be forwarded to its original destination.

  • Page 79

    Link 4. S=1/5, N=3/4 Single Router MGSCP Connectivity Four links would require two Cisco SCE8000 platforms. Connect the ordered pairs, each pair of EC ports to a pair of Subscriber/Network ports in a Cisco SCE8000 platform: Cisco SCE8000 #1: Links 1 and 2 •...

  • Page 80

    Link 5 (standby). S=1/5, N=3/4 • Link 6 (standby). S= 2/3, N=4/4 • If Cisco SCE8000 #3 is the redundant platform, Links 5 &6 would be connected to it and the actual connections might look like this: S=0/1, Cisco SCE8000 #1 3/0/0 •...

  • Page 81

    The standby ports would be assigned to the links as follows: Link 5 (standby). S=1/5, N=3/4 • If Cisco SCE8000 #5 is the redundant platform, Link 5 from both routers would be connected to it and the actual connections might look like this: Router 1: S=0/1, Cisco SCE8000 #1 3/0/0 •...

  • Page 82: The Optical Bypass Module

    Note Since the optic bypass module will directly connect the subscriber and network side optic paths when bypassing the SCE8000, the subscriber and network optic links must be of the same type (single-mode or multi-mode) and wavelength. Invisible laser radiation may be emitted from disconnected fibers or connectors. Avoid exposure to Warning radiation and do not stare into open aperture.

  • Page 83: Optical Bypass Module Connectivity

    Cabling the 10GBE Line Interface Ports Note When installing an External Optical Bypass module, the Cisco SCE8000 line ports are connected to the module. See Cabling the 10GBE Line Interface Ports: Using the External Optical Bypass Module, page 6-11 for complete instructions.

  • Page 84: Fiber Specifications

    How to Cable the 10GBE Line Interface Ports Take the appropriate fiber optic cable (see Step 1 appropriate port on the 10GBE interface on the SPA module in slot #3 of the Cisco SCE8000. (See Figure 6-1 below.) Make sure to push on the connector until you hear a click, which indicates that the connector is fully inserted and secured in the receptacle.

  • Page 85: Cabling The 10gbe Line Interface Ports: Using The External Optical Bypass Module

    Cabling the 10GBE Interface SC E8 00 0- SI P External Optical Bypass Module Line Interfaces Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Cabling the 10GBE Line Interface Ports SP A -1 X1 0G E- L- V2 SP A -1 X1 0G E- L- V2 for specific connectivity.

  • Page 86

    Using a cable with LC connectors on both ends, plug one end into the appropriate port (C or D) on the Step 2 external bypass module and the other end into the appropriate 10GBE interface in slot #3 of the SCE8000 chassis.

  • Page 87: Testing Connectivity: Examining Link Leds And Counters

    Testing Connectivity: Examining Link LEDs and Counters If the Cisco SCE8000 platform has been powered up, test now to verify that connectivity has been established on all links. If the Cisco SCE8000 platform is not powered up, perform this step after starting the Cisco SCE8000 platform.

  • Page 88: How To Load And Activate A Service Control Application

    How to View the User Log Counters You should view the user log for errors that occurred during the installation process. At the SCE8000# prompt, type show logger device User-File-Log counters and press Enter. Step 1 SCE8000#show logger device user-file-log counters...

  • Page 89: Cascaded Systems

    Use the show interface linecard 0 connection-mode command. If you want to start with bypass, change the link mode to your required mode in both Cisco SCE8000 Step 6 platforms on both links. The bypass mode will be applied only to the active Cisco SCE8000 platform.

  • Page 90: Cli Commands For Cascaded Systems

    Cisco SCE8000 platform auto-negotiate with it and start working (when working inline). (See When full control is needed, change the link mode on both Cisco SCE8000 platforms on both links to Step 10 ‘forwarding’.

  • Page 91

    • behavior upon failure of the SCE platform • • primary/secondary From the Cisco SCE8000(config if)# prompt, type connection-mode inline-cascade Step 1 physically-connected-links (link-0|link-1) priority (primary|secondary) on-failure (external-bypass|bypass|cutoff) and press Enter. EXAMPLE 1 Use the following command to configure the primary SCE platform in a two-SCE platform inline topology.

  • Page 92: Monitoring The System

    From the Cisco SCE8000# prompt, type show interface linecard 0 connection-mode and press Enter. Step 1 How to View the Current Link Mode From the Cisco SCE8000# prompt, type show interface linecard 0 link mode and press Enter. Step 1 How to View the Current Link Mappings...

  • Page 93: Starting The Cisco Sce8000 Platform

    Basic Cisco SCE8000 Platform Operations This chapter describes how to start up the Cisco SCE8000 platform, reboot, and shutdown. It also describes how to manage configurations. Starting the Cisco SCE8000 Platform, page 7-1 • Managing Cisco SCE8000 Configurations, page 7-5 •...

  • Page 94: C H A P T E R 7 Basic Cisco Sce8000 Platform Operations

    The Status LED should be a constant amber while booting. After a successful boot, the Status LED • is steady green. It takes a several minutes for the Cisco SCE8000 to boot and for the status LED to change from amber Note to green.

  • Page 95: Final Tests

    • Verifying Operational Status After all the ports are connected, verify that the Cisco SCE8000 is not in a Warning state. On the front panel of the Service Control module, examine the Status LED; it should be green. Step 1...

  • Page 96: Viewing The Ten Gigabit Ethernet Counters

    In an inline topology, you can monitor traffic via the platform counters for both the Rx and Tx connections. The counters increase as packets flow through the Cisco SCE8000 for both Rx and Tx. However, in receive-only topologies, the counters for the Tx do not increment, as the SCE8000 is only monitoring traffic, and not re-transmitting it Step 1 At the Cisco SCE8000# prompt, type show interface TenGigabitEthernet 3/ baynumber /0 counters.

  • Page 97: Managing Cisco Sce8000 Configurations

    Basic Cisco SCE8000 Platform Operations Managing Cisco SCE8000 Configurations After you have installed your SCE8000 platform hardware, checked all external connections, turned on the system power, and allowed the system to boot up, you are ready to install the Service Control application.

  • Page 98: Saving Or Changing The Configuration Settings

    For backup purposes, the old startup-config file is saved under the directory: . Refer /system/prevconf Restoring a Previous Configuration, page 7-8 for an explanation on how to restore a previous configuration. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 OL-16478-03...

  • Page 99: Example For Saving Or Changing The Configuration Settings

    TenGigabitEthernet 3/2/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/3/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" exit OL-16478-03 2008 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Managing Cisco SCE8000 Configurations...

  • Page 100: Restoring A Previous Configuration

    Type copy /system/config.tx1 /system/config.txt. Step 3 The system sets the startup configuration to the configuration from config.tx1. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 . Up to nine versions of the startup configuration file are saved, namely , where is the most recently saved file.

  • Page 101: Example For Restoring A Previous Configuration

    "com.pcube.management.framework.install.activation.date" "Sun May 11 08:44:04 GMT+00:00 2008" flow-filter partition name "ignore_filter" first-rule 4 num-rules 32 flow-filter partition name "udpPortsToOpenBySw" first-rule 40 num-rules 21 SCE#copy /system/config.tx1 /system/config.txt OL-16478-03 2008 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Managing Cisco SCE8000 Configurations...

  • Page 102: How To Display The Sce Platform Version Information

    : P2 #cpus : 3 cpu-0 SVR : 0x80900121 cpu-0 PVR : 0x80040202 cpu-0 freq : 1500MHz cpu-1 SVR : 0x80900121 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 7-10 Chapter 7 Basic Cisco SCE8000 Platform Operations OL-16478-03...

  • Page 103

    : SPA-1X10GE-L-V2 spa[3] : SPA-1XTENGE-XFP ---------------- SCE8000 Chassis ---------------- product-num : CISCO7604 serial-num : FOX10420BKZ part-num : 73-9789-02 part-rev : A0 vid : V01 Part number: 73-10598-01 38 Revision: Software revision: Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 7-11 OL-16478-03...

  • Page 104: How To Display The Sce Platform Inventory

    • This command displays the UDIs only for field replaceable units (FRU). CLI show inventory raw command. • This command displays all UDIs on the Cisco SCE8000 platform. The show inventory CLI commands display the following information: • Device name •...

  • Page 105: Displaying The Complete Sce Platform Inventory

    The following example shows how to display the complete inventory (UDIs) of the SCE platform. SCE>show inventory raw "SCE8000 Chassis", DESCR: "CISCO7604" PID: CISCO7604 NAME: "SCE8000 Physical Slot 1", DESCR: "Container SCE8000 Service Control Module (SCM) slot" PID: "" NAME: "SCE8000 Physical Slot 2", DESCR: "Container SCE8000 Service Control Module (SCM) slot"...

  • Page 106

    How to Display the SCE Platform Inventory PID: "" NAME: "SCE8000 AC and DC power supply", DESCR: "Container SCE8000 AC and DC power supply" PID: "" NAME: "SCE8000 Link", DESCR: "Container SCE8000 Link" PID: "" NAME: "SCE8000 Backplane", DESCR: "Container SCE8000 Backplane "...

  • Page 107

    PID: XFP-10GLR-OC192SR , VID: V02, SN: AGA1141N43R NAME: "SCE8000 optic 3/3/0", DESCR: "XFP-10GLR-OC192SR " PID: XFP-10GLR-OC192SR , VID: V02, SN: AGA1143N4JN NAME: "SCE8000 traffic processor 1", DESCR: "SCE8000 traffic processor" PID: "" NAME: "SCE8000 traffic processor 2", DESCR: "SCE8000 traffic processor"...

  • Page 108: How To Display The System Uptime

    Example for Displaying the System Uptime The following example shows how to display the system uptime of the SCE platform. SCE#show system-uptime Cisco SCE8000 uptime is 21 minutes, 37 seconds Rebooting and Shutting Down the SCE Platform Rebooting the SCE Platform, page 7-16 •...

  • Page 109: How To Shut Down The Sce Platform

    Telnet session, and then realizes he or she has no physical access to the SCE platform. OL-16478-03 Saving or Changing the Configuration Settings, page Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Rebooting and Shutting Down the SCE Platform 7-6. 7-17...

  • Page 110

    Chapter 7 Basic Cisco SCE8000 Platform Operations Rebooting and Shutting Down the SCE Platform Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 7-18 OL-16478-03...

  • Page 111: Chapter 8 Troubleshooting

    The procedures in this chapter assume that you are troubleshooting the initial system startup, and that your Cisco SCE8000 platform is in the original factory configuration. If you have removed or replaced components or changed any default settings, the recommendations in this chapter might not apply.

  • Page 112: Information About Troubleshooting Tools

    Step 6 System startup successful (all interfaces operating normally). Information About Troubleshooting Tools There are two tools that will help you to successfully troubleshoot your Cisco SCE8000 installation: • CLI Commands for Troubleshooting, page 8-2 Checking the LEDs, page 8-4 •...

  • Page 113

    Following is a sample output from the show interface command. Auto negotiation configured: Disabled Actual status: Link is: ON Auto negotiation: Disabled Bandwidth (L1): 10000000 Kbps, Burst-size: 500000 bytes Pseudo IP Address: Not Configured OL-16478-03 10.1.1.1 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Troubleshooting Overview...

  • Page 114: Checking The Leds

    Checking the LEDs The LEDS on the SCE8000-SMC-E front panel, along with the LEDs on the power supplies and fan assembly are the most immediate problem-detection mechanism of the platform. Refer to the following sections for information on Cisco SCE8000 platform LEDS: •...

  • Page 115

    • • Power-on self-tests are completed without failure • Platform configuration is applied Warning Cisco SCE8000 is fully operational (as above) but one of the following occurred: GBE Management port link is down • Internal temperature above threshold • Internal voltage not in expected range •...

  • Page 116: Problem Solving Using A Subsystems Approach

    Identifying Startup Problems Startup problems are commonly due to the source power or to a poor cable connection. When you start up the Cisco SCE8000 platform for the first time, you should observe the startup sequence described in detailed description of the normal startup sequence and describes the steps to take if the system does not perform that sequence as expected.

  • Page 117: Troubleshooting The Power Subsystem

    Check the following to help isolate a problem in the power subsystem. In the normally configured Cisco SCE8000 platform with redundant power supply units, it is unlikely that the device will not start at all. However, at startup it should be verified that both power supply units are operational, and therefore the following steps should be followed if the Power LED on the front panel remains unlit when the Cisco SCE8000 platform is powered up.

  • Page 118: Troubleshooting The Firmware Package Installation

    CLI session on a local terminal connected to the CON port. This enables you to solve the problem and then reconnect through the management port Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Possible Cause The package file does not exist in the specified location.

  • Page 119

    Default gateway is incorrect (when the host used as client is not in the same network as the SCE Platform). Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Troubleshooting Overview Possible Solution Reconnect the cable to the GBE port and to network.

  • Page 120: Troubleshooting The Link Interface Subsystem

    Check the following to help isolate a problem in the link interface subsystem. In general, the case where no traffic is coming out of the Cisco SCE8000 is often caused by link problems or the 10GBE interface configuration. Note that in some cases, the problem which seems as a transmit problem could be in the Rx (no traffic is being received by the Cisco SCE8000 or there is actually no traffic on the line, which could be a normal situation).

  • Page 121: Troubleshooting With The User Log

    Cabling the No traffic is being transmitted to the Cisco SCE8000 from its peers. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Troubleshooting with the User Log Possible Solution Reconnect the fiber to the 10GBE port and to network.

  • Page 122: How To Copy The User Log To An External Source

    From the SCE# prompt, type clear logger device user-file-log and press Enter. Step 1 The system asks Step 2 Type y and press Enter. Step 3 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 8-12 Are you sure? Chapter 8 Troubleshooting 8-12)

  • Page 123: Generating A File For Technical Support

    The support information file is created using the specified filename. This operation may take some time. To copy the support file to an external source, from the SCE# prompt, type copy filename Step 2 ftp://username:password@ipaddress/path and press Enter. OL-16478-03 Troubleshooting with the User Log Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 8-13...

  • Page 124

    Chapter 8 Troubleshooting Troubleshooting with the User Log Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 8-14 OL-16478-03...

  • Page 125: Safety

    (FRUs). Warning Before you install, operate, or service the system, read the Regulatory Compliance and Safety Information for the Cisco SCE8000 . This guide contains important safety information you should know before working with the system. Safety, page 9-1 •...

  • Page 126: C H A P T E R 9 Removal And Replacement Procedures

    Never attempt to remove the printed circuit board from the metal carrier. • For safety, periodically check the resistance value of the antistatic strap. The measurement should be Caution between 1 and 10 megohm (Mohm). Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Chapter 9 Removal and Replacement Procedures OL-16478-03...

  • Page 127: Supported Hardware

    One Service Control Module (SCE8000-SCM-E), with an optional redundant Service Control • Module (FRU). One SPA jacket module (SCE8000-SIP), with either two or four SPA 10GBE interface modules (all • FRU). Up to two optical bypass modules installed in the bottom slot of the chassis.

  • Page 128

    Step 5 Grasp both power supply handles, as shown in the chassis. Figure 9-2 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 AC Power Supply Captive Installation Screws P W R -A 50 /6 0H IN PU T AL L FA...

  • Page 129: Installing An Ac-input Power Supply

    OL-16478-03 Removing and Replacing the Power Supply Figure 9-2. Slide the power supply into the power supply Figure 9-1.) Identifying Startup Problems, page 8-6 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 for troubleshooting...

  • Page 130

    19.8 pounds (9.0 kg). Grasp both power supply handles, as shown in Step 7 the chassis. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 DC-Input Front Panel for 2700-W DC-Input Power Supply 7 0 0 - D C -V E -1...

  • Page 131: Installing A Dc-input Power Supply

    Power supply ground is required. Install the PWR-2700-DC/4 power supply ground as described in this procedure. Note The system ground connection with the PWR-2700-DC/4 power supply in a Cisco SCE8000 is provided by the PWR-2700-DC/4 power supply ground. Additionally, you can connect a system (earth) ground. Note You must always connect the PWR-2700-DC/4 power supply ground.

  • Page 132

    Warning Power supply captive installation screws must be tight to ensure protective grounding continuity. As the power requirement of the SCE8000 will not exceed 1350W, it is not necessary to connect two Note pairs of input wires to each power supply. Should it be desired to connect two pairs of input wires, both pairs of input wires for one 2700W DC-input power supply must come from the same battery system (A feed);...

  • Page 133

    Status LEDs DC power cable terminal block cover Cable holder cover Ground Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Removing and Replacing the Power Supply IN P U T1 IN P U T2 FA N O U TP U...

  • Page 134

    9. Step 10 Secure the terminal block cover using four screws and the terminal block barriers with two screws each. Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-10 DC-Input Wires on Left Side...

  • Page 135: Removing And Replacing The Fan Assembly

    • If the LEDs indicate a power problem, see Removing and Replacing the Fan Assembly This section describes how to remove and replace fan assemblies for the Cisco SCE8000 chassis. Required Tools, page 9-11 • Removing the Fan Assembly, page 9-11 •...

  • Page 136: Installing The Fan Assembly

    Verify that the FAN STATUS LED is green. If the LED is red, one or more fans is faulty. • Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-12 STA TUS OP TIC AL...

  • Page 137: Removing And Replacing Modules

    Removing and Replacing Modules The Cisco SCE8000 platform supports two types of modules: Service Control Module (SCE8000-SCM-E) • SPA Interface Processor (SCE8000-SIP) • The following diagram shows the position of these modules in the Cisco SCE8000 chassis. Figure 9-8 SCE8000- SCMs SCE8000- Optional...

  • Page 138: Installing A Module

    If a second SCE8000-SCM-E module is used, it must be installed in slot #2. The SCE8000-SIP module must be installed in slot #3. • At the SCE# prompt, type reload shutdown and press Enter to power down the Cisco SCE8000 Step 2 platform before installing or removing any module.

  • Page 139

    10/100/ LINK/ 1000 ACTIVE Figure 9-11.) Make sure that you align the sides of the module Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Removing and Replacing Modules SCE8000 EXTENDED SERVICE CONTROL MODULE MASTER SYSTEM POWER M AS TE R...

  • Page 140

    45 degrees with respect to the module faceplate. (See Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-16 Positioning the Module in the Slot...

  • Page 141

    GE-L -V2 STA TUS OP TIC AL BY PA SS OP B-S CE 8K -MM 1mm Gap between the module 9-13) Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 Removing and Replacing Modules EMI gasket and the module above it. 9-17...

  • Page 142: Removing A Module

    SCE8000-SCM-E. Step 1 At the SCE# prompt, type reload shutdown and press Enter to power down the Cisco SCE8000 platform before installing or removing any module. Step 2 Verify that the captive installation screws on all of the modules in the chassis are tight.

  • Page 143

    If the slot is to remain empty, install a module filler plate to keep dust out of the chassis and to maintain proper airflow through the chassis. OL-16478-03 Removing and Replacing Modules Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-19...

  • Page 144: Inserting And Removing A Module: Detail

    The ejector lever • The slot guide • Figure 9-14 S C E 8 0 0 0 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-20 Module Installation and Removal -S C M -E FA N ST SCE8 000-S AT US...

  • Page 145: Verifying The Installation

    : 1500MHz cpu-2 SVR : 0x80900121 cpu-2 PVR : 0x80040202 cpu-2 freq : 1500MHz cpu (eeprom): 2.1, 1500MHz cpld-0 : 0xb20e cpld-1 : 0xb20e cpld-2 : 0xb20e cpld-0-ufm : 0xb803 Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-21 OL-16478-03...

  • Page 146

    No application is configured. Logger status: Enabled Platform: SCE8000 - 4x10GBE Management agent interface version: SCE Agent 3.1.6 Build 134 Software package file: ftp://ftpserver/simba.pkg SCE8000 uptime is 9 minutes, 54 seconds Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-22 OL-16478-03...

  • Page 147: Removing And Replacing Shared Port Adapters

    Chapter 9 Removal and Replacement Procedures After you verify installation of an SCE8000 module and check connectivity, you must configure the module. For complete information on configuring the Cisco SCE8000 platform, refer to the SCE8000 Software Configuration refer to the...

  • Page 148: Handling Spas

    If you plan to install a SPA in a subslot that is not in use, you must first remove the SPA blank filler plate. Figure 9-16 Metal carrier Printed circuit board Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-24 Class 1 Laser Warning Labels for SPA Ports 9-16.) Handling a SPA...

  • Page 149: Spa Installation And Removal

    Installing a SPA in a SIP To install a SPA in a SIP, refer to At the SCE# prompt, type reload shutdown and press Enter to power down the Cisco SCE8000 Step 1 platform before installing or removing any module.

  • Page 150: Removing A Spa From A Sip

    Removing and Replacing the Optical Bypass Module Removing a SPA from a SIP To remove a SPA from a SIP, refer At the SCE# prompt, type reload shutdown and press Enter to power down the Cisco SCE8000 Step 1 platform before installing or removing any module.

  • Page 151: Replacing The Optical Bypass Module Without Disrupting Traffic On The Link

    Step 3 SCE8000 platform. Alternatively, it can be installed in an external mounting panel elsewhere in the rack.. Connect the cables from the optical bypass module to the line interfaces of the new SCE8000 platform. Step 4 Optical Bypass Module Connectivity, page...

  • Page 152

    Chapter 9 Removal and Replacement Procedures Removing and Replacing the Optical Bypass Module Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7 9-28 OL-16478-03...

  • Page 153: Using Optical Splitters With 10gbe Links

    Unsupported Configuration, page A-2 • When designing a deployment with the SCE8000, it is important to keep in mind certain characteristics of the 10GBE link that affect the configuration of optical splitters and SPAN ports. Ten Gigabit Ethernet does not support autonegotiation (unlike regular GBE). The fixed 10GBE •...

  • Page 154: Unsupported Configuration

    Figure A-2 Subscriber In the above configuration, it is essential that the SCE8000 be operating in receive-only mode. Other Note configurations may cause SPAN port traffic to be returned to the switch, causing unpredictable behavior. Unsupported Configuration Due to the 10GBE characterstics described above, the following configuration is not supported in the 10 GBE environment.

Comments to this Manuals

Symbols: 0
Latest comments:
