4. Slide the cover back until it stops and then lift the cover upward to remove it. See
letter "C".
Installing the System Cover
1. Observe the safety and ESD precautions at the beginning of this book. See
Information".
2. Place the cover over the server system so that the side edges of the cover sit just
inside the server system sidewalls. Slide the cover forward (see letter "A" in
Figure
3. Tighten the screw at the rear of the server (see letter "B") and install the two screws
at the front of the server (see letter "C").
26
A

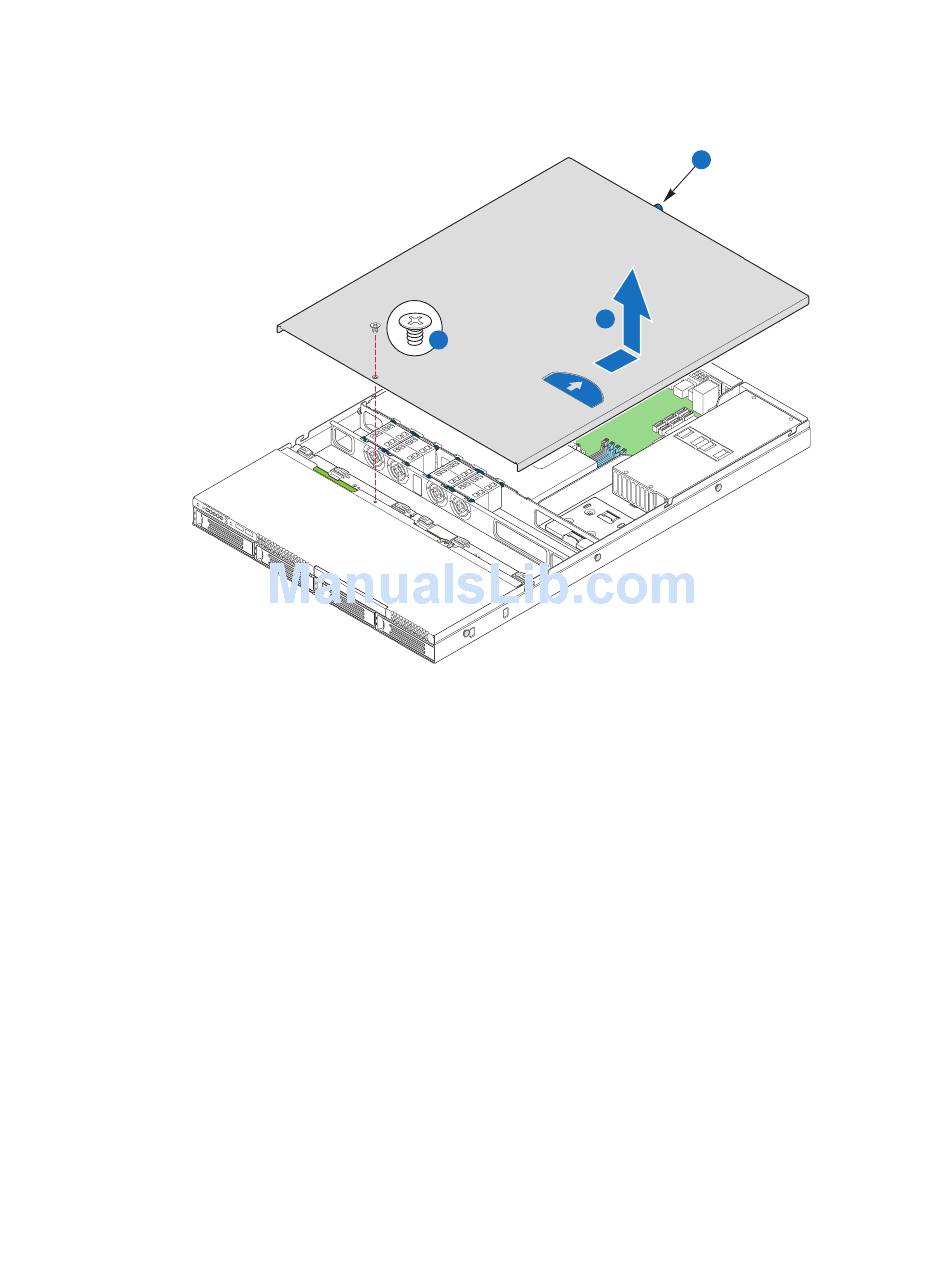

Figure 13. Removing the Server System Cover
14).
B
C
®
Intel
Server System SR1690WB Service Guide
AF003222
"Safety
