5. Position the replacement fan so the connector on the fan is at the right and pointing
down.
6. With the fan oriented correctly, insert the fan into the fan module (see letter "3"),
and insert the fan cable into the matching connector on the server board. (see letter
"2").
46

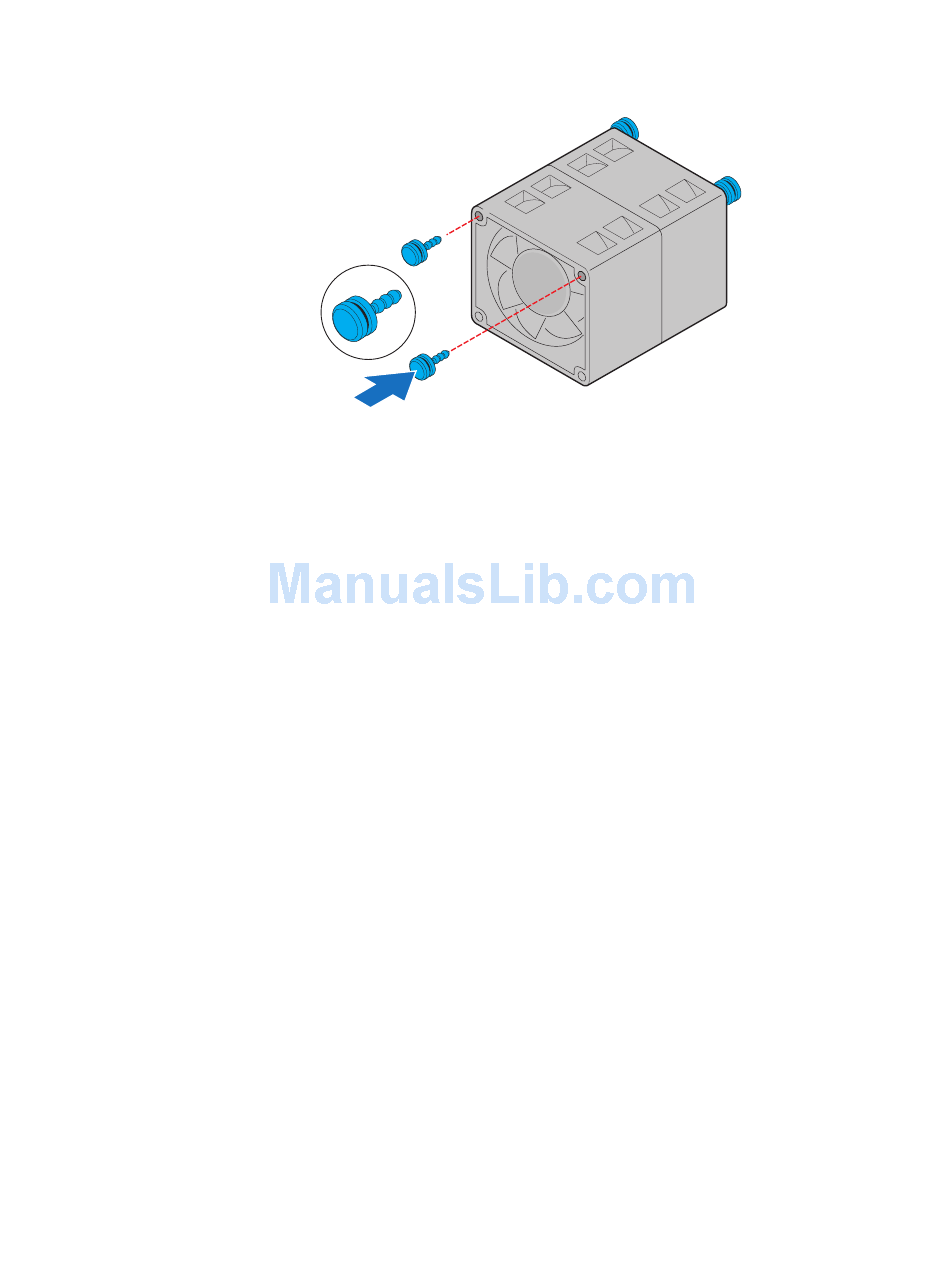

Figure 36. Remove the screws from the fans
AF003308
®
Intel
Server System SR1690WB Service Guide
