7. With the black lever in the fully open position, slide the drive assembly into the
server system. The green latch at the front of the drive carrier must be to the right.
Do not push on the black drive carrier lever until the lever begins to close by itself.
8. When the black drive carrier lever begins to close by itself, push on it to lock the
drive assembly into place.
®
Intel
Server System SR1690WB Service Guide

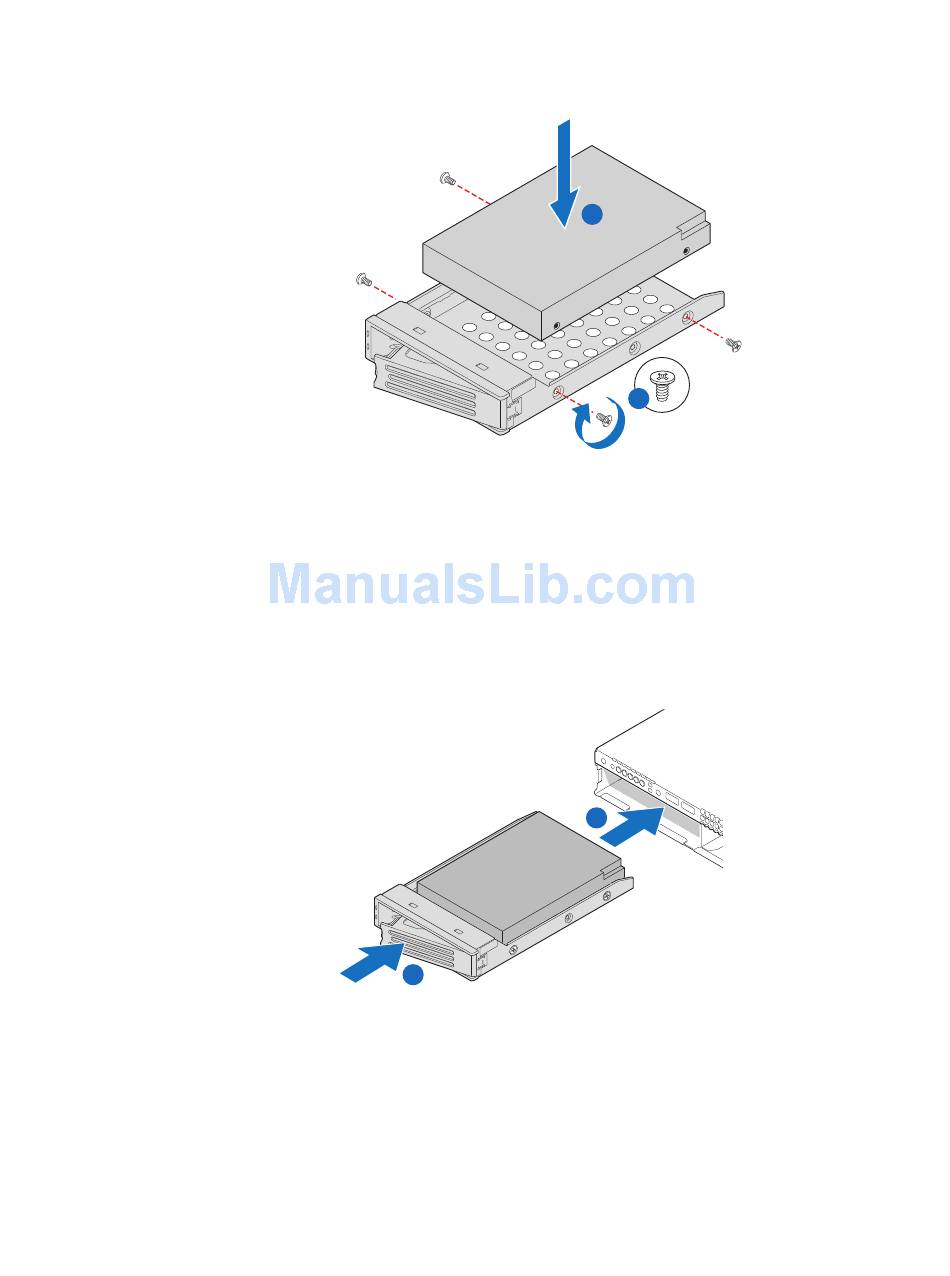

Figure 26. 3.5 HDD Installation
B
Figure 27. Locking the drive assembly
A
B
AF003304
A
AF003305
37
