3. Remove the hard drive from its wrapper and place it on an antistatic surface.
4. Set any jumpers and/or switches on the drive according to the drive manufacturer's
instructions.
5. With the drive circuit-side down, position the connector end of the drive so that it is
facing the rear of the drive carrier.
6. Align the holes in the drive to the holes in the drive carrier and attach it to the
carrier with the screws that were attached to the drive blank.
36
A

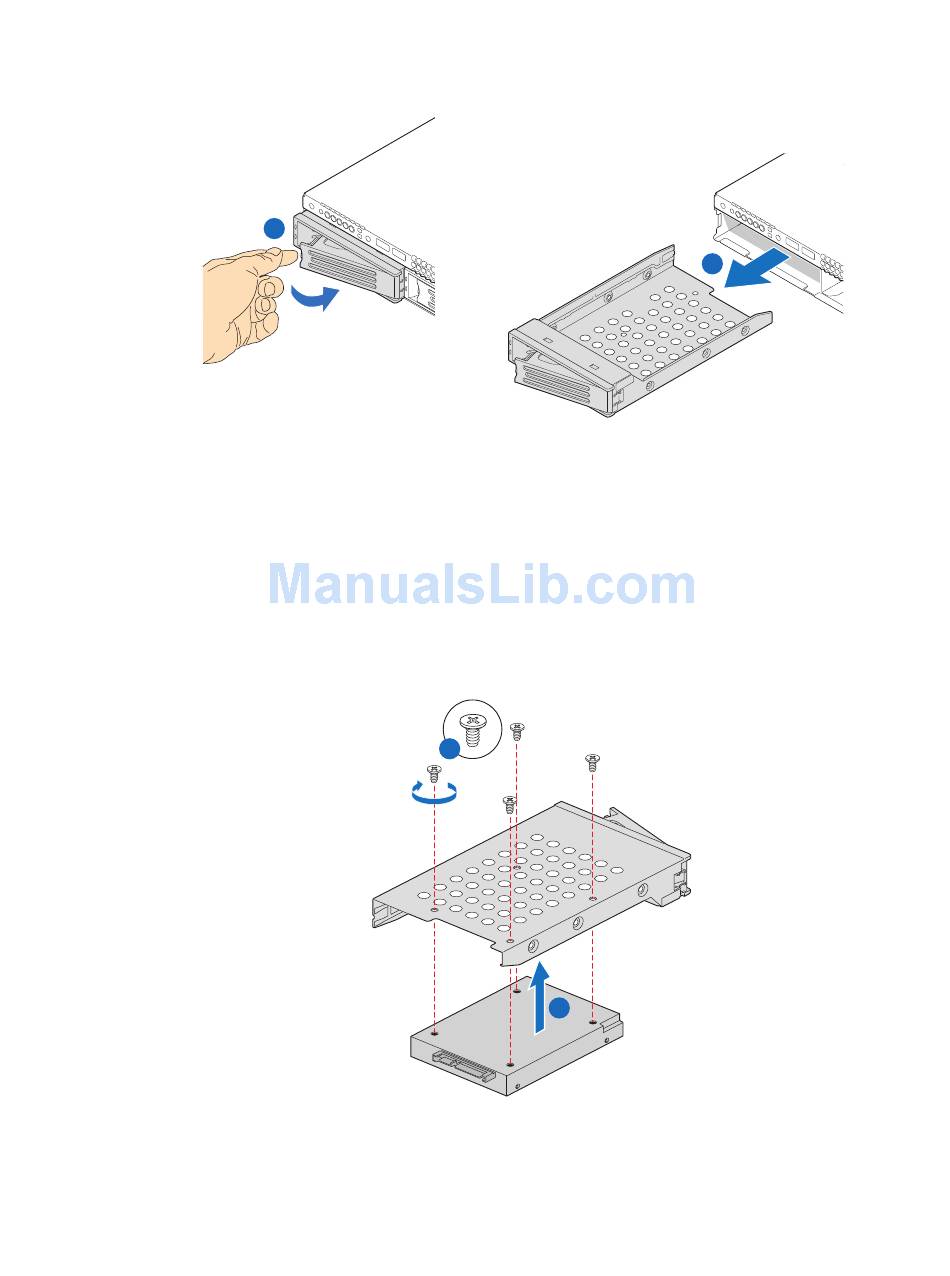

Figure 24. Pulling out the back lever
B
Figure 25. 2.5 HDD Installation
B
A
AF003303
®
Intel
Server System SR1690WB Service Guide
AF003302
