Antenna solutions for use in Germany
The Advantech antenna solutions are based on the prevailing IEEE 802.11 standard.
This standard allows radio data transfer at rates from 1 Mbps to 54 Mbps (867 Mbit/s if
using IEEE 802.11ac) using the 2.4 GHz and 5 GHz frequency band.
Information on radio performance
The consistency of the radio performance is dependent on the following factors:
Radio card (set transmission power)

Connecting cables

Antenna gain

Help table for the correct setting:
10.2. Preparation work at the factory
The following preparations have already been carried out at the factory for the optional
radio functionality of the DLT-V72:
The radio card and the corresponding drivers are installed. (Sparklan or IGX)

A default profile with basic settings is defined.

NOTICE
DLT-V72 Series User Manual V2.76

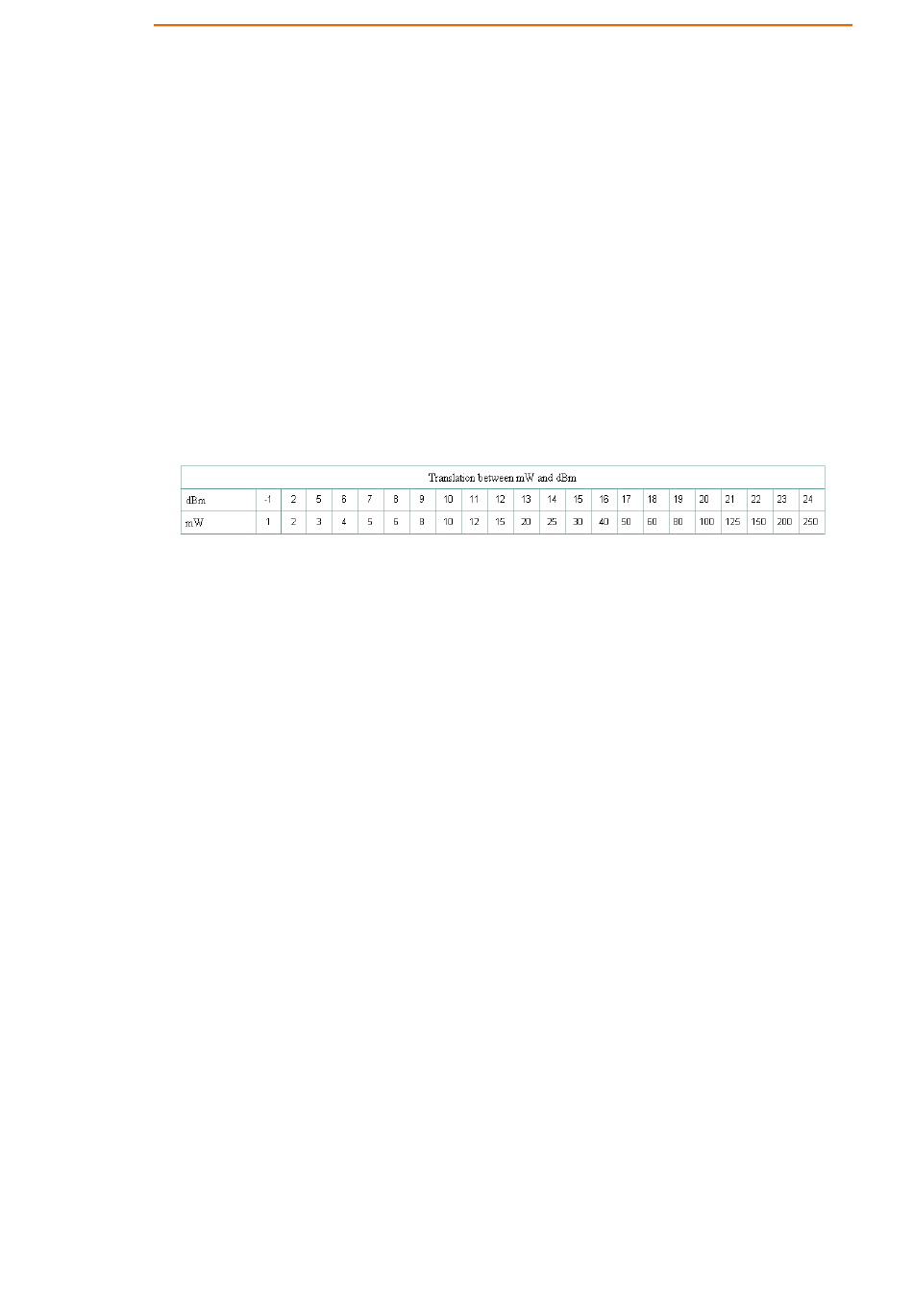

Fig. 10.1: WLAN table mW and dBm
Prevent system malfunction and property damage
Radio cards are located inside the devices and are not accessible from
the outside. Only the manufacturer and its authorized service centers
may open the device and install/remove radio cards.
WLAN Configuration
