Follow these steps to open antenna "WLAN antenna IEEE 802.11 a/b/g/n/ac":
Tools required:
Torx screwdriver, Tx20

Opening the antenna:
1. Unfasten both screws on the antenna with a Torx screwdriver, Tx20.
2. Remove the antenna from the device.
Result:

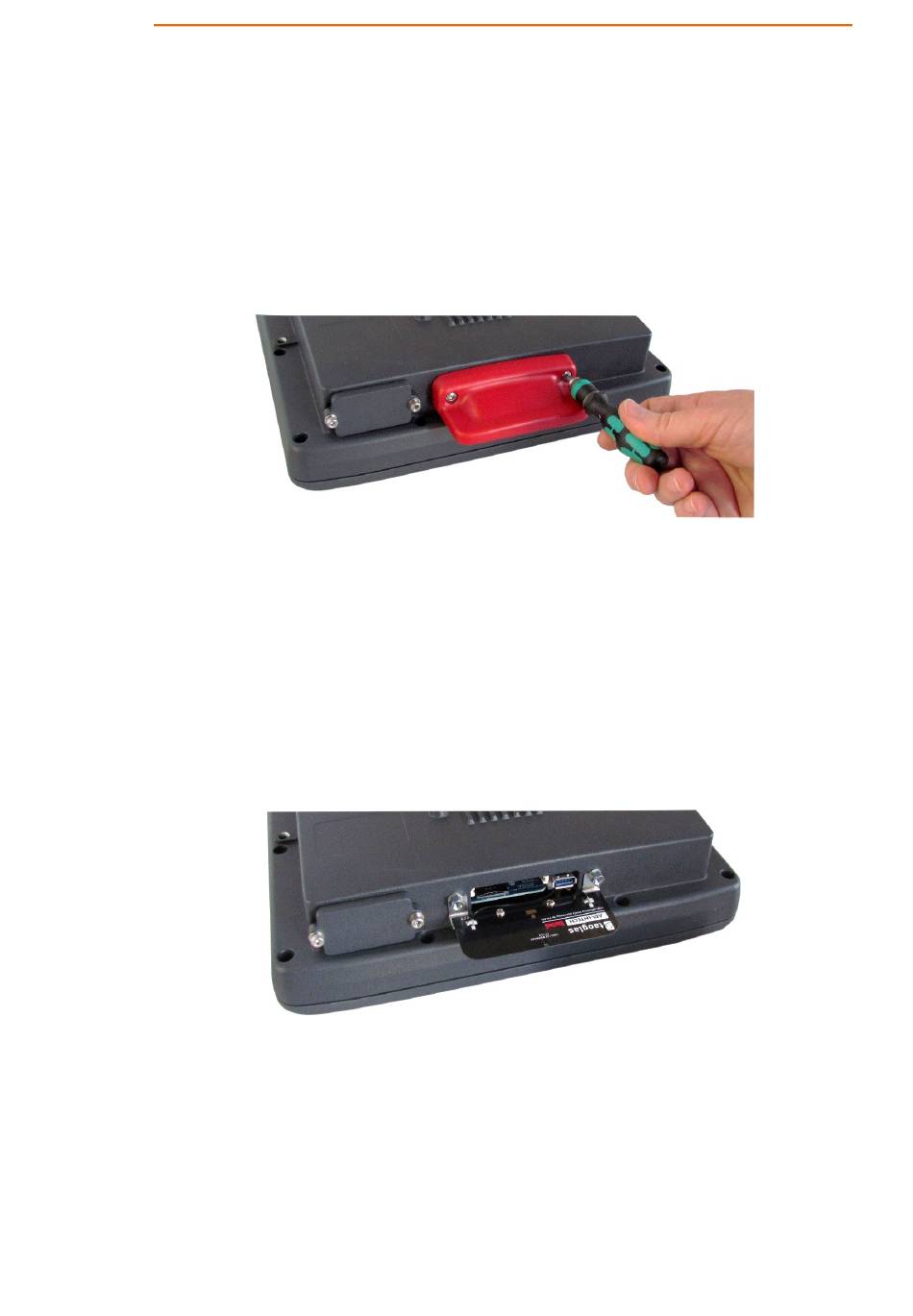

Fig. 7.6: WLAN antenna IEEE 802.11 a/b/g/n/ac opened
Closing the antenna:
1. Place the antenna back onto the DLT-V72.
2. Tighten both screws alternatingly (0.75 Nm torque).
DLT-V72 Series User Manual V2.76
Fig. 7.5: WLAN antenna IEEE 802.11 a/b/g/n/ac
