5.3.5. DLT-V7215 P+
Dimensions without add-ons (in mm)
5.3.6. VESA drill holes
The back of the DLT-V72 has a VESA-compatible 75 x 75 mm mounting hole pattern.
It is used to attach VESA-compatible mountings to mount the DLT-V72 at the deployment
location.
Depth of thread: M6 x 6mm
Please observe the mounting information in manual chapter:
12.2.4 VESA mounting hole pattern
DLT-V72 Series User Manual V2.76

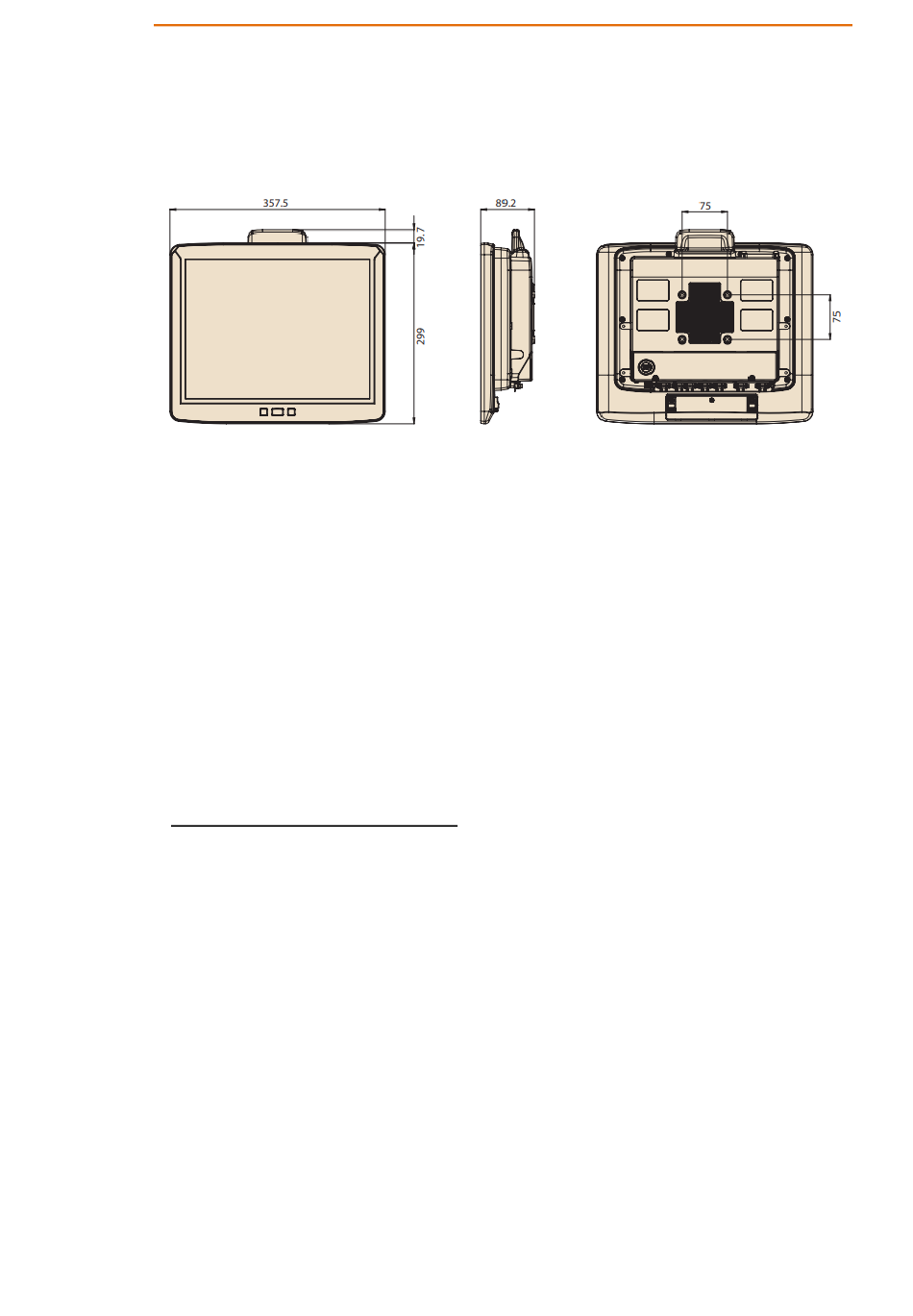

Fig. 5.5: Dimensions DLT-V7215 P+ (in mm)
Technical Data – Device
