13.3.4. Secure the power supply cable to the strain relief rail
Mounting screws
DLT-V72 Series User Manual V2.76
1. Open the round cable passage in the rubber
seal.
2. Insert the power supply cable.
3. Place one cable clip on the power supply
cable.

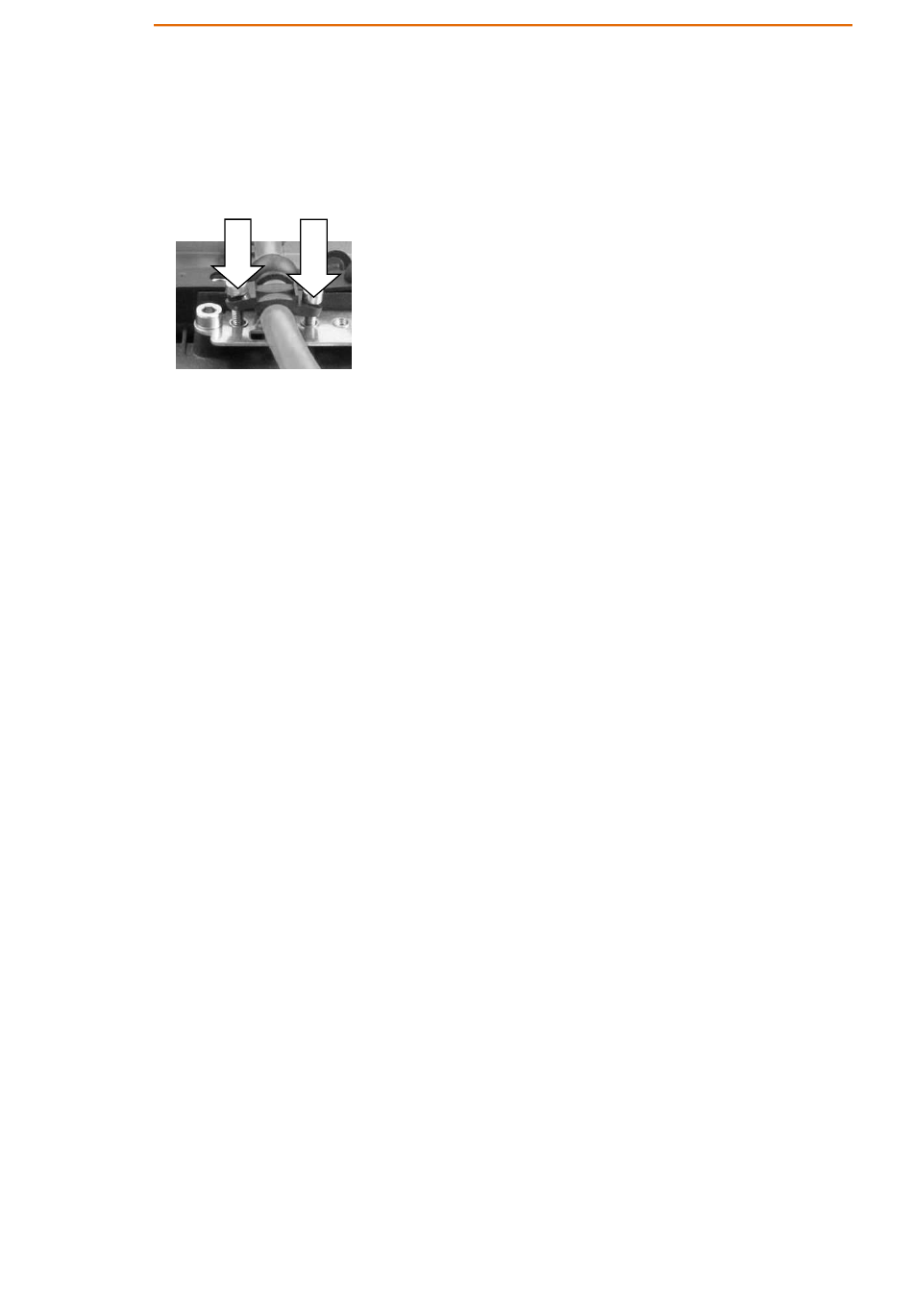

4. Secure the cable clip to the strain relief rail
using 2 mounting screws.
5. Tighten the mounting screws alternatingly.
NOTICE:
Tighten the mounting screws sufficiently but make sure
not to pinch the cable. Otherwise, the cables may break or
the insulation may be damaged.
Make sure that the power supply cables are run without
kinks and are mechanically protected, securely protected
against crushing and abrading.
