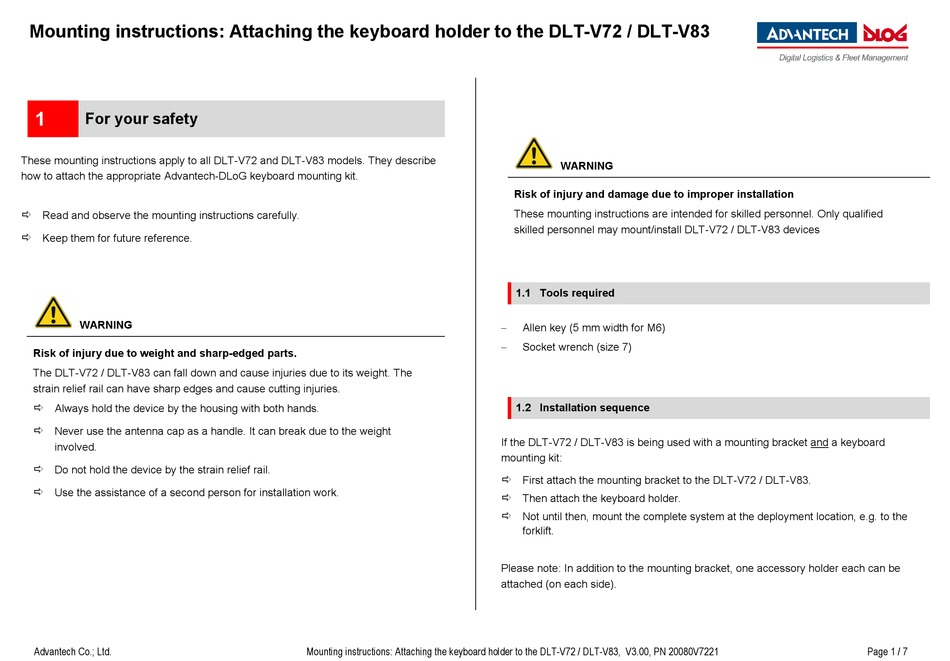

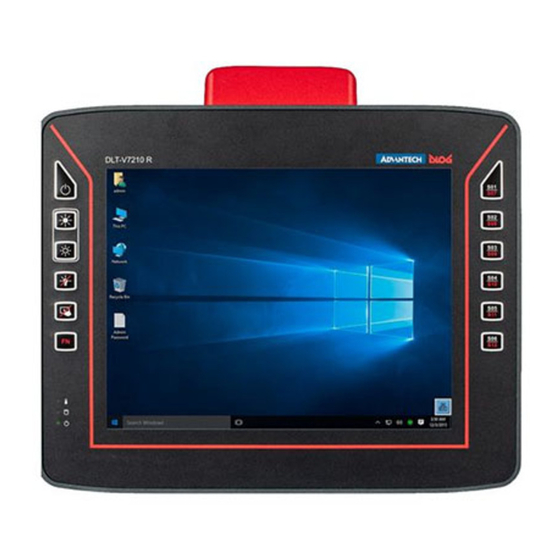

Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
1
For your safety
These mounting instructions apply to all DLT-V72 and DLT-V83 models. They describe
how to attach the appropriate Advantech-DLoG keyboard mounting kit.
Read and observe the mounting instructions carefully.

 Keep them for future reference.
WARNING
Risk of injury due to weight and sharp-edged parts.
The DLT-V72 / DLT-V83 can fall down and cause injuries due to its weight. The
strain relief rail can have sharp edges and cause cutting injuries.
Always hold the device by the housing with both hands.

Never use the antenna cap as a handle. It can break due to the weight

involved.
 Do not hold the device by the strain relief rail.
Use the assistance of a second person for installation work.

Advantech Co.; Ltd. Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221
WARNING
Risk of injury and damage due to improper installation
These mounting instructions are intended for skilled personnel. Only qualified
skilled personnel may mount/install DLT-V72 / DLT-V83 devices
1.1 Tools required
− Allen key (5 mm width for M6)
− Socket wrench (size 7)
1.2 Installation sequence
If the DLT-V72 / DLT-V83 is being used with a mounting bracket and a keyboard
mounting kit:
 First attach the mounting bracket to the DLT-V72 / DLT-V83.
 Then attach the keyboard holder.
 Not until then, mount the complete system at the deployment location, e.g. to the
forklift.
Please note: In addition to the mounting bracket, one accessory holder each can be
attached (on each side).
