12.2.6. Attach accessories
The housing of the DLT-V72 has holes provided for attaching an accessory.
Example:
Screw-in depth: M6 x 6 mm

Suitable mounting material: Cylinder head screw DIN 912 M6

Washer ISO 8738 - A6-A2

Installation sequence if mounting bracket and additional accessory are being
attached
If you are mounting a mounting bracket and a keyboard holder:
1. Attach the mounting bracket to the DLT-V72 first.
2. Then mount the keyboard holder.
3. Only mount the complete system at the deployment location, e.g. to the
Please note: In addition to the mounting bracket, one accessory holder per side can still
be attached in each case.
DLT-V72 Series User Manual V2.76

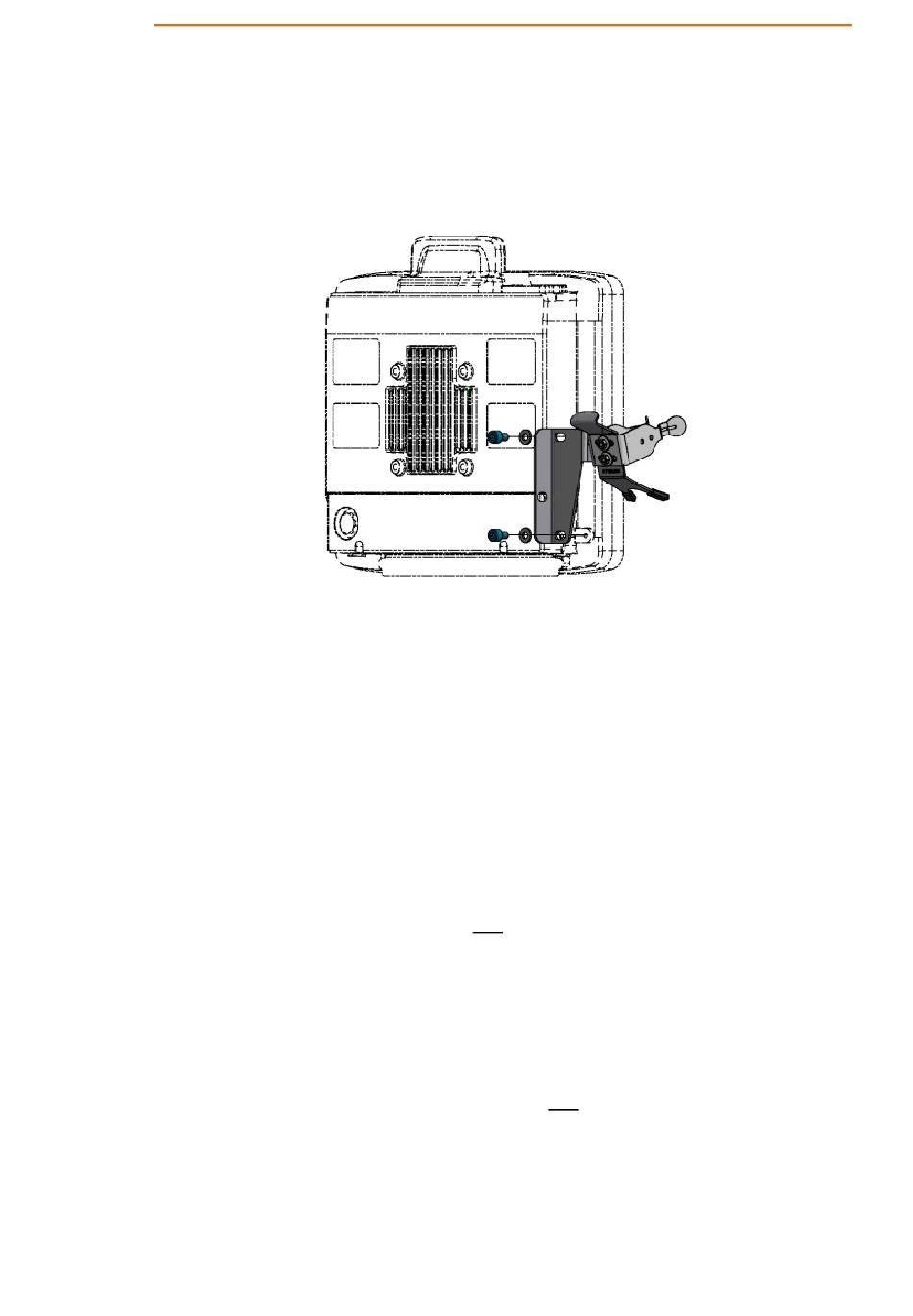

Fig. 12.3: Scanner mounting attachment
