16.2.2. Attach the integrated keyboard (example)
Reuse the black keyboard grid.
New, replacement parts:
Silicon keyboard mat
5 x screws ISO14580-m3x8 A2
Procedure
1. Place the silicon keyboard mat on the circuit board.
DLT-V72 Series User Manual V2.76

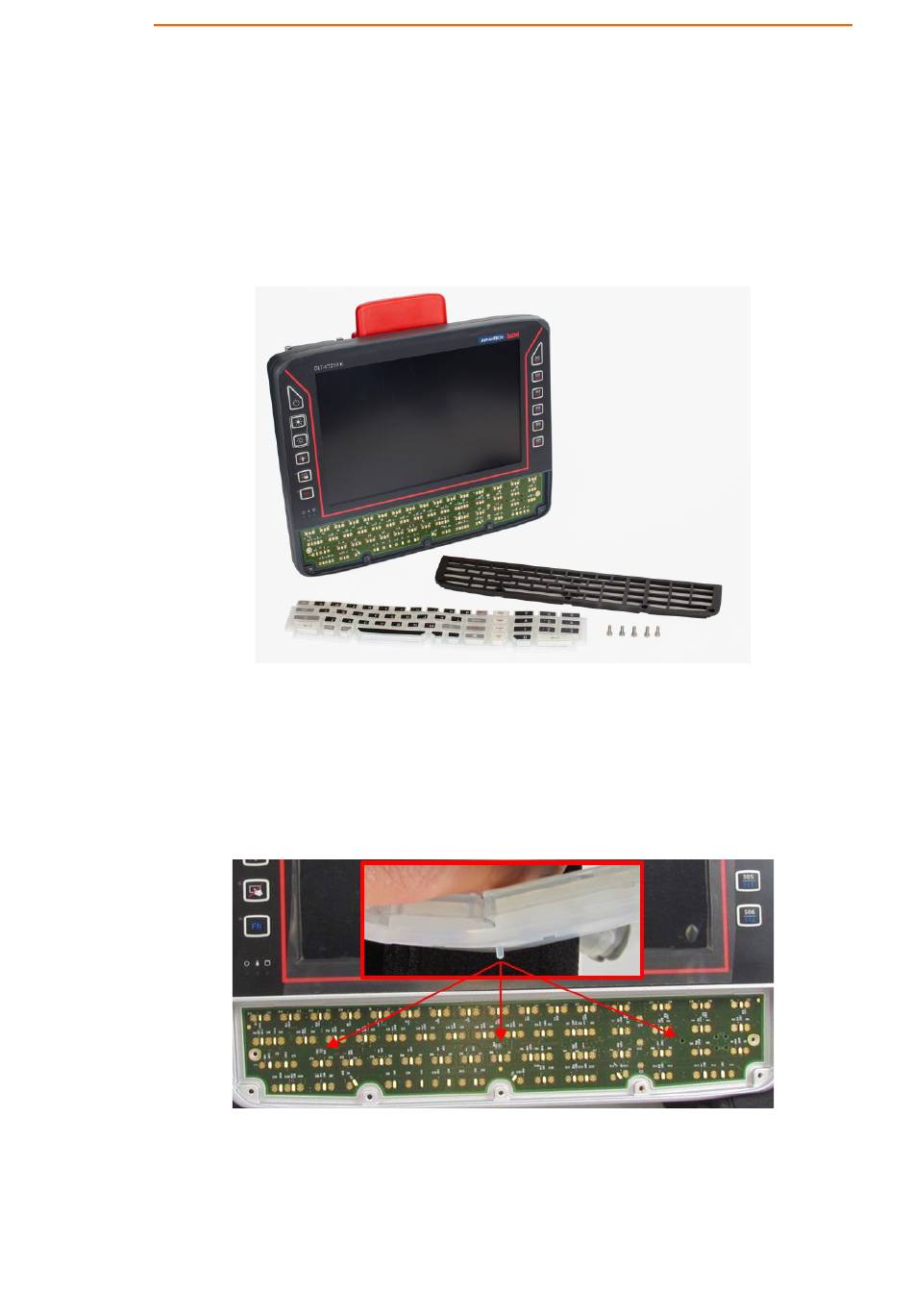

Fig. 16.2: Integrated keyboard: Keyboard components
Fig. 16.3: Integrated keyboard: Position at which the 3 nubs are inserted
