2. Carefully press the 3 nubs on the back of the silicone keypad into the
openings provided on the circuit board.

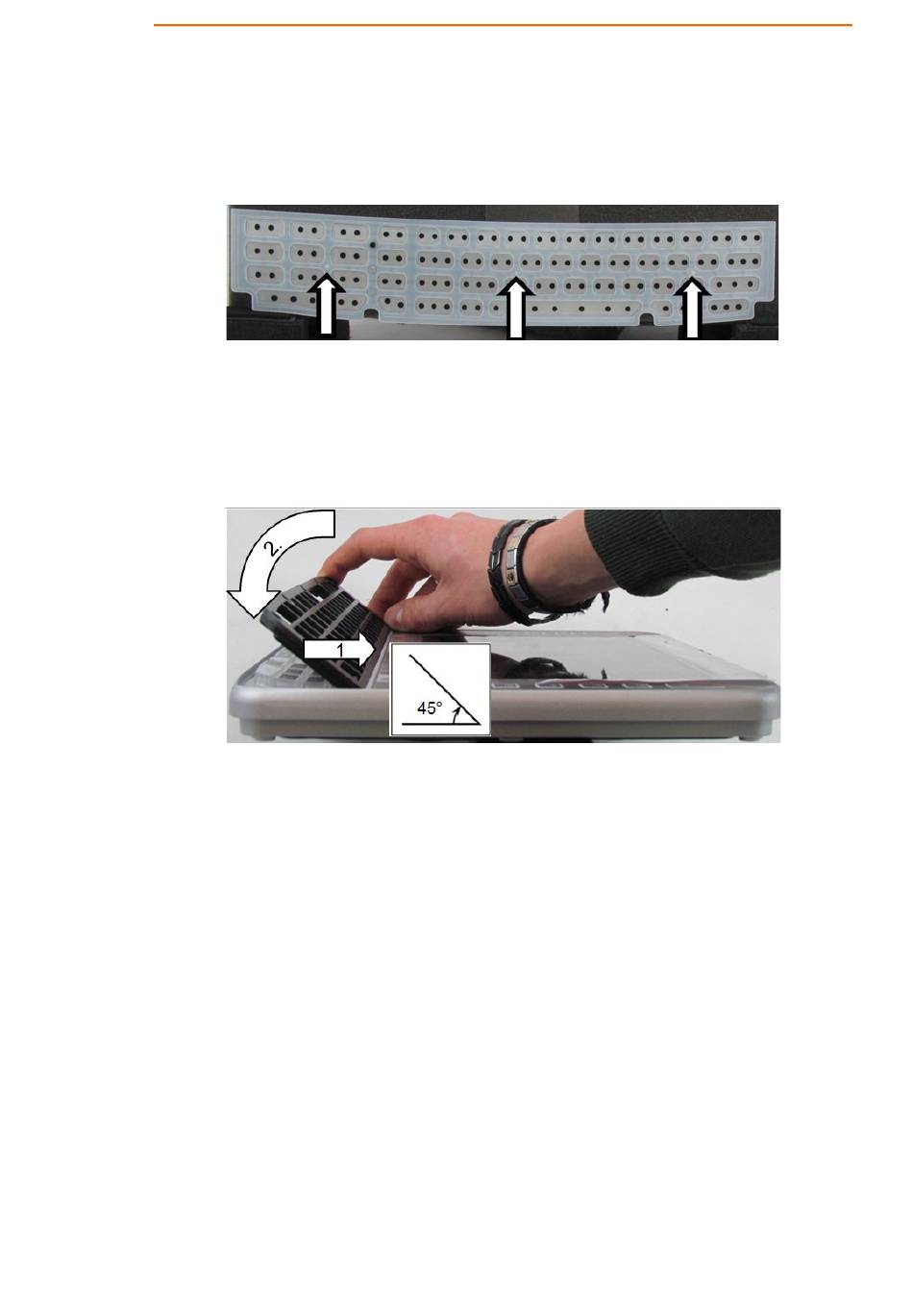

Fig. 16.4: Integrated keyboard: Silicone keypad
3. Place on the keyboard grid at a 45° angle, see Fig. 16.5.
Fig. 16.5: Integrated keyboard: Attach keyboard grid
4. Snap in keyboard grid lugs.
5. Fold keyboard grid onto keyboard.
6. Align keys.
7. Press keyboard grid firmly.
8. Use a TX10 screwdriver to tighten the 5 mounting screws of the integrated
keyboard.
9. Tightening torque: Maximum 2 Nm.
