7.1. Connectors under the cable cover
Connectors located on the connector panel under the cable cover:
Pin assignment description
Power supply
1 x SMA (optional)
1 x RSMA (optional)
USB0, USB1,
USB2, USB3
RJ45
COM1, COM2
DLT-V72 Series User Manual V2.76

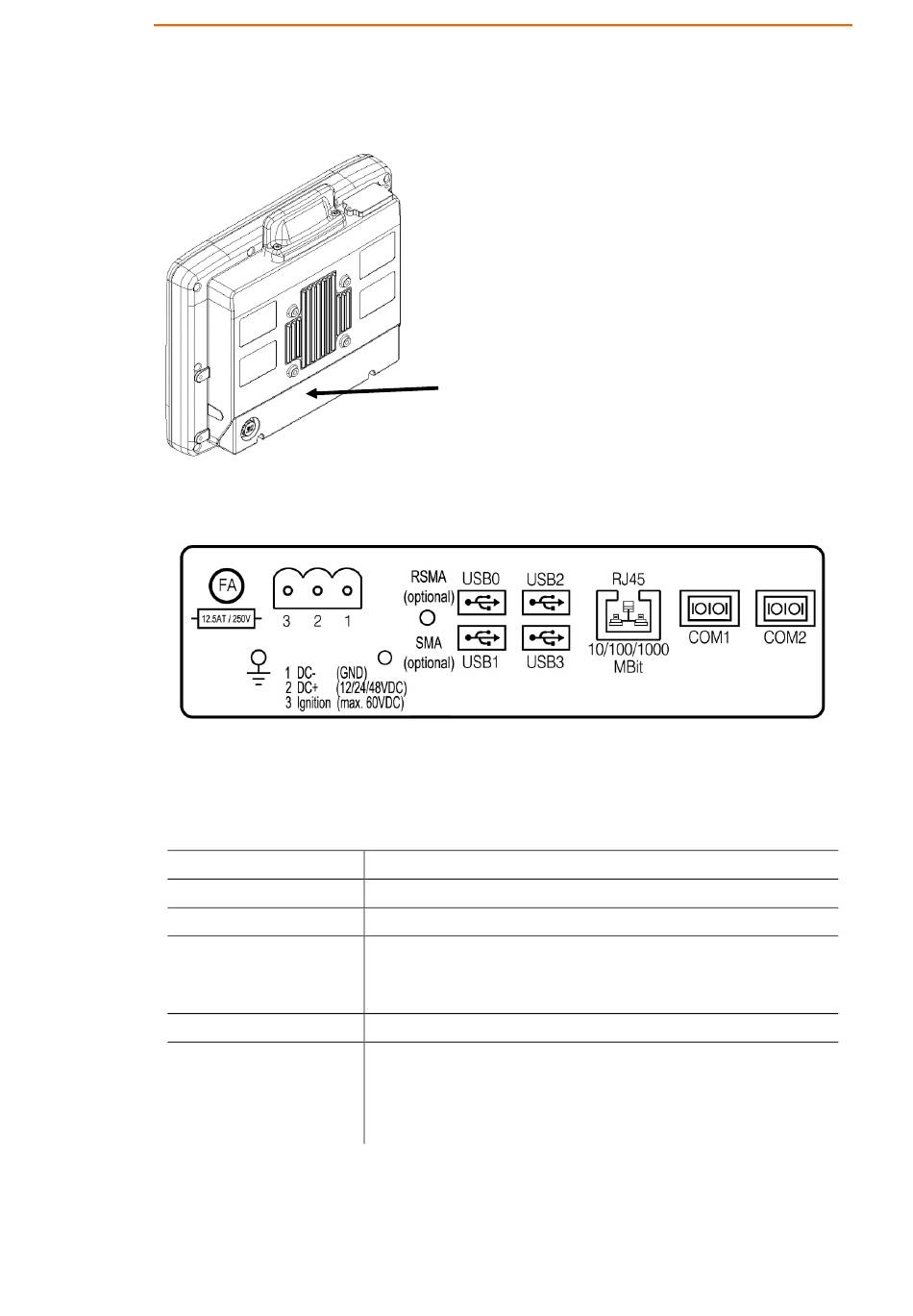

Fig. 7.1: Connectors on the connector panel under the cable cover
12/24/48 VDC nominal
Remote WWAN antenna
Remote WLAN antenna
USB 2.0 interfaces (HI-SPEED™), bootable
Fused at 1.0 A per channel
ESD Level 4 protected (according to EN 61000-4-2)
LAN Ethernet 10/100/1000 MBit/s
Serial interfaces
Max. 115,200 Baud (16550A compatible, 16 byte FIFO)
Supports EIA-232-E on external 9-pin D-Sub connection
ESD Level 4 protected (according to EN 61000-4-2)
