Compatible WLAN card:
Compatible WWAN card:
6.3.3. External WLAN antenna IEEE 802.11 a/b/g/n
Technical data
Application
Mounting location
WLAN frequency range
Number of antennas
Type
Antenna gain
Impedance
Polarization
Dimensions
Weight
Connector labeling
Scope of delivery
Maximum transmitting power
Corresponding WLAN card
DLT-V72 Series User Manual V2.76
SPARKLAN WPEQ-261 ACN (BT)
(see section 6.2.1 Radio card)
USA: QUECTEL EC25A
Europe: QUECTEL EC25E
(see section 6.2.2 Radio card)

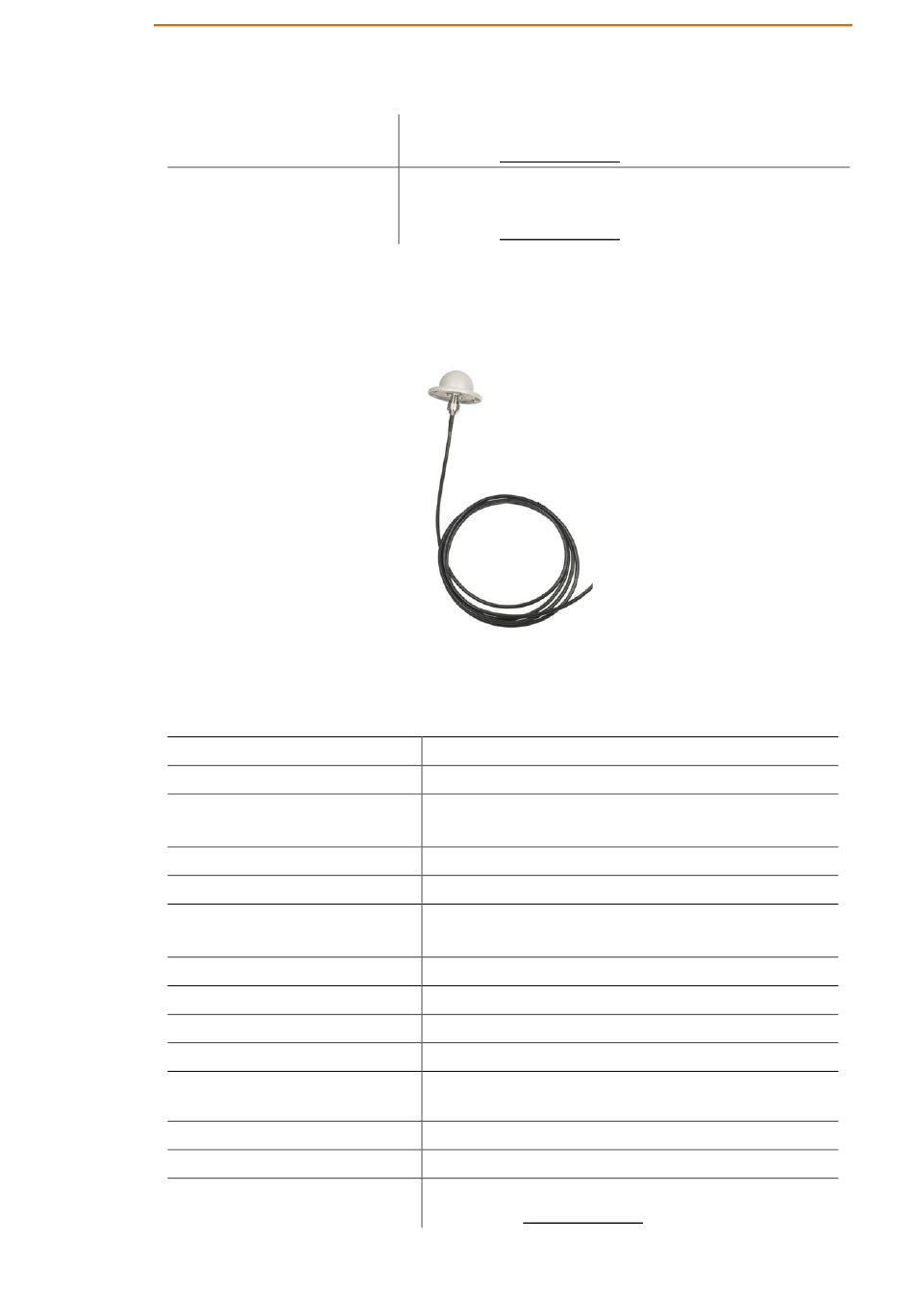

Fig. 6.3: External WLAN antenna
WLAN IEEE 802.11 a/b/g/n Dual Band
For detached mounting, e.g. on the roof of the forklift
Band 1: 2400 to 2485 MHz
Band 2: 5150 to 5875 MHz
1
Omnidirectional antenna
Band 1: Max. 4 dBi (without loss through the cable)
Band 2: Max. 6.5 dBi (without loss through the cable)
50 Ω
Vertical/horizontal
Ø 86 x 43 mm (Ø 3.39" x 1.69")
0.3 kg (0.66 lbs)
N-type or TNC N, Jack, female, bottom
RSMA plug for RSMA socket on the terminal
3 m antenna cable
100 mW / 20 dBm
SPARKLAN WPEQ-261 ACN (BT)
(see section 6.2.1 Radio card)
Technical Data – Radio
