7.2. Connectors under the antenna
Connectors located under the antenna:
Service-USB (USB 3.0 Host, SUPERSPEED

CFast slot

Mini-SIM card slot (optional)

7.2.1. Devices with sealing plate
DLT-V72 devices without radio equipment have a sealing plate instead of the radio
antenna:
NOTICE
DLT-V72 Series User Manual V2.76

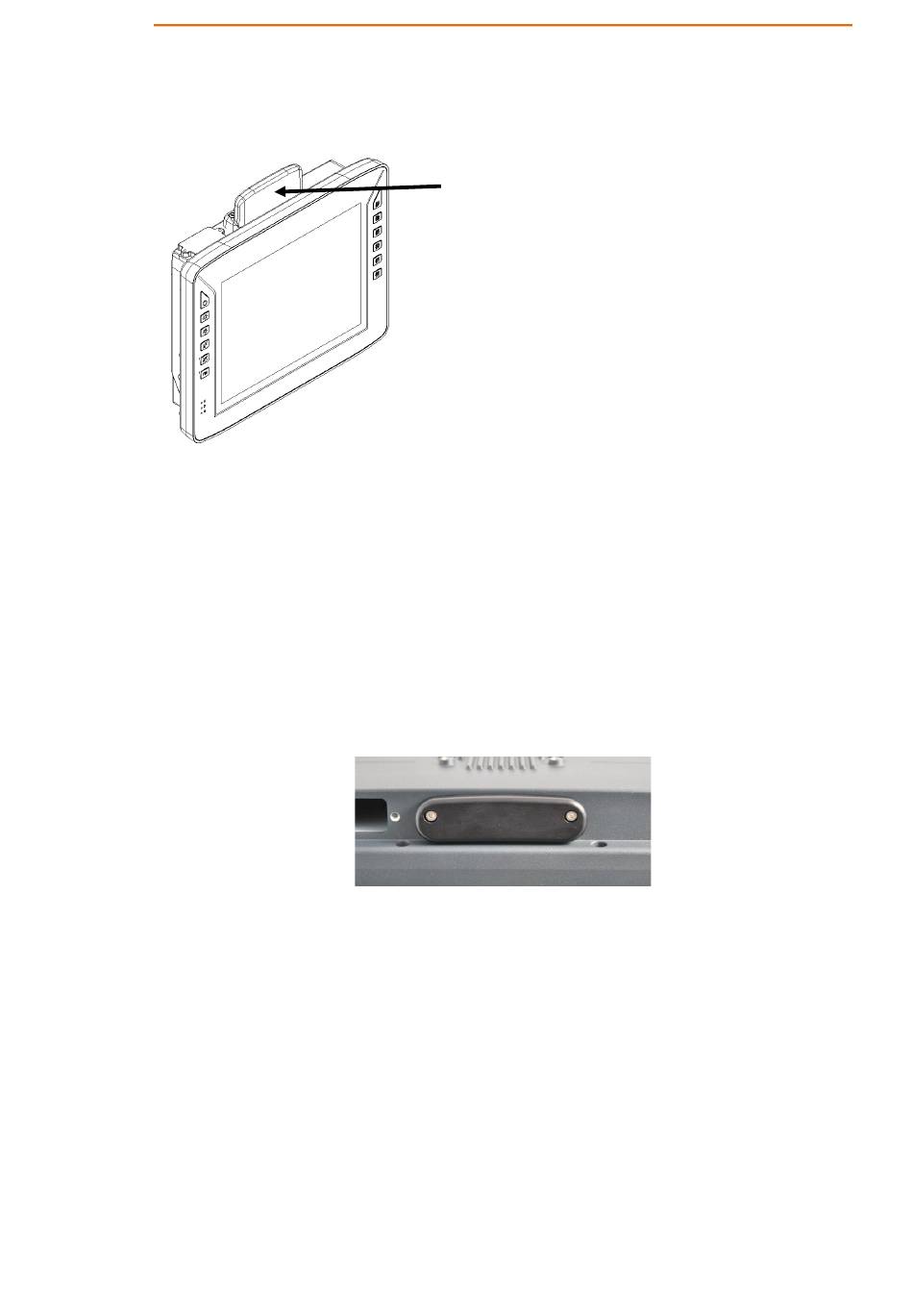

Fig. 7.3: DLT-V72 with a sealing plate (no radio antenna)
Prevent system malfunction and property damage
Improper opening of the sealing plate can impair the function of the
entire DLT-V72 system.
1. Sealing plates are only permitted to be removed by qualified
expert personnel and only for the duration of servicing work.
1. Switch off the DLT-V72 before removing the sealing plate.
2. No objects or liquids are permitted to enter the opened DLT-
V72.
3. Insert/remove cards and sticks when the device has been fully
deenergized.
Antenna
)
TM
Connectors
