14.1.3. Replacing the battery pack
The battery pack of the DLT-V72 can be charged approx. 600 times. It may only be
replaced by an original battery pack from Advantech.
WARNING
Procedure for opening the battery cover
1. IMPORTANT: Switch off the DLT-V72.
2. Loosen the two screws of the battery cover using an Allen wrench.
3. Remove the battery cover.
4. Remove the battery pack.
5. Insert the new battery pack into the battery pocket as shown in the figure.
6. Make sure that the removal tab of the battery pack is inside the sealing
7. Then reattach the battery cover (tightening torque 2 Nm).
8. Be sure the sealing of the battery cover is inside its slot.
DLT-V72 Series User Manual V2.76
Personal injury due to short-circuit, fire, chemical burns,
toxic substances. No third-party battery packs permitted.
1. Use only original Advantech battery packs.
2. The battery packs must be authorized/approved for the DLT-
V72.
3. Do not use battery packs from any other Advantech devices;
they are not compatible.
4. If battery packs from other manufacturers are inserted in the
DLT-V72, the warranty provided by Advantech for this device
will be rendered void.
surface.

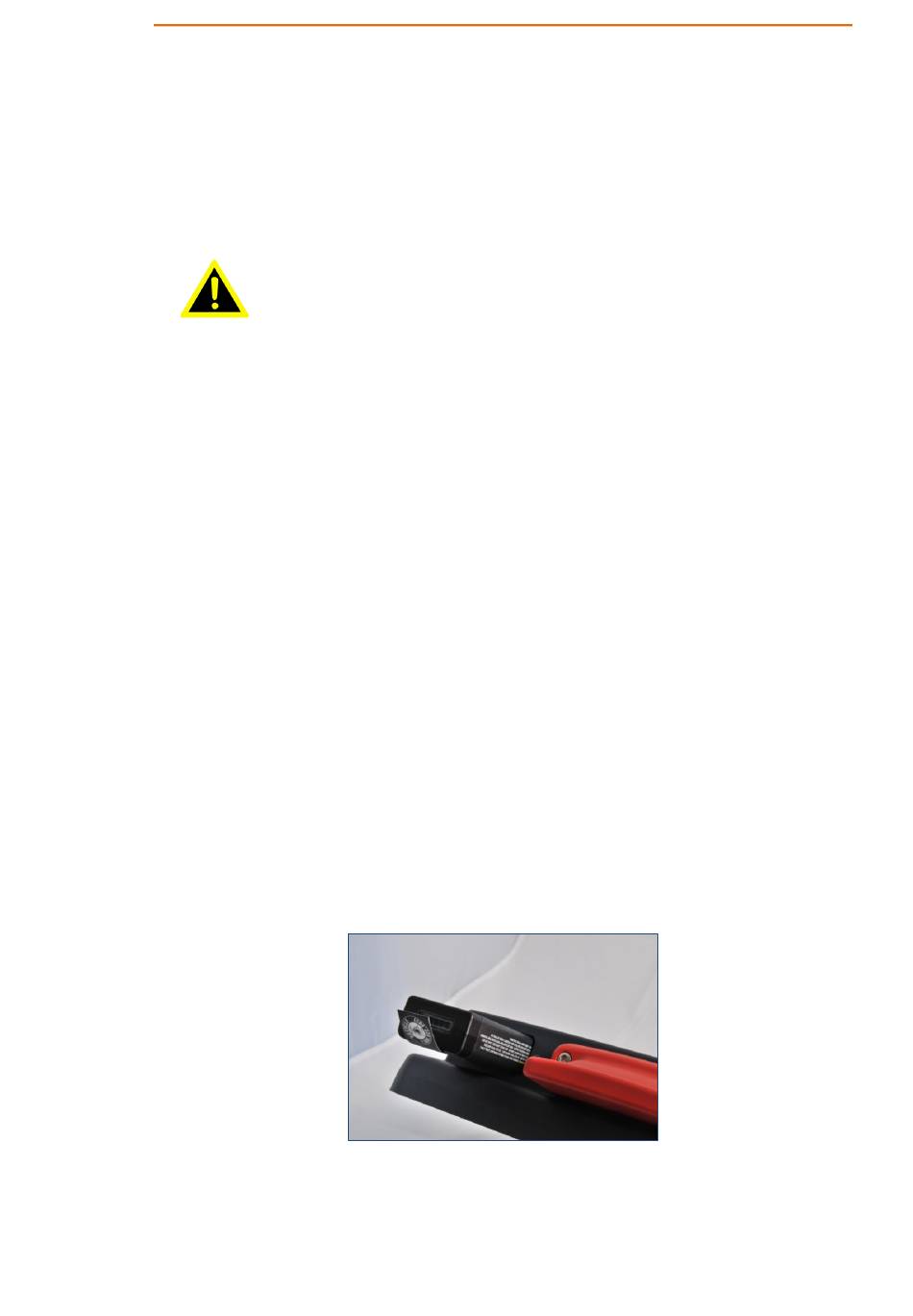

Fig. 14.2: Inserting the battery pack in the battery pocket
