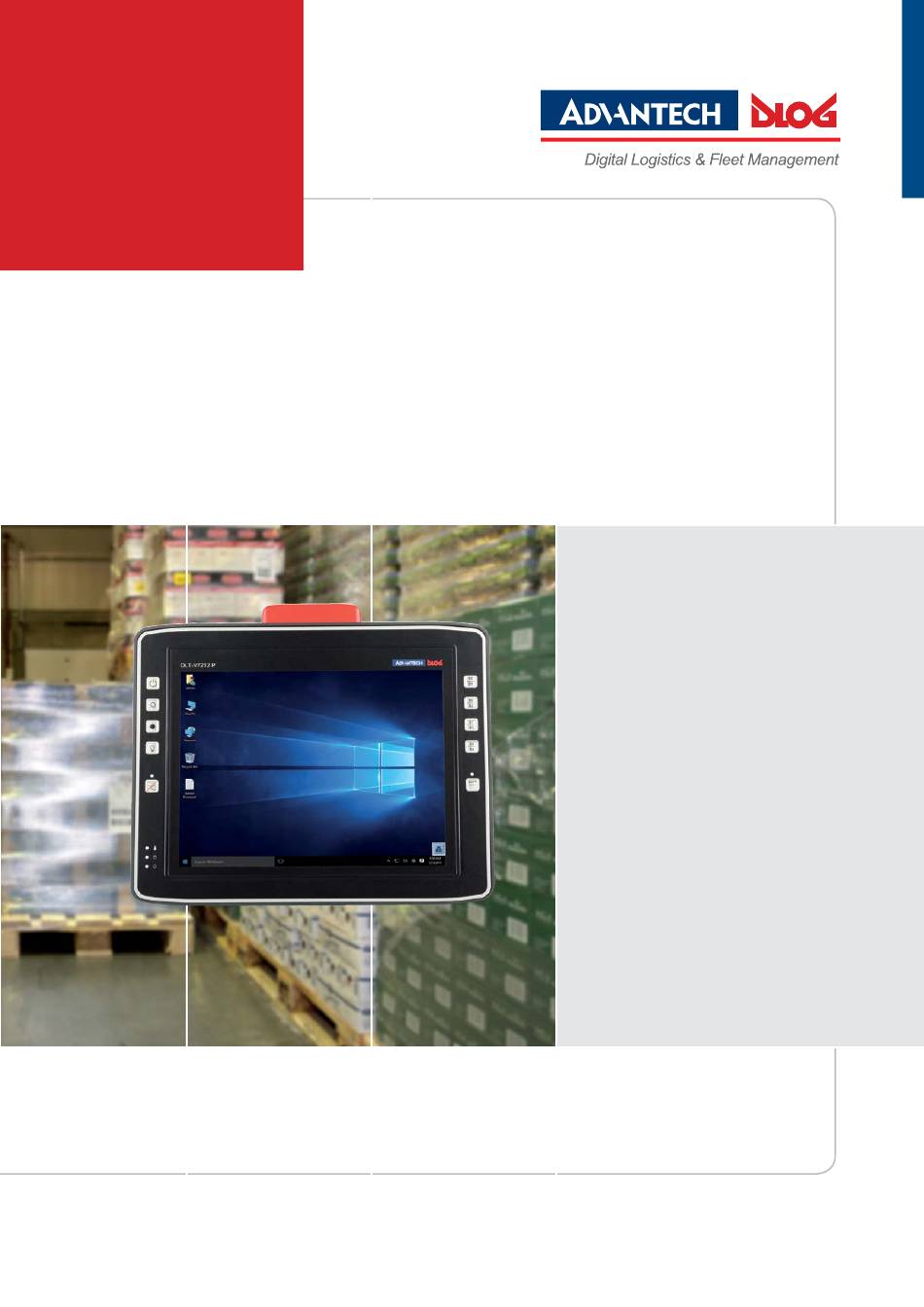

- Page 1 Advantech-DLoG DLT-V72 Series ∕ Manual DLT-V72 Series Industrial PC Manual V2.00 www.advantech-dlog.com...
- Page 2 Manual title: DLT-V72 Industrial PC Manual completed on: 05/18/2017 Manual PN: 20DLDOCX88520E01 Manual Version: V2.00 Copyright 2016-2017 Advantech-DLoG info@advantech-dlog.com By DLoG GmbH DLoG GmbH www.advantech-dlog.com All rights reserved Industriestraße 15 D-82110 Germering Phone (+49) 89 / 41 11 91 0...
-
Page 3: Table Of Contents
Table of contents 6.3. Automatic shut down .............. 32 1. INFORMATION ABOUT THE DLT-V72 MANUALS ....5 6.3.1. Functional description ............32 1.1. Available manuals – in printed form and on the Internet ..5 6.3.2. Automatic shutdown configuration......... 33 1.2. - Page 4 12. OPTIONAL EQUIPMENT .............. 67 12.1. Integrated UPS (optional) ............67 12.1.1. Battery pack specifications ............ 68 12.1.2. Charging the battery pack ............. 69 12.1.3. Replacing the battery pack ............ 69 12.2. Screen defroster (optional) ............. 71 12.3. Integrated low profile Wi-Fi antenna (optional) ....... 72 12.4.
-
Page 5: Information About The Dlt-V72 Manuals
Current manual versions at our website The latest versions of our manuals are available at our website: www.advantech-dlog.com -> Download -> Products Observe safety notices Observe the "DLT-V72 Safety Instructions" included with the device. Advantech-DLoG DLT-V72 Series Manual V2.00 5 / 94... -
Page 6: One Manual For All Device Models
Information about the DLT-V72 manuals 1.2. ONE manual for all device models This manual applies to all models of the DLT-V72 series. Differences with regard to operation, functionality, etc. are clearly indicated in the manual. − DLT-V7210 with 10" display −... -
Page 7: Functional Description
Only use accessories that have been tested and approved by Advantech-DLoG for the respective DLT- V72. Otherwise, any DLoG GmbH warranty for this device will be void. -
Page 8: Mount, Operate And Service The Device Correctly
Find details on the Advantech-DLoG Internet homepage www.advantech-dlog.com. LCD display The LCD display of the DLT-V72 series fulfills the highest quality standards and was inspected for pixel defects. However, due to technological reasons pixel defects can occur. This is not a malfunction; it is a part of the technical specifications. -
Page 9: Device Identification/Name Plate
Input V / A Input voltage of DC power supply unit nominal current S/N ..Serial number: Specific Advantech-DLoG device code Week and year of manufacture Barcode For Advantech-DLoG internal purposes Comment: X stands for not present / not applicable respectively as placeholder for add-ons. -
Page 10: Operation
Press the <Power> button. Or: By applying the supply voltage. Or: Through the ignition signal of the vehicle (depends on automatic shutdown settings). Fig. 3.1: <Power> button of the DLT-V72 10 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 11: Operating The Touchscreen
NOTICE: Physical damage Improper operation can cause damage and downtimes to the DLT-V72 and to the connected complete system. Operators of the DLT-V72 must be trained in the handling of the device. Advantech-DLoG DLT-V72 Series Manual V2.00 11 / 94... - Page 12 Salt water on the PCT touchscreen can be interpreted as a "touch" and lead to malfunctions. Multi-touch capability Depending on the installed operating system type, the PCT touchscreen of the DLT-V72 is multi-touch capable. This means it can detect two touches simultaneously. 12 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
-
Page 13: Dlt-V7210 And Dlt-V7212: Front Keys And Leds
Function 2, in combination with the <SHIFT> key: Activate/deactivate screen defroster (optional) NOTE: The temp LED indicates whether the screen defroster is active or inactive, not the touch LED above this key. Advantech-DLoG DLT-V72 Series Manual V2.00 13 / 94... - Page 14 These keys are configured with the "DLoG Config" program; the associated manual is available in the Download Center at www.advantech-dlog.com. <SHIFT> key If the LED is illuminated, it indicates that <SHIFT> is activated. 14 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
-
Page 15: Dlt-V7210K: Front Keys, Leds And Integrated Keyboard
The brightness/illumination keys to the left on the device affect the integrated keyboard, not the display (permanent, until FN is pressed again). The alternative characters of the individual keys shown in red are activated on the integrated keyboard (not permanent). Advantech-DLoG DLT-V72 Series Manual V2.00 15 / 94... - Page 16 Configure with „DLoG Config“, „ADLoG Linux“ or „ADLoG Android“ (depends on OS). LEDs Display of excessive or LED on: Display of insufficient temperature in LED on: Indicates access to the Explanation available internal supply the device; Temp LED flash drive voltage flashes red 16 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
-
Page 17: Integrated Keyboard
Example English version (QWERTY) Description of specific keys Function <Shift> key Caps Lock: permanent switch to uppercase letters Activate the FN key on the left of the device: See the explanation there. Windows key Advantech-DLoG DLT-V72 Series Manual V2.00 17 / 94... -
Page 18: Operating States
-30 and +59 °C again. Computer start-up/normal operational state/shutdown delay time Screen defroster active FLASHING Ambient temperature lies outside of the permitted range, i.e. < -30 or > +50 °C 18 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 19: Software Keyboard (Optional)
Fig. 3.4: Software keyboard If the software keyboard was ordered together with the DLT-V72 industrial PC, then the program will have been fully pre-licensed by the Advantech-DLoG production department. For subsequent installation, an installation program is available. The manual for the DLoG software keyboard is available in the Download Center at www.advantech-dlog.com. -
Page 20: Unpacking, Transport And Storage
Observe the intended use of the DLT-V72, e.g.: no use in EX zone (potentially explosive), no use in life-supporting systems or security-critical facilities. For details, see manual, section 2.1 Intended use . 20 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 21: Protecting Touchscreens During Storage
Place devices front-to-front in this case. The VESA mounting point on the rear side of the device can damage the touchscreen of another device. Use protective material (non-flammable!) between the devices as a precaution. Advantech-DLoG DLT-V72 Series Manual V2.00 21 / 94... -
Page 22: If A Return/Repacking Is Necessary
If you repack the device, please ensure that the cling wrap in the cardboard frame is positioned towards the front of the device so that it can provide the proper protection. 22 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 23: Operating Systems (Optional)
When a DLT-V72 is started up for the first time without a pre-installed operating system, the user needs to carry out a number of steps that will vary depending on the system to be installed. Refer to the relevant operating system manual for specific instructions. Advantech-DLoG DLT-V72 Series Manual V2.00 23 / 94... -
Page 24: Configuring The Front Keys, Automatic Shutdown, Etc
Do not click on the Eject DLT-V72xx button, which fades in on the taskbar using the Eject Media icon: If the Eject DLT-V72xx button is clicked on: − Malfunctions during the communication with the environment controller are possible. − The DLT-V72 must be restarted. 24 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 25: Energy Options And Battery Pack Durability
Via Start -> Settings -> Update & Security, switch to the Windows Updates dialog. Click on Retry to search for updates. Click on Advanced Options. The Never check for updates setting is now set. Fig. 5.1: Automatic Windows 10 Updates Advantech-DLoG DLT-V72 Series Manual V2.00 25 / 94... -
Page 26: Android
Linux (optional) You can find operating system information on DLT-V72 devices with ADLoG Linux in the "ADLoG Linux Manual". You can request this manual from the ADLoG Helpdesk (see Technical Customer Support). 26 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 27: Device Configuration
DLT-V72 with ADLoG Linux: "ADLoG Standard Linux image configuration" You can find configuration information on DLT-V72 devices with ADLoG Linux in the "ADLoG Linux Manual". You can request this manual from the ADLoG Helpdesk (see Technical Customer Support). Advantech-DLoG DLT-V72 Series Manual V2.00 27 / 94... -
Page 28: Wi-Fi Configuration
EIRP (Equivalent Isotropically Radiated Power), in the 2.4 GHz frequency band is set at 20 dBm (100 mw). Set the transmitting power of the Advantech-DLoG antenna so that the permitted EIRP limit value is complied with. 28 / 94 DLT-V72 Series Manual V2.00... -
Page 29: Transmitting Power
6.2.2. Transmitting power The transmitting power depends on: − Wireless card (set transmission power). − Connecting cables. − Antenna gain. Help table for the correct setting: Advantech-DLoG DLT-V72 Series Manual V2.00 29 / 94... -
Page 30: Antenna Solutions For Use In Germany
6.2.3. Antenna solutions for use in Germany The Advantech-DLoG antenna solutions are based on the prevailing IEEE 802.11 standard. This standard allows wireless data transfer at rates from 1 Mbps to 54 Mbps (300 Mbps if using IEEE 802.11n) using the 2.4 GHz and 5 GHz frequency band. -
Page 31: Windows Zero Configuration (Wzc)
Wi-Fi configuration DLT-V72 with ADLoG Linux You can find configuration information on DLT-V72 devices with ADLoG Linux in the "ADLoG Linux Manual". You can request this manual from the ADLoG Helpdesk (see Technical Customer Support). Advantech-DLoG DLT-V72 Series Manual V2.00 31 / 94... -
Page 32: Automatic Shut Down
All applications that can be terminated without user confirmation using the keyboard shortcut <ALT> + <F4> will normally also respond correctly to the “WM_QUERYENDSESSION” message and therefore do not need to be hard-terminated. 32 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 33: Automatic Shutdown Configuration
Configuring automatic shutdown DLT-V72 with ADLoG Linux You can find configuration information on DLT-V72 devices with ADLoG Linux in the "ADLoG Linux Manual". You can request this manual from the ADLoG Helpdesk (see Technical Customer Support). Advantech-DLoG DLT-V72 Series Manual V2.00 33 / 94... -
Page 34: Mechanical Installation
Never use the antenna cap as a handle. It can break due to the weight involved. Do not hold the DLT-V72 by the strain relief rail. Use the assistance of a second person for installation work. 34 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 35: Mounting The Dlt-V72 At The Deployment Location
Radio wave emission in the vicinity of persons. To ensure that the limits set for exposure to radio waves are not exceeded: Install the DLT-V72 so that persons maintain a minimum distance of 20 cm to the antenna. Advantech-DLoG DLT-V72 Series Manual V2.00 35 / 94... - Page 36 Never install the system in a closed environment where the cooling air is unable to dissipate accumulated heat to the outside. The maximum permissible ambient temperature for the entire system needs to be taken into account for the specific application area. 36 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
-
Page 37: Attaching Accessories To The Dlt-V72
Observe the maximum screw-in depth of the hole of the mounting hole pattern: The recommended screw-in depth of Dx1 always applies (screw diameter x 1). − If you ordered a bracket from ADLoG, it includes the suitable screws and washers. Please use them (see examples). Advantech-DLoG DLT-V72 Series Manual V2.00 37 / 94... -
Page 38: Attach The Adlog Mounting Bracket
− Use suitable mounting material (screws and washers). − Observe the maximum screw-in depth of the holes of the DLT-V72: The recommended screw-in depth of Dx1 always applies (screw diameter x 1). 38 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 39: Attach The Adlog Accessories
Only mount the complete system at the deployment location, e.g. to the forklift. Please note: In addition to the mounting bracket, one accessory holder per side can still be attached in each case. Advantech-DLoG DLT-V72 Series Manual V2.00 39 / 94... -
Page 40: Electrical Installation, Cable Connection, Cable Cover
The DLT-V72 must be disconnected from the vehicle battery while the vehicle battery is being charged. Or it must be ensured that the maximum permitted input voltage of the DLT-V72 is not exceeded. 40 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 41: Preparations
Cable clips Screws Tools − Hexagon screwdriver, size 3 − Philips screwdriver, size 3 − Torque wrench − Allen wrench, size 2.5 − Flat head screwdriver, size 0 − Socket wrench, size 7 Advantech-DLoG DLT-V72 Series Manual V2.00 41 / 94... -
Page 42: Inserting The Rubber Seal In The Cable Compartment
WARNING Electric shock, fire due to incorrect cable routing or insufficient grounding. Use only original Advantech-DLoG power cables; these meet the specific requirements for low-temperature flexibility, UV resistance, oil resistance, etc. Make sure that the power supply cables are run without kinks and are protected (securely protected against crushing and abrading). -
Page 43: Plugging In And Screwing On The Power Supply Cable
Plug the power supply cable into the power supply plug-in location. Screw both mounting screws hand-tight. Fold open the round cable passage in the rubber seal. Insert the power supply cable. Advantech-DLoG DLT-V72 Series Manual V2.00 43 / 94... -
Page 44: Securing The Ground Using Ring Tongue To The Ground Bolt
(from inside to outside): Toothed washer (internal). Ring tongue of the power supply cable (flat side faces the DLT-V72 connector panel). Tightening the nut hand-tight. 44 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 45: Securing The Power Supply Cable To The Strain Relief Rail
ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable. If you do, the cables may break or the cable insulation may get damaged. Fig. 8.4: Cable clip secured to the strain relief rail. Advantech-DLoG DLT-V72 Series Manual V2.00 45 / 94... -
Page 46: Connecting The Usb, Ethernet And Com Cables
NOTICE: Physical damage Observe the following when connecting/removing external devices on the DLT-V72. Only use accessories that have been tested and approved by Advantech-DLoG for the respective DLT-V72. The DLT-V72 may not be connected to the power supply if external devices are being connected/removed (not applicable for USB devices) ... -
Page 47: Ethernet Cable
ATTENTION Tighten the mounting screws sufficiently but on no account pinch or crush the cable. If you do, the cables may break or the cable insulation may get damaged. Fig. 8.7: COM cable on the connector panel; secured to the strain relief rail Advantech-DLoG DLT-V72 Series Manual V2.00 47 / 94... -
Page 48: Closing Off Unused Cable Openings
Place the cable cover in the DLT-V72 housing slot. Screw the cylinder-head screws loosely into the holes of the cable cover. Then fully tighten the screws with 3 Nm torque. Fig. 8.9: Cable cover closed and screwed together 48 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 49: Pressure Compensation Element
Do not modify or remove the pressure compensation element; doing so would make the device leak and the IP protection would no longer be ensured. Fig. 8.10: Pressure compensation element - Do not modify or remove Advantech-DLoG DLT-V72 Series Manual V2.00 49 / 94... -
Page 50: Connectors
Pin assignment Power supply 12/24/48 VDC nominal 1 x RSMA (optional) Remote Wi-Fi antenna USB0, USB1, USB2, USB3 USB 2.0 interfaces (HI-SPEED™), bootable RJ45 LAN Ethernet 10/100/1000 MBit/s COM1, COM2 Serial interfaces 50 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 51: Network Adapter (10/100/1000)
ESD Level 4 protected (according to EN 61000-4-2) COM2 Max. 115,200 Baud (16550A compatible, 16 byte FIFO), supports EIA-232-E on external 9-pin D-Sub connection ESD level 4 protected (according to EN 61000-4-2) Advantech-DLoG DLT-V72 Series Manual V2.00 51 / 94... -
Page 52: Com1 As A Voltage Source
A plug connector which meets the specific shock and vibration requirements is used for the service USB interface. Exercise special care when removing and plugging in USB connectors. Fig. 9.4: Antenna cap opened 52 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 53: Cfast Slot
CFast slot There is a CFast slot under the antenna cap. Exercise special care when removing and re-inserting CFast cards. Use only CFast cards that have been approved by Advantech-DLoG. 9.2.3. Antenna cap opening/closing Opening Loosen the two screws of the antenna cap using Torx screwdriver. -
Page 54: Integrated Power Supply, Power Supply Cable
The SELV circuit is a secondary circuit that is designed and protected so that its voltages will not exceed a safe value both when operating correctly or if a single error occurs. 54 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 55: Dc Voltage Supply Connection
“Ignition on” means that a control signal can be routed to this connection (e.g., ignition of a vehicle), that matches the supply voltage level and is able to supply at least 1 W to the DLT-V72. The signal reference is DC-. Advantech-DLoG DLT-V72 Series Manual V2.00 55 / 94... -
Page 56: Dc Power Supply Cable
WARNING Electric shock, fire due to incorrect power supply cable. Use only original Advantech-DLoG power supply cables; these meet the specific requirements for low-temperature flexibility, UV resistance, oil resistance, etc. Fig. 10.3: DC connection cable assignment 56 / 94 DLT-V72 Series Manual V2.00... -
Page 57: Technical Data
500 cd/m² Manually adjustable Brightness control The LCD display of the DLT-V72 series fulfills the highest quality standards and was inspected for pixel defects. However, due to technological reasons pixel defects can occur. This is not a malfunction; it is a part of the technical specifications. - Page 58 (according to ISO 2813, 7668; ASTM D 523, D 2457; DIN 67539) Resistance Shock resistance IK08 Mechanical properties Thermally pre-stressed, acid-frosted float glass Chemical resistance Alcohols, Dilute Acids, Dilute Alkalis, Esters, Hydrocarbons, Ketones, Household Cleaning agents (according to DIN 42 115) 58 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
- Page 59 The DLT-V72 is equipped with an internal speaker as standard (2 W). The system messages from the industrial PC are output via this speaker. The internal speaker is configured in the audio settings for the operating system in question. Advantech-DLoG DLT-V72 Series Manual V2.00 59 / 94...
-
Page 60: Environmental Conditions
US Highway Truck according to MIL-STD 810F IP protection class IP66 for DLT-V7210 and DLT-V7212 IP65 for DLT-V7210K 11.2.2. DLT-V72 with integrated UPS (optional) The environmental conditions are described in the following chapter: 12.1 Integrated UPS (optional) 60 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 61: Device Dimensions
Technical data 11.3. Device dimensions 11.3.1. DLT-V7210 Dimensions without add-ons (in mm) Fig. 11.1: Dimensions DLT-V7210 Advantech-DLoG DLT-V72 Series Manual V2.00 61 / 94... -
Page 62: Dlt-V7210K
Technical data 11.3.2. DLT-V7210K Dimensions without add-ons (in mm) Fig. 11.2: Dimensions DLT-V7210K 62 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 63: Dlt-V7212
Technical data 11.3.3. DLT-V7212 Dimensions without add-ons (in mm) Fig. 11.3: Dimensions DLT-V7212 Advantech-DLoG DLT-V72 Series Manual V2.00 63 / 94... -
Page 64: Position Of Vesa Drill Holes
DLT-V72. Otherwise, any DLoG GmbH warranty for this device will be void. 11.4.1. DLT-V7210 Dimensions without add-ons (in mm): Depth of thread: M6 x 6mm. Fig. 11.4: Position VESA drill holes DLT-V7210 64 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 65: Dlt-V7210K
Technical data 11.4.2. DLT-V7210K Dimensions without add-ons (in mm): Depth of thread: M6 x 6mm. Fig. 11.5: Position VESA drill holes DLT-V7210K Advantech-DLoG DLT-V72 Series Manual V2.00 65 / 94... -
Page 66: Dlt-V7212
Technical data 11.4.3. DLT-V7212 Dimensions without add-ons (in mm): Depth of thread: M6 x 6mm. Fig. 11.6: Position VESA drill holes DLT-V7212 66 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 67: Optional Equipment
Do not allow water or other liquids to come into contact with the device (exercise particular caution with corrosive liquids). Do not allow it to come into contact with fire. Advantech-DLoG DLT-V72 Series Manual V2.00 67 / 94... -
Page 68: Battery Pack Specifications
4 h (fully recharge a completely discharged battery pack). Charging temperature -10 to +50 °C (ambient temperature) Storage temperature -30 to +60 °C Maximum output power 40 W Battery voltage 7,2 V Battery capacity 2000 mAh 68 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 69: Charging The Battery Pack
Use only original battery packs from Advantech-DLoG. The battery packs must be authorized/approved for the DLT-V72. Do not use battery packs from any other Advantech-DLoG devices; they are not compatible. If battery packs from other manufacturers are inserted in the DLT-V72, the warranty provided by DLoG GmbH for this device will be rendered void. -
Page 70: Fig. 12.2: Inserting The Battery Pack In The Battery Pocket
Make sure that the removal tab of the battery pack is inside the sealing surface. Then reattach the battery cover (tightening torque 2 Nm). Fig. 12.2: Inserting the battery pack in the battery pocket 70 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 71: Screen Defroster (Optional)
Important: The temp LED indicates whether the screen defroster is active or inactive, not the touch LED above this key. For more information about operating, see chapter 3.3.2 Keys and LEDs in detail. Advantech-DLoG DLT-V72 Series Manual V2.00 71 / 94... -
Page 72: Integrated Low Profile Wi-Fi Antenna (Optional)
Band 1: 2400 to 2485 MHz Band 2: 5150 to 5875 MHz Antenna gain Max. 5 dBi (without loss through the cable) 50 Ω Impedance Polarization Vertical/Horizontal Maximum transmitting power 100 mW / 20 dBm 72 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 73: External Wi-Fi Antenna, Remote (Optional)
Connector labeling N type or TNC N, jack, female, bottom RSMA plug for RSMA socket on the terminal Scope of delivery 3 m antenna cable Maximum transmitting 100 mW / 20 dBm power Advantech-DLoG DLT-V72 Series Manual V2.00 73 / 94... -
Page 74: Wi-Fi Card (Optional)
Optional equipment 12.5. Wi-Fi card (optional) Technical data Wi-Fi PCIe MiniCard Integrated in the device at the factory by Advantech-DLoG (internal PCIe MiniCard slot). Driver Generally, only drivers for Wi-Fi cards approved by Advantech-DLoG can be integrated into operating system images. -
Page 75: Gps Receiver (Optional)
The GPS receiver has an integrated antenna for position data of the Global Positioning System (GPS) and communicates with the DLT-V72 via USB interface. Installation information is included with the GPS receiver. We recommend using only a GPS receiver approved by Advantech-DLoG. Fig. 12.5: GPS receiver (optional) Properties: −... -
Page 76: Keyboards And Keyboard Mounts (Optional)
Optional equipment 12.8. Keyboards and keyboard mounts (optional) Any USB keyboard can be connected to the DLT-V72. Advantech-DLoG offers the following keyboards: Fig. 12.7: SMALL keyboard − SMALL keyboard − Mountable − Protection class IP65 − Keyboard layouts: German, English, French Fig. -
Page 77: Scanner And Scanner Bracket (Optional)
If connected to COM1, the scanner can be powered through the interface with a voltage of 5 V. Use only scanners that have been approved by Advantech-DLoG. Optional scanner brackets are available for the DLT-V72. Fig. 12.10: Example scanner bracket Advantech-DLoG DLT-V72 Series Manual V2.00... -
Page 78: 12.10. Touch Stylus
PCT touchscreen: 12.11. USB recovery stick (optional) The optional Advantech-DLoG recovery stick allows images to be backed up and restored onto the DLT- V72 when necessary (backup & recovery). Please contact your Advantech-DLoG sales representative if needed. -
Page 79: Protective Film For Touchscreen (Optional)
An optional screen blanking function is available for the DLT-V72 for use in vehicles. The screen blanking functions darkens the DLT-V72 screen automatically as soon as the vehicle starts driving. Please observe the mounting instructions supplied with the screen blanking option. Advantech-DLoG DLT-V72 Series Manual V2.00 79 / 94... -
Page 80: 13. Maintenance
The work may only be performed in an ESD-protected, clean environment. ESD protective mats must be installed on the floor and on the worktable. The installer must also wear ESD shoes and clothing 80 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 81: Remove The Integrated Keyboard
New, replacement parts: − Silicon keyboard mat − 5 x screws ISO14580-m3x8 A2 Procedure Fig. 13.3: Position at which the 3 nubs are inserted − Place the silicon keyboard mat on the circuit board Advantech-DLoG DLT-V72 Series Manual V2.00 81 / 94... -
Page 82: Fig. 13.4: Attach Keyboard Grid
Align keys Press keyboard grid firmly Fig. 13.4: Attach keyboard grid Use a TX10 screwdriver to tighten the 5 mounting screws of the integrated keyboard. Tightening torque: Maximum 2 Nm. 82 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 83: 13.3. Regular Checks And Maintenance Of The Complete System
Do not use cleaning agents that contain ammonia or sulfur (tile cleaners, for example, contain ammonia). Do not use any abrasive glass cleaner or cloths that could scratch the touchscreen. Advantech-DLoG DLT-V72 Series Manual V2.00 83 / 94... - Page 84 Use a neutral glass cleaner without ammonia or isopropyl alcohol applied to a lint-free cloth. ATTENTION: Do not apply cleaning agent to the touchscreen; apply it to the cleaning cloth Then wipe off the touchscreen with it. 84 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
-
Page 85: Malfunctions And Troubleshooting
(Menu Control Panel -> Tablet PC Settings). This resets the sensitivity of the touchscreen to an operating system default setting, which can result in poorer detection of taps on the screen. Advantech-DLoG DLT-V72 Series Manual V2.00 85 / 94... - Page 86 No network Connection deactivated Activate connection in the Control Panel connection Invalid network settings Check network and protocol settings Network problems Check status LEDs on RJ45 connection socket, plug connection and cable 86 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
-
Page 87: Reasonably Foreseeable Misuse
Do not use in the EX zone (potentially explosive), on ships and rail vehicles. Do not use in life-supporting systems or safety-critical facilities. Permissible environmental conditions Observe the permissible environmental conditions. Advantech-DLoG DLT-V72 Series Manual V2.00 87 / 94... -
Page 88: Guidelines And Certificates
All components connected to the DLT-V72, as well as cable connections must also meet the legal EMC requirements for compliance with the EMC legislation. For this reason, screened bus, LAN cables and connectors must be used. Declaration of Conformity 88 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG... -
Page 89: Usa/Canada
Any change or modification which is not expressly approved in the corresponding pages can lead to the withdrawal of the operating license for this device. FCC IDs: PE15N FCC ID: TWG-SDCPE15N IC ID: 6616A-SDCPE15N WPEA-252NI FCC ID: RYK- WPEA252NI IC ID: 6158A-WPEA252NI Advantech-DLoG DLT-V72 Series Manual V2.00 89 / 94... -
Page 90: China
16.5. MIC Japan (previously TELEC) In several of the DLT-V72 series, the PE15N PCI Express Mini Card from Laird is used. Laird has implemented the following MIC certifications for this: − Article 2 Item 19, Category WW (2.4 GHz Channels 1 - 13) −... -
Page 91: End-Of-Life Device Disposal
They must be disposed of properly in accordance with local regulations. Please contact the responsible authorities in your country/region to find out about the applicable regulations, if necessary. Advantech-DLoG DLT-V72 Series Manual V2.00 91 / 94... -
Page 92: Technical Customer Support
Technical customer support Technical customer support Please contact your distributor, your sales representative or the Advantech-DLoG customer service to receive technical support. Please have the following information available: − Product name − Serial number − Description of the connected accessory −... -
Page 93: Return Shipment Form
[ ] Unit was already damaged on delivery (please enclose a copy of the delivery note) [ ] Delivery was incomplete Missing parts: [ ] The following error occurs when operating the unit: [ ] Separate error report is enclosed Advantech-DLoG DLT-V72 Series Manual V2.00 93 / 94... -
Page 94: List Of Figures
Fig. 13.1: Unscrew the mounting screws of the integrated keyboard .................. 81 Fig. 13.2: DLT-V7210K plus integrated keyboard components ................... 81 Fig. 13.3: Position at which the 3 nubs are inserted ......................81 Fig. 13.4: Attach keyboard grid ............................82 94 / 94 DLT-V72 Series Manual V2.00 Advantech-DLoG...
