13.3. Procedure
13.3.1. Inserting the rubber seal in the cable compartment
1. Insert the rubber seal in the cable compartment.
2. Place the rubber seal in the frame of the cable compartment (see figure).
3. Press the plugs of the rubber seal into the holes of the frame.
DLT-V72 Series User Manual V2.76

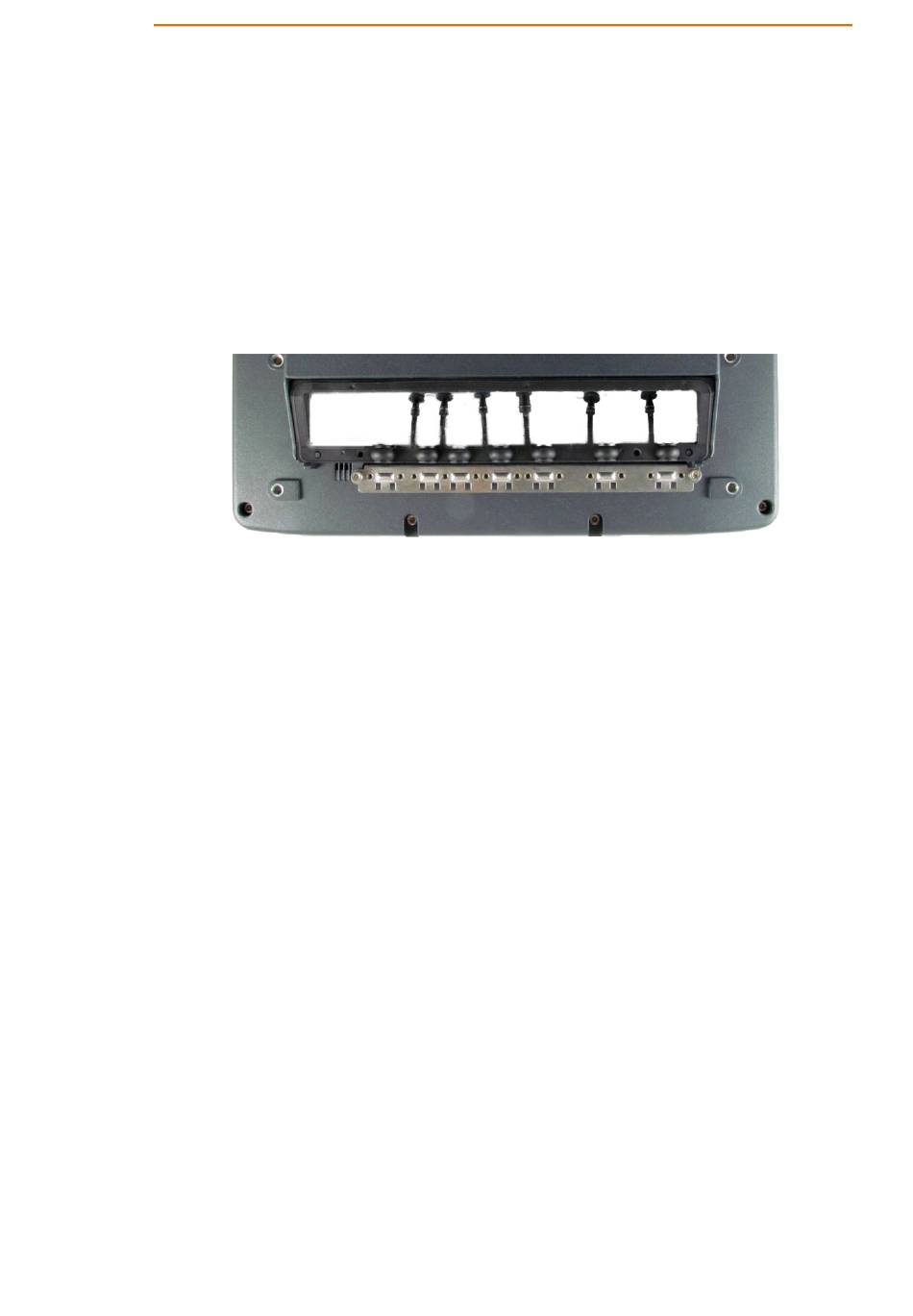

Fig. 13.4: Rubber seal inserted in the cable compartment
Electrical Installation
155 / 189
