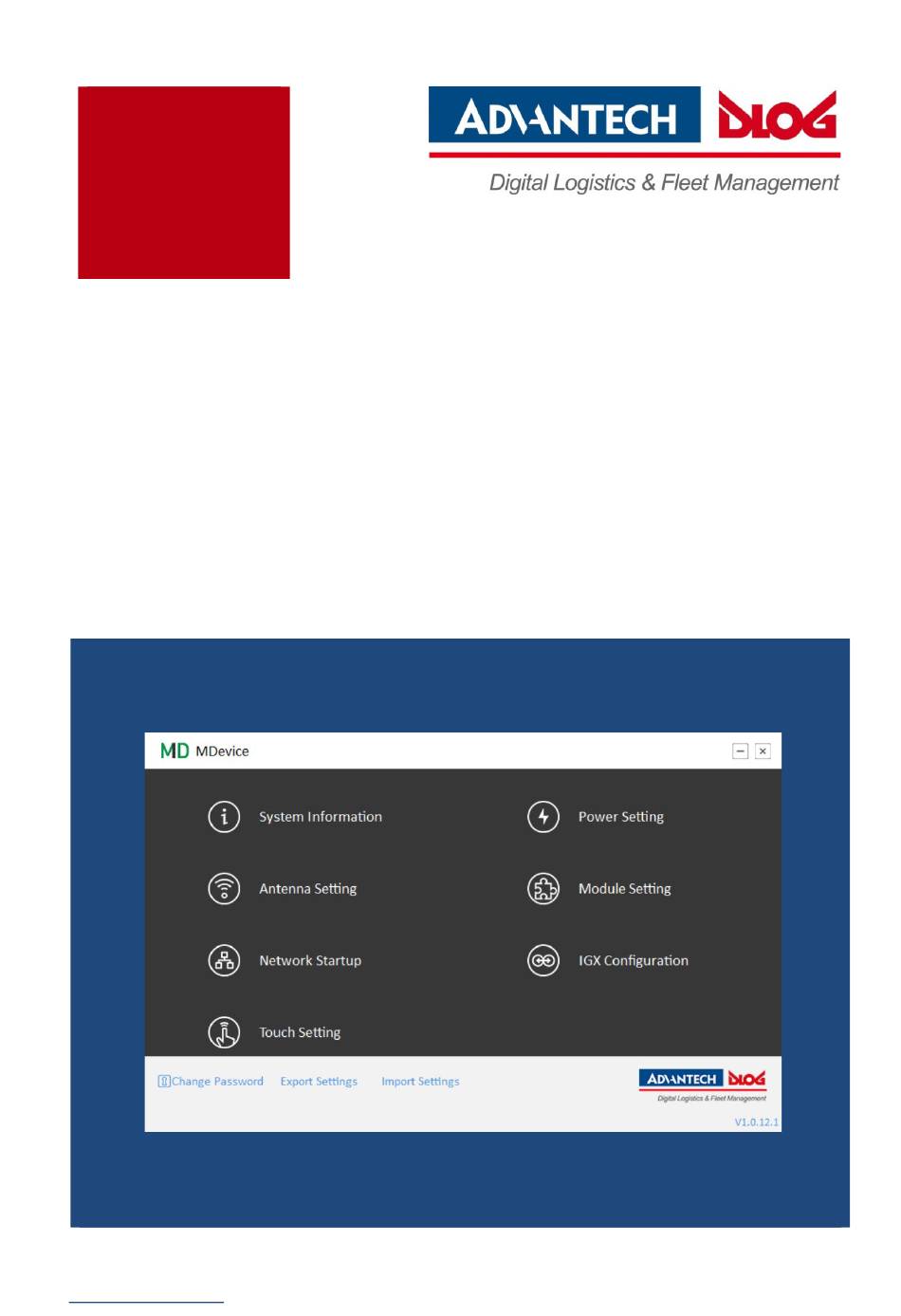

- Page 1 Manual English ADLoG MDevice DLT-V6210FL Manual V1.41 (EN) www.advantech.com...
- Page 2 IMPORTANT: Read this manual carefully. Keep for future reference. The software and hardware designations as well as the brand names used in this documentation are in most cases also registered trademarks and are subject to the international law (trademark, brand and protection laws). Windows ®...
-
Page 3: Table Of Contents
Content ABOUT THIS MANUAL .......................... 4 1.1. Target group / Qualifications......................... 4 1.2. Software version described .......................... 4 1.3. Current manuals ............................4 1.4. Area of applicability ............................4 1.5. Design method in this manual ........................5 SAFETY INFORMATION ........................6 STARTING THE PROGRAM ........................ -
Page 4: About This Manual
1.1. Target group / Qualifications NOTICE: Physical damage MDevice contains important settings for your Advantech-DLoG Industrial PC. Only skilled qualified persons are permitted to configure Industrial PCs with MDevice. If improper changes of the MDevice settings are performed by the customer, this releases Advantech from all liability for warranty claims. -
Page 5: Design Method In This Manual
About this manual 1.5. Design method in this manual The following icons and keywords are used in this manual to indicate dangers, notices etc. DANGER / WARNING / CAUTION DANGER means that death or severe bodily injury will occur if this information is not observed. -
Page 6: Safety Information
Safety information NOTICE: Property damage MDevice contains important settings for your Advantech-DLoG Industrial PC. Only skilled qualified persons are permitted to configure Industrial PCs with MDevice. If improper changes of the MDevice settings are performed by the customer, this releases Advantech from all liability for warranty claims. -
Page 7: Starting The Program
Starting the program Starting the program System requirements The following operating systems are supported: − Microsoft Windows ® 7 Professional. − Microsoft Windows ® Embedded Standard 7 (WES7) − Microsoft Windows ® Embedded 8 Standard (WE8S) − Microsoft Windows ® 8.1 Industry Professional −... -
Page 8: Main Menu: Overview Of Functions
MDevice software automatically recognizes the computer model and the installed operating system. MDevice differentiates the various systems and displays the configuration dialogues according to the respective device. DLT-V6210FL Main Menu Figure 4.1: MDevice main menu on DLT-V6210FL 8 / 23 MDevice Manual V1.41 Advantech Co., Ltd. -
Page 9: System Information
LCD Type ADV S/N − ADLoG S/N − Hard switch Off Count − − Over Temperature Count − Total Run Time DLT-V6210FL System Information Menu Figure 5.1: System information menu for DLT-V6210FL Advantech Co., Ltd. MDevice Manual www.advantech.com 9 / 23... -
Page 10: Power Setting
Power Setting Power Setting NOTE MDevice automatically recognizes the computer model and the installed operating system. MDevice differentiates the various systems and displays the configuration dialogues according to the respective device. So the parameter settings in the configuration dialogues can be different. Parameter settings (full set) Switch-On To configure which source is allowed to turn on the device. -
Page 11: Figure 6.1: Power Setting Menu For Dlt-V6210Fl
NOTE: FACTORY SETTING. Not customer Temperature configurable. Threshold For your information: The temperature threshold of each sensor for switch-on/off event is defined. DLT-V6210FL Power Setting Menu Figure 6.1: Power setting menu for DLT-V6210FL Advantech Co., Ltd. MDevice Manual www.advantech.com 11 / 23... -
Page 12: Function Key Setting
Function Key Setting Function Key Setting NOTE This option is not available at DLT-V6210FL. Parameter settings (full set) User can switch the type of function. There are 3 types of function user can set: VK codes The function key which is set to this type will send virtual key codes which supports max to 3 combinations of keys. -
Page 13: Module Setting
WLAN / BT / WWAN / Enable/Disable the respective wireless technology DLT-V6210FL Module Setting Menu Figure 8.1: Module Setting Menu for DLT-V6210FL NOTE Hardware based WLAN support is always enabled at DLT-V6210 in combination with WEC7 and cannot be disabled using MDevice utility. -
Page 14: Antenna Settings
EIRP (Equivalent Isotropically Radiated Power), in the 2.4 GHz frequency band is set at 20 dBm (100 mW). Set the transmitting power of the Advantech-DLoG antenna so that the permitted EIRP limit value is complied with. Example worldwide:... -
Page 15: Antenna Settings Menu
User can select using internal antenna or external antenna or auto switch. Other than that, WiFi Config Tool also can launch WiFi setting utility. 9.3. WiFi Config Tool IGX Figure 9:2: WiFi Config Tool IGX for DLT-V6210FL Advantech Co., Ltd. MDevice Manual www.advantech.com... -
Page 16: Brightness Setting
Brightness setting Brightness setting NOTE This setting is not available at DLT-V6210FL. 16 / 23 MDevice Manual V1.41 Advantech Co., Ltd. -
Page 17: Network Startup
Network Startup Network Startup Figure 11.1: Network Startup Menu Network startup feature will check whether the device is connected with server at boot-up stage and take action according to the check result. Enable Network Startup Checked if user want to enable this feature Programs for Startup It's for setting the startup program list, user can add program by clicking Add program ... -
Page 18: Touch Setting
Touch setting Touch setting For Touch Setting, please enter [MDevice] -> Select [Touch Setting]. Figure 12:1: Touch Setting for DLT-V6210FL NOTE Touch Mode allows Finger and Glove mode to be set to allow better touch interaction while wearing gloves. 18 / 23 MDevice Manual V1.41... -
Page 19: Export \ Import Settings
Export \ Import Settings To export and import done MDevice Settings use [Export Settings] and [Import Settings] feature from main menu. Figure 13:1: Export Settings for DLT-V6210FL Figure 13:2: Export Settings Success message for DLT-V6210FL Advantech Co., Ltd. MDevice Manual www.advantech.com... -
Page 20: Figure 13:3: Import Settings For Dlt-V6210Fl
Export \ Import Settings Figure 13:3: Import Settings for DLT-V6210FL Figure 13:4: Import Settings Success message for DLT-V6210FL 20 / 23 MDevice Manual V1.41 Advantech Co., Ltd. -
Page 21: Technical Customer Support
Technical customer support Technical customer support AdvantechService & Support Find out about our worldwide and comprehensive service offering: Web: www.advantech.com E-Mail: aeu.helpdesk@advantech.com Manufacturer address Advantech Co., Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 11491, Taiwan, R.O.C. Web: www.advantech.com E-Mail:... -
Page 22: List Of Figures
Figure 8.1: Module Setting Menu for DLT-V6210FL ....................13 Figure 9.1: Antenna Settings Menu for DLT-V6210FL ................... 15 Figure 9:2: WiFi Config Tool IGX for DLT-V6210FL ....................15 Figure 11.1: Network Startup Menu ........................17 Figure 12:1: Touch Setting for DLT-V6210FL ......................18 Figure 13:1: Export Settings for DLT-V6210FL ...................... - Page 23 For Your Notes MDevice Manual V1.41 Advantech Co., Ltd. 23 / 23...
