Advantech-DLoG DLT-V72 Mounting Instructions

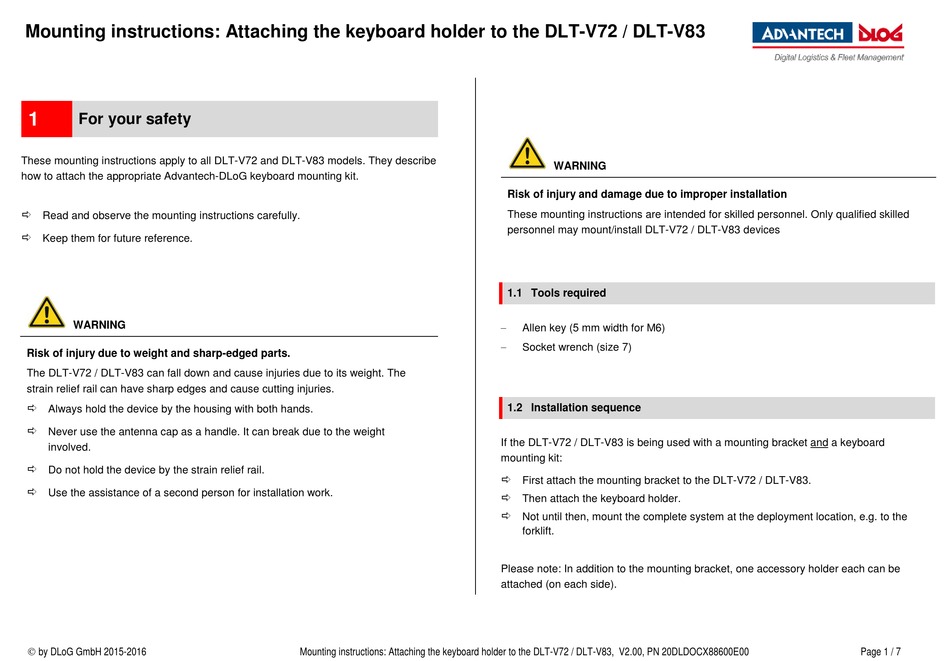

Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
1
For your safety

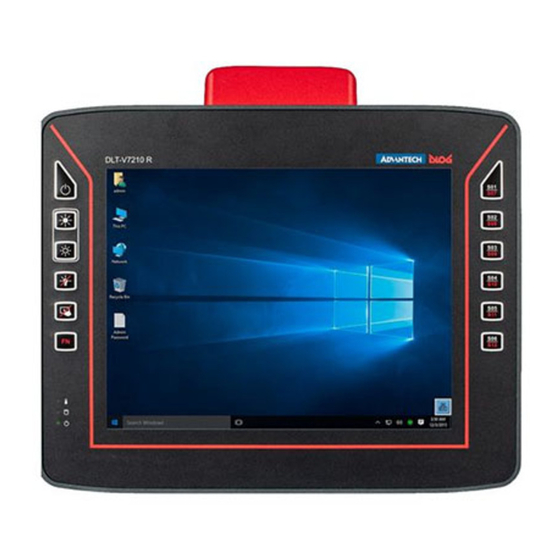

These mounting instructions apply to all DLT-V72 and DLT-V83 models. They describe
how to attach the appropriate Advantech-DLoG keyboard mounting kit.

Read and observe the mounting instructions carefully.

Keep them for future reference.
WARNING
Risk of injury due to weight and sharp-edged parts.
The DLT-V72 / DLT-V83 can fall down and cause injuries due to its weight. The
strain relief rail can have sharp edges and cause cutting injuries.

Always hold the device by the housing with both hands.

Never use the antenna cap as a handle. It can break due to the weight
involved.

Do not hold the device by the strain relief rail.

Use the assistance of a second person for installation work.
 by DLoG GmbH 2015-2016 Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V2.00, PN 20DLDOCX88600E00
WARNING
Risk of injury and damage due to improper installation
These mounting instructions are intended for skilled personnel. Only qualified skilled
personnel may mount/install DLT-V72 / DLT-V83 devices
1.1 Tools required
−
Allen key (5 mm width for M6)
−
Socket wrench (size 7)
1.2 Installation sequence
If the DLT-V72 / DLT-V83 is being used with a mounting bracket and a keyboard
mounting kit:

First attach the mounting bracket to the DLT-V72 / DLT-V83.

Then attach the keyboard holder.

Not until then, mount the complete system at the deployment location, e.g. to the
forklift.
Please note: In addition to the mounting bracket, one accessory holder each can be
attached (on each side).
Page 1 / 7
