13.3.6. Close off unused cable openings
13.3.7. Attach the cable cover
1. Place the cable cover in the DLT-V72 housing slot.
2. Screw the thin headless screws loosely into the holes of the cable cover.
3. Then fully tighten the screws with 3 Nm torque.

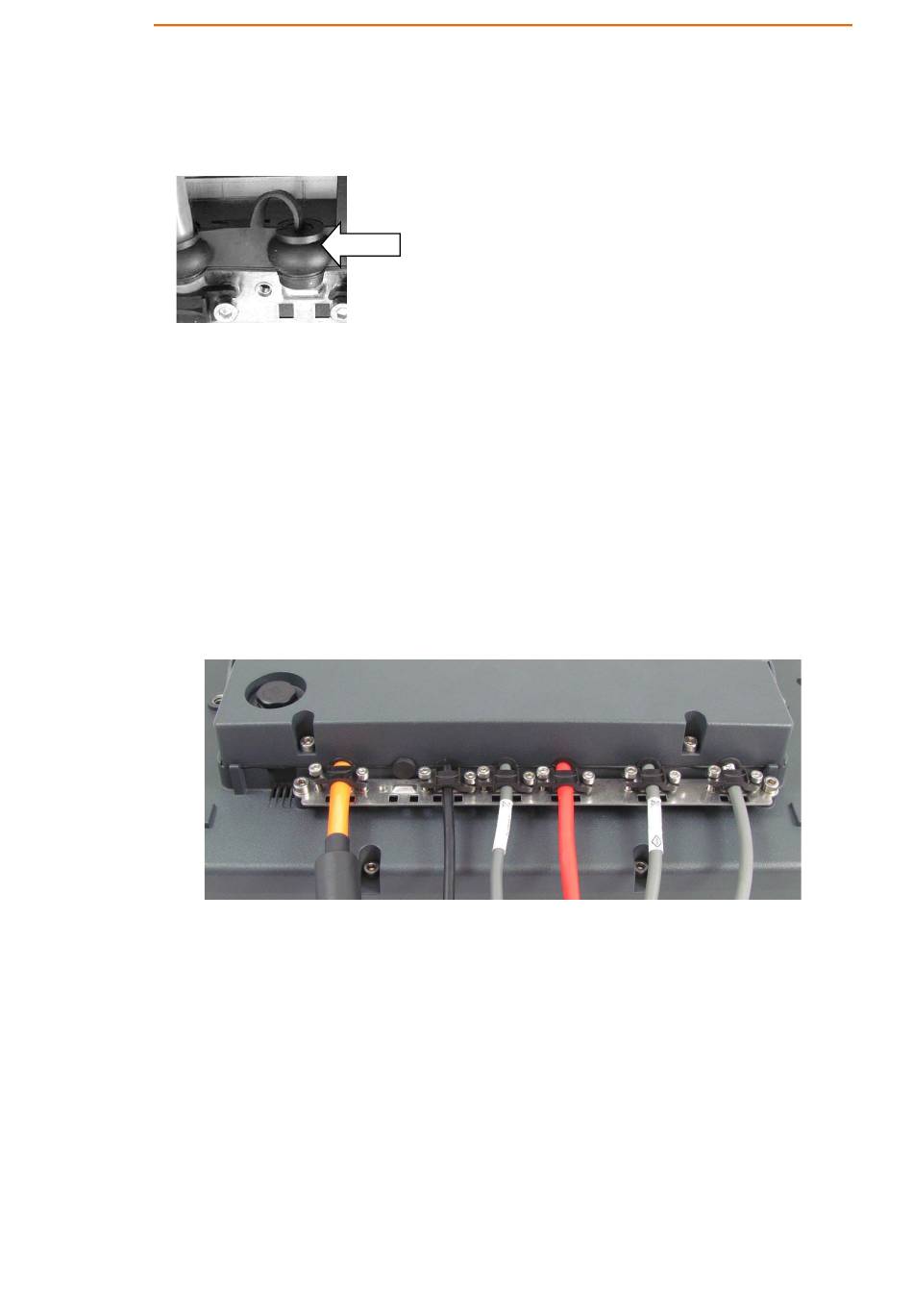

Example for a correctly attached cable cover:
NOTICE
DLT-V72 Series User Manual V2.76
Close off all unused cable openings of the rubber
seal using the accompanying blind plugs so that
they are sealed.
Fig. 13.5: Cable cover closed and screwed together
Prevent system malfunction and property damage
To prevent fluids or dust penetrating the DLT-V72 during ongoing
operation, the cable compartment on the device must be sealed using
the corresponding cable cover. The protection class is only ensured if
the cable cover is properly installed.
