12.2.5. Attach the mounting bracket
The DLT-V72 housing has holes provided for attaching a mounting bracket.
4 x cylinder head screws DIN912 M6
Screw-in depth: M6 x 6 mm
Washers DIN 125 - A 6.4
DLT-V72 Series User Manual V2.76

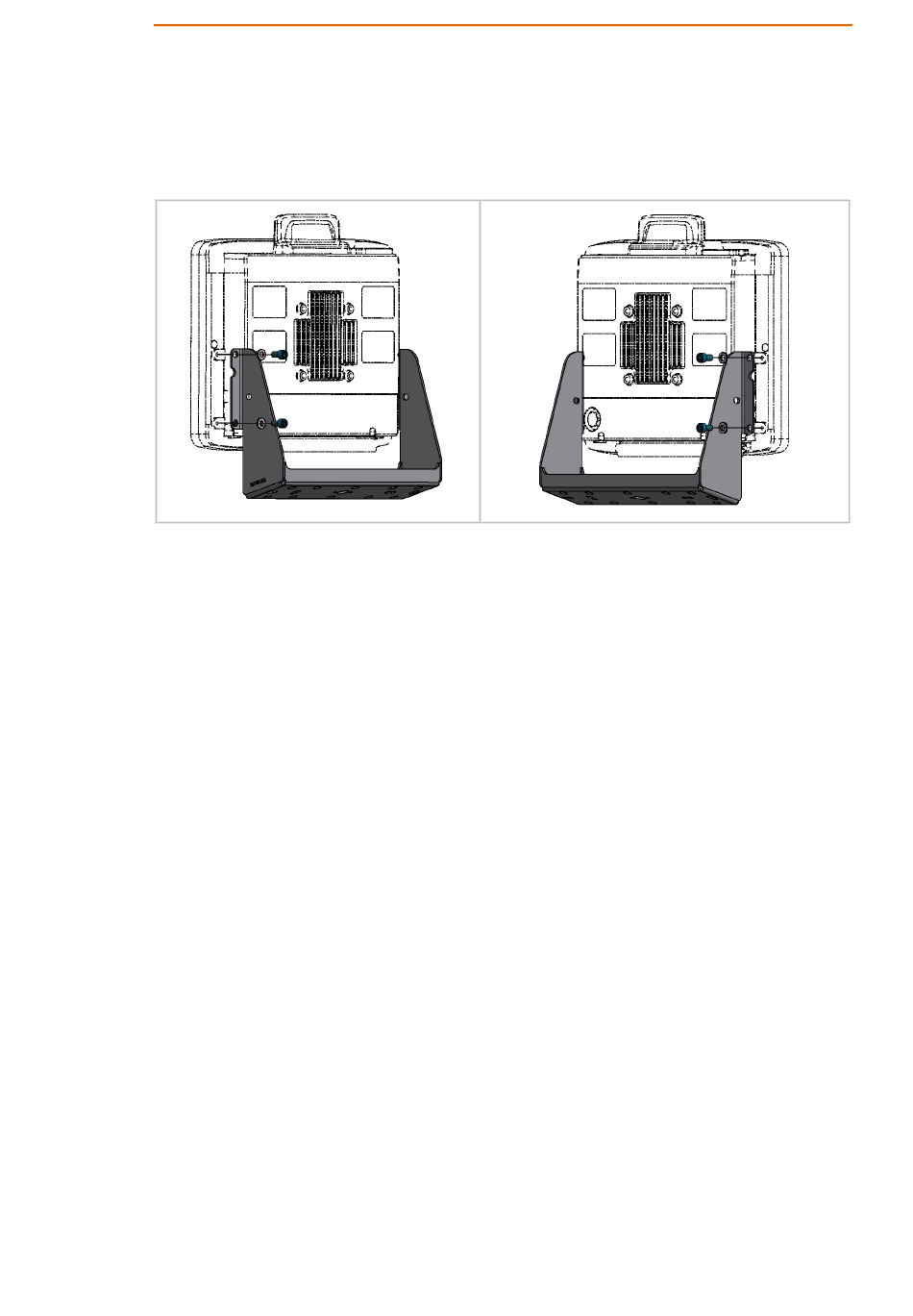

Fig. 12.2: Mounting bracket on the DLT-V72
Mechanical Installation
147 / 189
