12.2.4. VESA mounting hole pattern
The rear side of the DLT-V72 has a VESA-compatible mounting hole pattern with 75 x
75 mm for a RAM Mount bracket or swivel mounting.
Screw-in depth VESA mounting hole pattern: M6 x 6 mm

Suitable mounting material: Cylinder-head screws int.hex DIN912 M6

Washers ISO 8738 (DIN 1440)-A6-A2

DLT-V72 Series User Manual V2.76

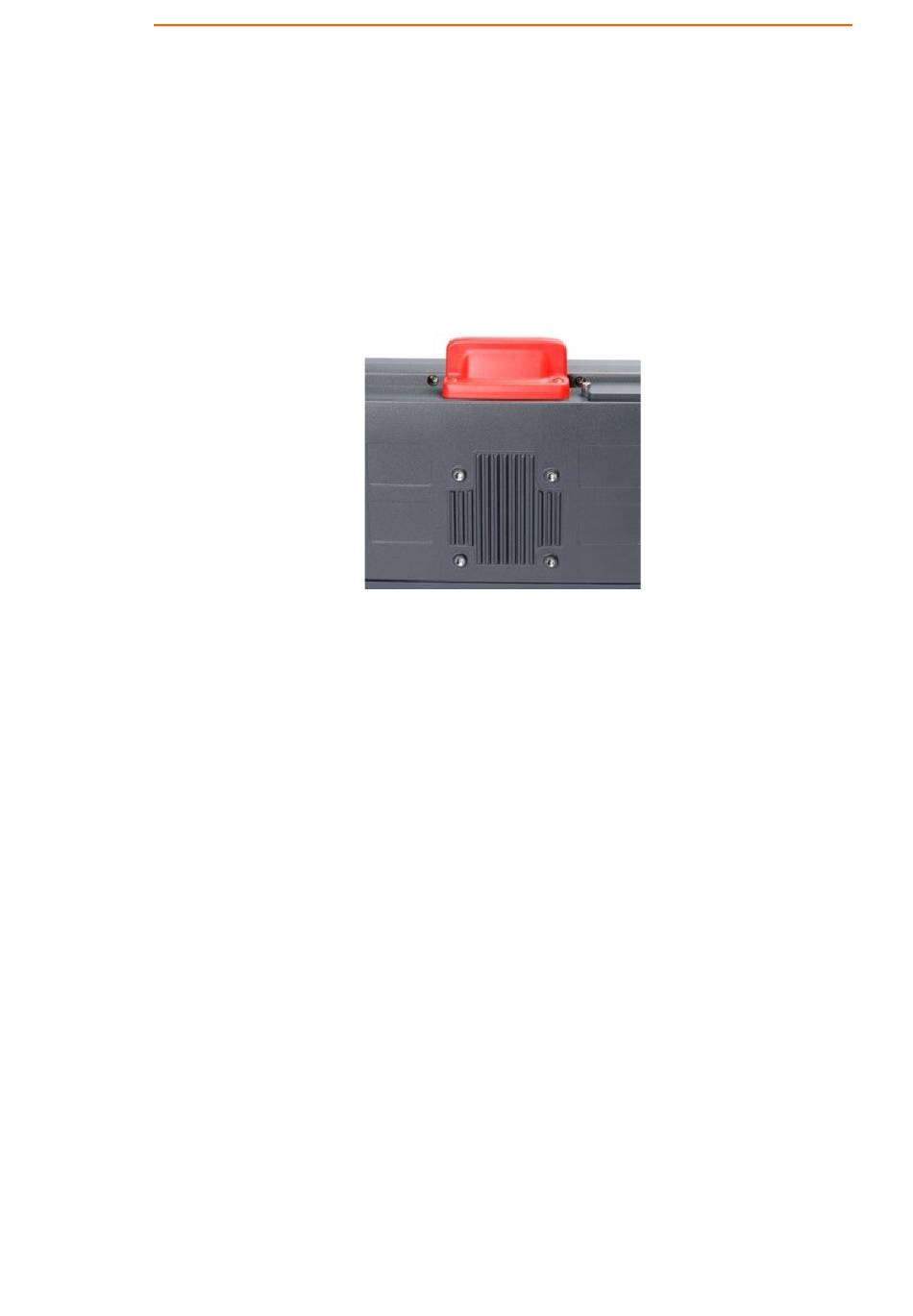

Fig. 12.1: VESA mounting hole pattern on the rear side of the DLT-V72
