Follow these steps to open antenna type "WLAN, WWAN, LTE 4G":
Tools required:
Torx screwdriver, Tx20

Allen key size 7

Step 1: Opening the antenna cap:
1. Unfasten both screws on the antenna cap with a Torx screwdriver, Tx20.
2. Remove the antenna cap carefully.

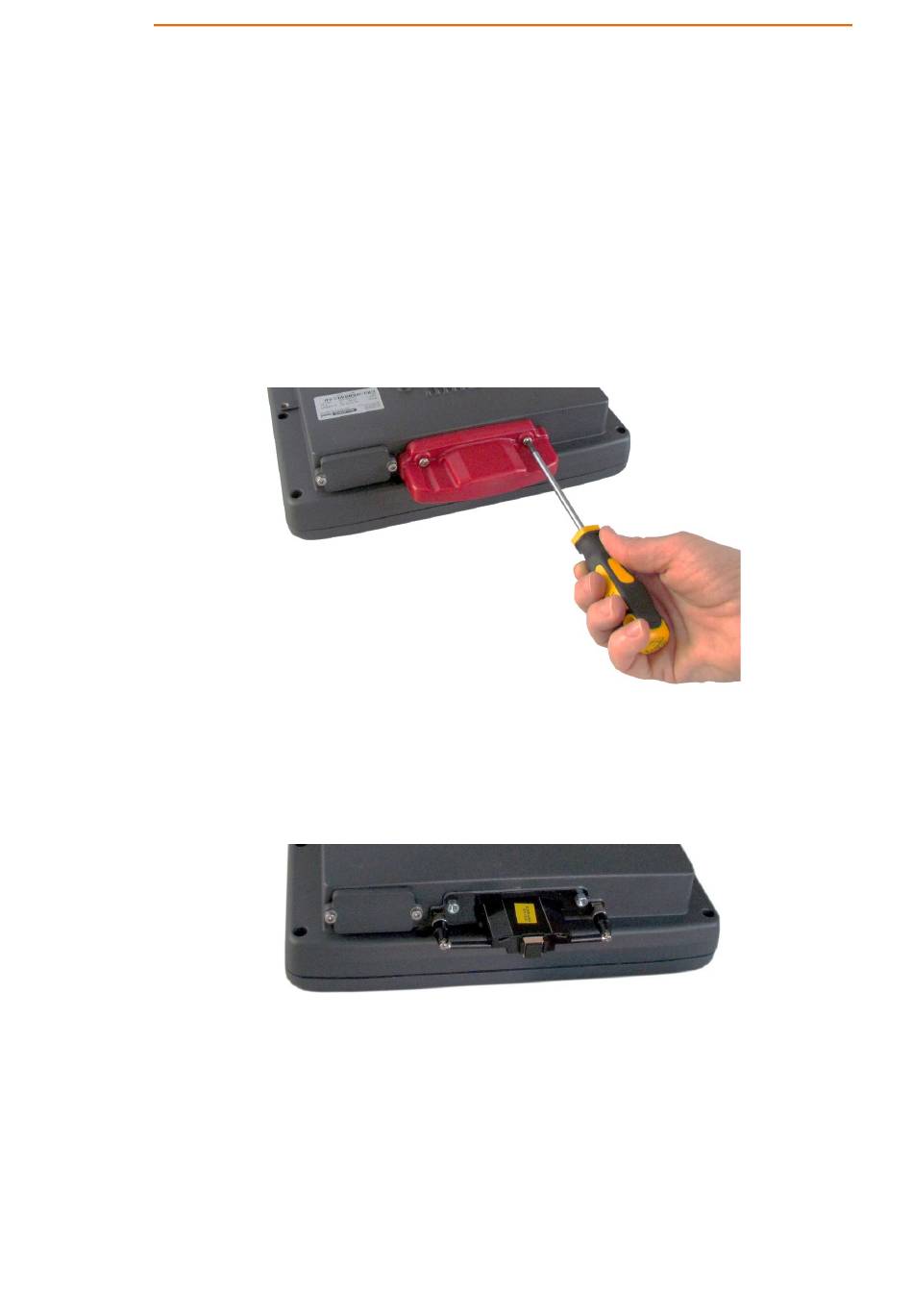

Fig. 7.8: Opening the WLAN, WWAN LTE 4G antenna (Torx Tx20)
The antenna module is located underneath the antenna cap:
Fig. 7.9: WLAN, WWAN LTE 4G antenna opened
