4.7.3.2

LVDS

For LVDS functionality on connector X38, set DIP SW8.1 to OFF.

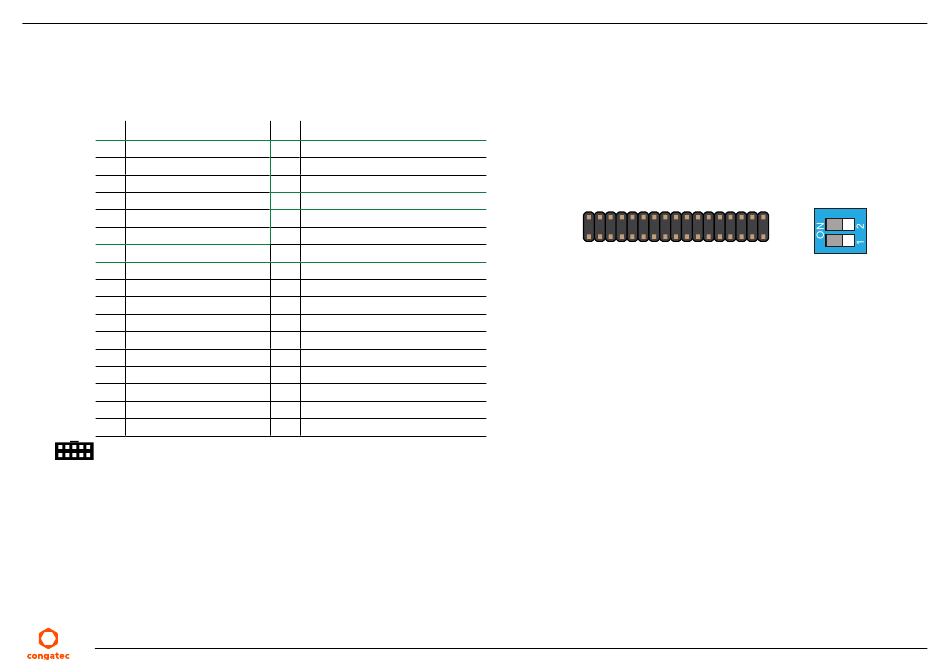

Table 23 X38 - LVDS Pinout Description
Pin Signal
1 LVDS_DDC_DAT
3 N.C
5 GND
7 LVDS0_D0+
9 LVDS0_D1-
11 LCD0_BKLTEN
13 LVDS0_D2-
15 LVDS0_CLK-
17 N.C.
19 LVDS0_D3-
21 LVDS1_D0-
23 GND
25 LVDS1_D1+
27 LVDS1_D2-
29 GND
31 LVDS1_CLK
33 LVDS1_D3+
Connector Type
X38: 2 mm, 2 x 17-pin socket
Copyright © 2025 congatec GmbH
Pin Signal
2 LVDS_DDC_CLK
4 N.C
6 LVDS0_D0-
8 LCD0_ VDD_EN
10 LVDS0_D1+
12 LVDS0_D2+
14 N.C.
16 LVDS0_CLK+
18 LVDS0_D3+
20 GND
22 LVDS1_D0+
24 LVDS1_D1-
26 GND
28 LVDS1_D2+
30 LVDS1_CLK+
32 N.C
34 LVDS1_D3-
TEVA31_m001
X38 SW8
