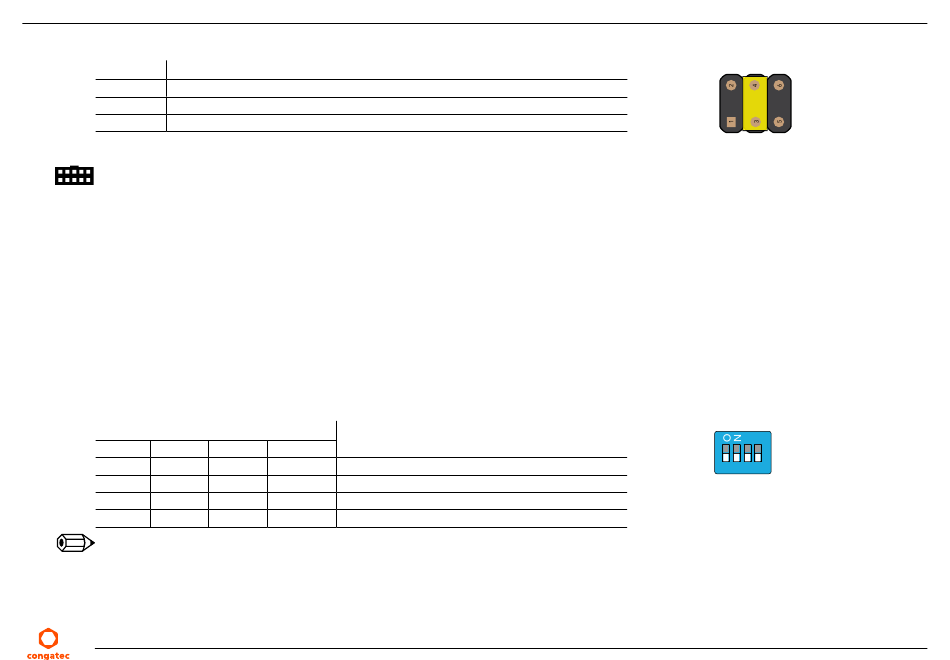

Table 12 JP9 - Module PWR_OK Selection
Pin Description
1 - 2 Adds 3.3V pull-up with 1 kΩ to PWR_OK signal (for debug purposes)
3 - 4 Connects PWR_OK signal from ATX power supply (default)
5 - 6 Connects PWR_OK signal from onboard DC/DC regulators (only if DC banana input is used)
Connector Type
JP9: 2.54 mm, 2-pin jumper
4.3.3

Power Control

The module's SUS_S3# signal controls the main power supplies: ATX PSU or on-board voltage regulators.
The signal SUS_S3# goes high when the system enters a Powered-On / Working power state (S0) and goes low during Suspend / Sleep (S3/S4)
or Soft Off (S5).
The module's RSMRST_OUT# signal controls power for all USB ports. This prevents backpowering from USB devices to the chipset on the
module.
Table 13 SW1 - USB Ports Enable Control
Switch Position
SW1 SW2
ON OFF
OFF ON
OFF OFF
OFF OFF
Note
Set only one switch to "ON".
Copyright © 2025 congatec GmbH
Description
SW3 SW4
OFF OFF RSMRST_OUT# default)
OFF OFF SUS_SLP3#_LATCH
ON OFF SUS_SLP3#
OFF ON Standby Pull-up resistor
TEVA31_m001
JP9
SW1
1 2 3 4
