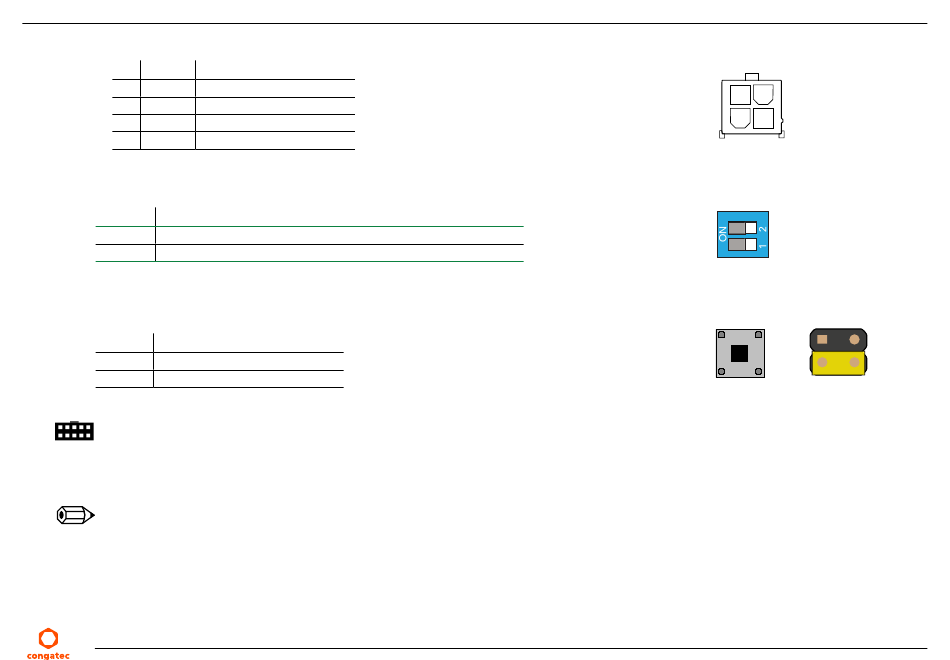

X67 - 4-pin ATX Power
Pin Signal Description
1 GND Power ground
2 GND Power ground
3 +12V Power supply +12 VDC
4 +12V Power supply +12 VDC
Table 6 SW21.1 - ATX PSU Control Description
Setting Configuration
OFF ATX PSU controlled by COM Express module (default)
ON ATX PSU force ON - for debug only
Table 7 JP11 - ATX 5V Standby Connection
Pin Description
1-2, 3-4 5V standby connected (default)
1-3, 2-4 5V standby disconnected
Connector Type
X63: Standard 24-pin ATX power connector
X67: Standard 4-pin ATX12V power connector
Note
1. The ATX 5V standby disconnection is for debug purpose only. Don't use it for normal operation.
2. The SW26 button serves the same function as the JP11 jumper. The 5V standby will be disconnected by pressing SW26.
Copyright © 2025 congatec GmbH TEVA31_m001
X67
4 3
2 1
SW21
SW26
JP11
1 2
3 4
