conga-QEVAL /Qseven
2.0
®
Detailed description of the congatec Qseven
2.0 evaluation carrier board
User's Guide
Revision 1.1
Copyright © 2014 congatec AG
QEV2m11
1/49

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the conga-QEVAL/Qseven 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Congatec conga-QEVAL/Qseven 2.0

Summary of Contents for Congatec conga-QEVAL/Qseven 2.0

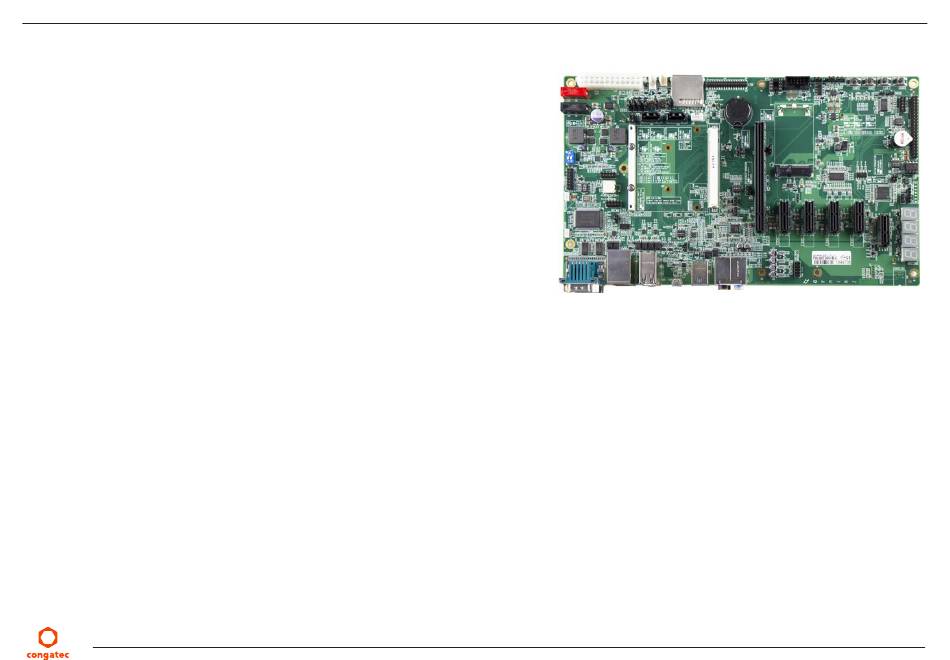

  • Page 1 ® conga-QEVAL /Qseven ® Detailed description of the congatec Qseven 2.0 evaluation carrier board User's Guide Revision 1.1 Copyright © 2014 congatec AG QEV2m11 1/49...
  • Page 2 Revision History Revision Date (yyyy.mm.dd) Author Changes Official release 2014.05.09 • Updated section 5.2.7 “Universal Serial Bus (USB)”. 2015.01.15 • Updated the User’s Guide to revision B.2. • Copyright © 2014 congatec AG QEV2m11 2/49...
  • Page 3 In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information...
  • Page 4 This link icon is located in the top left corner of each page. It provides a direct link to the connector layout diagram on page 10 of this document. Copyright Notice Copyright © 2014, congatec AG. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec AG.
  • Page 5 (c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
  • Page 6 AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you.

  • Page 7: Table Of Contents

    LVDS Flat Panel Interface ............32 5.2.11.1 Flat Panel and Backlight Power Supply ........34 5.2.11.2 Flat Panel and Backlight Power Supply Connection ....35 5.2.11.3 Flat Panel Configuration Data ..........36 5.2.12 PCI Express Routing ..............36 7/49 Copyright © 2014 congatec AG QEV2m11...

  • Page 8: Introduction

    Additionally, the schematics for the Qseven evaluation ® ® carrier board can be found on the congatec website. QEVAL 2.0 QEVAL 2.0 evaluation carrier board is designed according to Qseven specification 2.0 and supports both x86 and ARM modules. With this ®...

  • Page 9: Jumper And Dip Switch Settings

    FAN_PWMOUT / SPKR / FAN_TACHOIN signals are routed to a GPIO of the i.MX6 SoC (the signals must be implemented in the Kernel first before they can be functional) OFF (BOOT_ALT# Dip 1 of Switch M13 must be set to ‘ON’ when updating the conga-QMX6 bootloader. Jumper) Copyright © 2014 congatec AG QEV2m11 9/49...

  • Page 10: Connector Layout

    USB 4 USB 1 (down) (up) & HDA Header COM0 USB 2 1 S/PPDIF (down) (down) USB3 (down) NOTE: USB OTG supported on revision B.2 and later. USB Client supported on earlier revisions. Copyright © 2014 congatec AG QEV2m11 10/49...
  • Page 11 Connector Layout Bottom Side LVDS Connector (CN9) Copyright © 2014 congatec AG QEV2m11 11/49...

  • Page 12: Specifications

    5V_SB Standby Power Supply +5VDC Power Supply +5VDC Power Supply +12DC Power Supply +5VDC +12V Power Supply +12DC Power Supply +5VDC +12V Power Supply +3.3VDC Power Ground +3.3V Copyright © 2014 congatec AG QEV2m11 12/49...
  • Page 13 The QEVAL 2.0 can also be used with +12VDC power supply (connector M8 and M9). The +3.3V and +5V used by some devices on the QEVAL 2.0 are generated onboard from the +12V power supply. +12V Configuration Connector (M8) (M9) Ground +12VDC ±5% Connector Type M8,M9: 4mm diameter plug Copyright © 2014 congatec AG QEV2m11 13/49...

  • Page 14: Pwr_Ok Signal

    'SUS_S3#' signal. This transitions the system to Full-On (S0). The way Suspend to RAM is implemented on a Qseven module may differ depending on the module manufacturer. For this reason, it is ® Copyright © 2014 congatec AG QEV2m11 14/49...

  • Page 15: Cmos Battery

    Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. Note To fulfill the requirements of the EN60950, the QEVAL 2.0 incorporates two current-limiting devices (resistor and diode) in the battery power supply path. Copyright © 2014 congatec AG QEV2m11 15/49...

  • Page 16: Environmental Specifications

    Operation: 0° to 60°C Storage: -20° to +80°C Humidity Operation: 10% to 90% Storage: 5% to 95% Note The above operating temperatures must be strictly adhered to at all times. Humidity specifications are for non-condensing conditions. Copyright © 2014 congatec AG QEV2m11 16/49...

  • Page 17: Connector Description

    Power Ground HDA_SYNC Serial Bus Synchronization. SMB_CLK SMBus Clock line. / AC97_SYNC Serial Bus Synchronization / GP1_I2C_CLK Multiplexed with General Purpose I²C bus #1 / I2S_WS Multiplexed with I2S Word Select clock line 17/49 Copyright © 2014 congatec AG QEV2m11...
  • Page 18 LVDS Primary channel 1- / LVDS_B1- LVDS Secondary channel 1- 107 eDP0_TX2+ eDP Primary channel 2+ 108 eDP1_TX2+ eDP Secondary channel 2+ / LVDS_A2+ LVDS Primary channel 2+ / LVDS_B2+ LVDS Secondary channel 2+ Copyright © 2014 congatec AG QEV2m11 18/49...
  • Page 19 155 PCIE_CLK_REF+ PCI Express Reference Clock+ 156 PCIE_WAKE# PCI Express Wake event 157 PCIE_CLK_REF- PCI Express Reference Clock- 158 PCIE_RST# Reset Signal for external devices 159 GND Power Ground 160 GND Power Ground Copyright © 2014 congatec AG QEV2m11 19/49...
  • Page 20 Power supply +5VDC ±5% Power supply +5VDC ±5% 225 VCC 226 VCC 227 VCC Power supply +5VDC ±5% Power supply +5VDC ±5% 228 VCC Power supply +5VDC ±5% Power supply +5VDC ±5% 229 VCC 230 VCC Copyright © 2014 congatec AG QEV2m11 20/49...

  • Page 21: Smbus

    The address inputs (A0-A2) and write protect (WP) pin of I²C EEPROM can be configured with DIP switch SW1. By default, the DIP switches are set to ON (LOW state). Copyright © 2014 congatec AG QEV2m11 21/49...

  • Page 22: Spi Bus

    Signal (X8) +3.3V +3.3V SPI_MOSI SPI_CS0# SPI_MISO SPI_CS1# SPI_SCK N.C. SO8 Socket U4 Signal Signal EEPROM SO8 Socket Chip Select Input Data Input Data Output Serial Clock Input Write Protect Input Hold Input Copyright © 2014 congatec AG QEV2m11 22/49...

  • Page 23: Hda Audio

    The QEVAL 2.0 has a HDA (High Definition Audio) codec (Realtek ALC888S) mounted on it. The 5.1 channel audio output interface of this codec is available on the connector described below. The drivers for this codec can be found in the ‘Drivers’ section under ‘conga-QEVAL’ on the congatec website at www.congatec.com. Audio X16...
  • Page 24 The I2C signals at pins B5 and B6 are necessary for I2S audio codec support. The QEVAL 2.0 supports also optional S/PDIF digital input (X23) and S/PDIF output 2 (X25) interfaces. The connectors for these interfaces are not assembled by default. Copyright © 2014 congatec AG QEV2m11...

  • Page 25: Lpc Super I/O Device

    Before you insert a module that does not support LPC (module with GPIO support such as conga-QMX6), you must set switch 1 and switch 4 of DIP switch SW2 to OFF. This setting turns off the onboard super I/O device. Copyright © 2014 congatec AG QEV2m11...

  • Page 26: Kbc Interface

    Pin LPC /GPIO LPC_AD0 / GPIO0 +5V supply LPC_AD1 / GPIO1 +3.3V supply LPC_AD2 / GPIO2 LPC_AD3 / GPIO3 LPC_CLK / GPIO4 LPC_LDRQ# / GPIO7 LPC_FRAME# / GPIO5 LPC_RST# SERIRQ / GPIO6 BOOT_ALT# Copyright © 2014 congatec AG QEV2m11 26/49...

  • Page 27: Universal Serial Bus (Usb)

    USB Port 4 USB Port 3 Micro-AB (front view) (front view) Note USB ports 2 and 3 support wake-on-USB. The support of USB port 3 wake-on-USB depends on the setting of DIP switch 9.3. 27/49 Copyright © 2014 congatec AG QEV2m11...
  • Page 28 Routes USB 2.0 signals to mini-PCIe connector X31 (disables USB 2.0 port 2) Routes USB 2.0 port 1 signals to connector X53 (micro USB AB connector) Routes USB 2.0 port 1 signals to standard USB A connector X34 (disables USB OTG support) Copyright © 2014 congatec AG QEV2m11 28/49...
  • Page 29 The support of USB OTG on Qseven Computer-On-Module was introduced with Qseven Specification 2.0 Errata Sheet (Version E.2.0-001). To comply with the Errata Sheet, congatec implemented USB OTG in hardware revision B.2 of the QEVAL 2.0. Earlier revisions do not support USB OTG.

  • Page 30: Ethernet 10/100/1000

    1 - 2 LAN controller is powered from standby voltage (default) (X33) 2 - 3 LAN controller is powered from main voltage Connector Type CN7: 8 pin RJ45 plug X33: 2.54mm grid Jumper Copyright © 2014 congatec AG QEV2m11 30/49...

  • Page 31: Serial Ata

    The QEVAL 2.0 provides connector CN6 for 2.5” SATA auxiliary power. This connector supplies 3.3V and 5V only. You can order the auxiliary power cable with PN: 14000032 from congatec AG. For more information, contact congatec sales department. CN6 Pinout Description...

  • Page 32: Lvds Flat Panel Interface

    LVDS Channel B differential clock LVDS_B_CLK- LVDS Channel B differential clock N.C. LVDS_B3+ LVDS Channel B differential pairs LVDS_B3- LVDS Channel B differential pairs Connector Type LVDS (X41) X41: 34 pin, 2 row 2mm grid female. Copyright © 2014 congatec AG QEV2m11 32/49...
  • Page 33 With Jumper X50, you can set up the polarity of the backlight enable signal ‘LVDS_BLEN’ from the Qseven module. ® Backlight Polarity Configuration Jumper X50 Config 1 - 2 Backlight enable HIGH active (default) (X50) 2 - 3 Backlight enable LOW active Connector Type X50: 2.54mm grid Jumper. Copyright © 2014 congatec AG QEV2m11 33/49...

  • Page 34: Flat Panel And Backlight Power Supply

    +5VDC Backlight Voltage LCD Power Config (X47) Jumper X47 Configuration 1 - 2 +3.3VDC LCD Voltage 2 - 3 +5VDC LCD Voltage (default) Default Settings: Connector Type ALL ON X46 and X47 2.54mm grid Jumpers. Copyright © 2014 congatec AG QEV2m11 34/49...

  • Page 35: Flat Panel And Backlight Power Supply Connection

    • The QEVAL 2.0 carrier board is equipped with a Maxim MAX5362 device referred to in the diagram below as “DAC”. +12V [4] +12V [3] +5V +3.3V LVDS_BLEN LVDS_PPEN [1] VDD_LCD [5] LVDS_PPEN [2] VDD_BL [6] LVDS_BLEN BL_CTRL [8] BL_CTRL [7] BL_CTRL_AN [9] GND [10] GND Copyright © 2014 congatec AG QEV2m11 35/49...

  • Page 36: Flat Panel Configuration Data

    Flat Panel Configuration Data 5.2.11.3 The flat panel configuration data (EPI extended EDID™ 1.3 file) for most common displays is included in the congatec Qseven CPU module’s ® system BIOS. The customer can also use a customized EPI extended EDID™ 1.3 file that can be stored in a serial EEPROM located on the QEVAL 2.0 (DIL 8 socket U37).
  • Page 37 N.C. +3.3V +3.3V N.C. N.C. +3.3V +3.3V +3.3V Standby +3.3V Standby +3.3V +3.3V WAKE0# PCIE_RST# WAKE0# PCIE_RST# N.C. N.C. PCIE3_CLK+ PCIE4_CLK+ PCIE3_TX+ PCIE3_CLK- PCIE4_TX+ PCIE4_CLK- PCIE3_TX- PCIE4_TX- PCIE3_RX+ PCIE4_RX+ PRSNT#2_S2 PCIE3_RX- PRSNT#2_S3 PCIE4_RX- 37/49 Copyright © 2014 congatec AG QEV2m11...

  • Page 38: Pci Express Mini Card

    N.C. N.C. +3.3Vaux Note To use a mini PCI Express card that supports USB signals, you must set DIP 3 of Switch SW9 to OFF. To use a mini PCI Express card that Copyright © 2014 congatec AG QEV2m11 38/49...

  • Page 39: Digital Display Interface (Ddi)

    5.2.14 Digital Display Interface (DDI) The DDI slot supports DisplayPort, HDMI or DVI cards. The slot supports also congatec’s MGCA and HGCA cards. (X15) The type of video output depends on the module. If the module supports auto detection then with jumper X22, you can automatically configure the DDI slot for HDMI or DisplayPort.

  • Page 40: Sdio Interface

    The QEVAL 2.0 provides a Controller Area Network bus interface via a 5 pin header (X10). The CAN bus comes from Qseven module and is ® connected to header X10 through CAN transceiver SN65HVD232. Jumper X9 enables or disables CAN bus termination. Pin Signal +12V CAN Low (X10) CAN High 3 4 5 N.C. Copyright © 2014 congatec AG QEV2m11 40/49...
  • Page 41 CAN Termination Configuration Jumper X9 (X9) 1 - 2 CAN termination Enabled 2 - 3 CAN termination Disabled (default) Connector Type X10: 5 pin 2.54mm grid female, X9: 2.54mm grid Jumper. Copyright © 2014 congatec AG QEV2m11 41/49...

  • Page 42: Additional Features

    The LID button is connected to the Qseven module’s LID_BTN# signal. ® (M6) External LID switch can be connected to connector X18. Connector Type (X18) X18: 2 pin 2.54mm grid female. Copyright © 2014 congatec AG QEV2m11 42/49...

  • Page 43: Switch Sw3

    During POST (Power On Self Test), the BIOS generates diagnostic progress codes (POST-codes) to different I/O ports (usually port 80h). If the POST fails, execution stops and the last POST code generated is left at the respective port. This code is useful for determining the point where an error occurred. Copyright © 2014 congatec AG QEV2m11 43/49...

  • Page 44: Onboard Module's Com Port

    The QEVAL 2.0 decodes these ports and displays their contents on 4 seven-segment displays (D16 to D19). Port 80/90 Port 84/94 A list of the POST codes and associated POST test and initialization routines for the BIOS used on congatec Qseven modules is available at: ®...

  • Page 45: Internal Use Only Connectors

    ® WAKE# signal, then you can bridge connector X3 pins with a jumper to connect the Qseven module’s PCIE_WAKE#. ® Signal WAKE# Wake Event PCIE_WAKE# (X3) Connector Type X3: 2.54mm grid Jumper. Copyright © 2014 congatec AG QEV2m11 45/49...

  • Page 46: Fan Connector And Power Configuration

    FANs are to be used at the same time, then one FAN must not be connected to FAN_TACHOIN (module has only one TACHOIN input). VCC on X21 is controlled by the fan’s PWM control signal, which originates from the Qseven ® module. With Jumper X52, you can disable this control. Copyright © 2014 congatec AG QEV2m11 46/49...

  • Page 47: Feature Connector

    High active input for the Qseven module indicates that ® This signal is triggered on the falling edge. power from the power supply is ready. Connector Type X19: 40 pin, 2 row 2.54mm grid female. 47/49 Copyright © 2014 congatec AG QEV2m11...

  • Page 48: Qeval 2.0 Mechanical Drawing

    QEVAL 2.0 Mechanical Drawing 293.4 288.29 209.55 163.83 123.97 110.47 56.47 49.85 6.35 4x R3 All dimensions are in mm Copyright © 2014 congatec AG QEV2m11 48/49...

  • Page 49: Industry Specifications

    Extended Display Identification Data Standard Version 1.3 (EDID™) http://www.vesa.org Enhanced Display Data Channel Specification Version 1.1 (DDC) http://www.vesa.org IEEE standard 802.3ab 1000BASE T Ethernet http://www.ieee.org/portal/site Advanced Configuration and Power Interface Specification Rev. 3.0a http://www.acpi.info/ Copyright © 2014 congatec AG QEV2m11 49/49...
