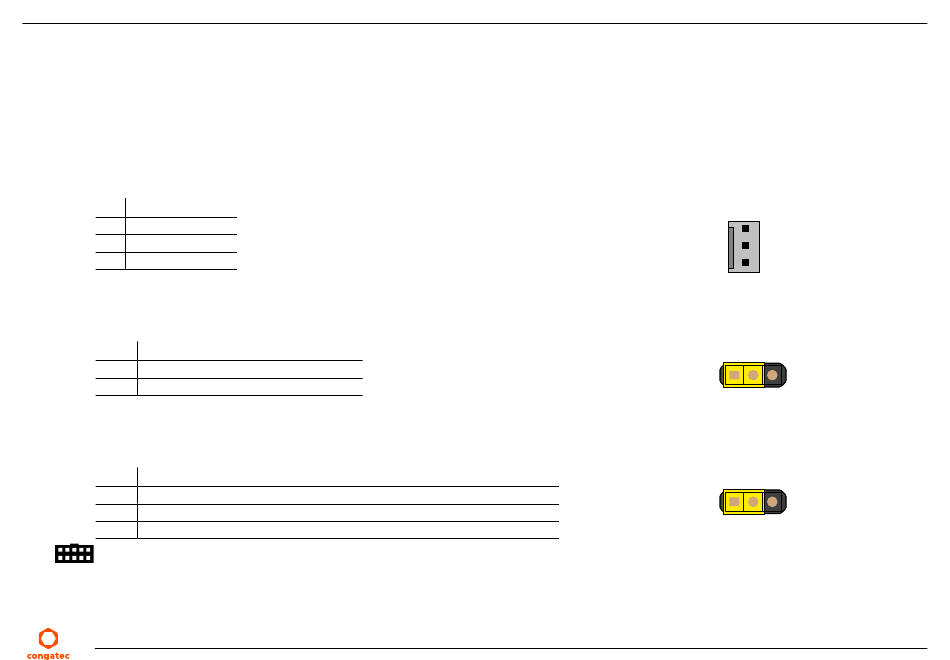

4.17

System Fan Header

The conga-TEVAL3/COMe 3.1 provides a 3-pin fan connector X55 via the Super I/O controller. Use jumpers:
• JP5 to set the fan's supply voltage level
• JP6 to select the fan's control source
Table 54
X55 - SYS Fan Pinout
Pin Signal
1
GND
2
+VDD (12 V / 5 V)
3
Sense
Table 55
JP5 - Fan Voltage Selection
Pin
Description
1-2
12 V supply voltage for auxiliary fan (default)
2-3
5 V supply voltage for auxiliary fan
Table 56
JP6 - Fan Speed Control
Pin
Description
1-2
Fan speed control via Super I/O located on the conga-TEVAL3/COMe 3.1 (default)
2-3
Fan speed control via the COM Express module
Open
Full fan speed if the pins are left open
Connector Type
X55: Standard 2.54 mm, 3-pin fan housing
JP5, JP6: 2.54 mm grid jumper
Copyright © 2025 congatec GmbH
TEVA31_m001
X55
1
2
3
JP5
1
2
3
JP6
1
2
3
