4.18

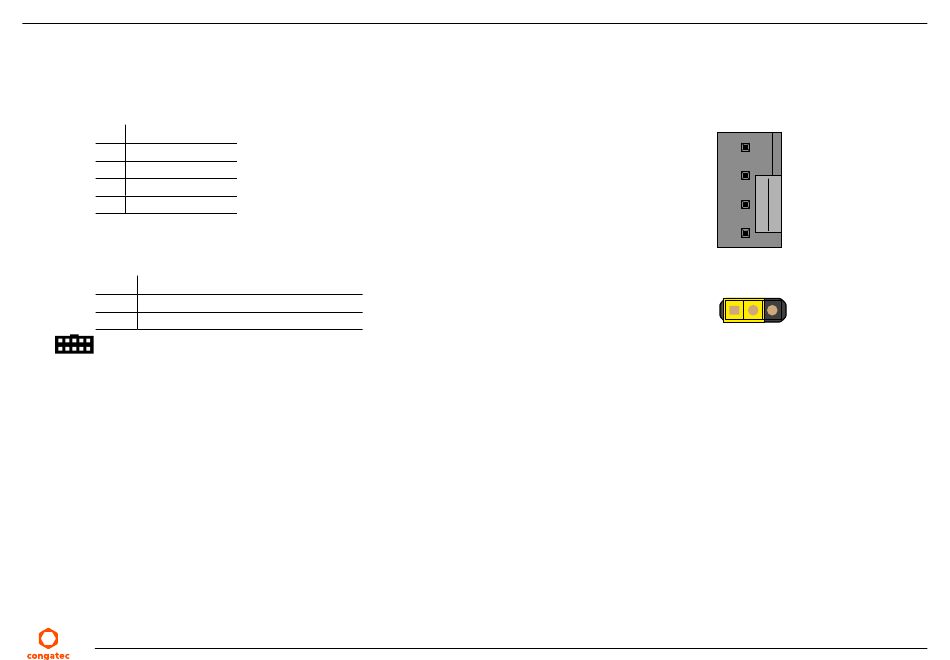

CPU Fan Header

The conga-TEVAL3/COMe 3.1 provides a 4-pin fan connector X60. Set the fan's supply voltage level with jumper JP10.
Table 57 X60 - CPU Fan
Pin Signal
1 GND
2 +VDD (12 V / 5 V)
3 Sense
4 Control
Table 58 JP10 - CPU Fan Voltage Selection
Pin Configuration
1-2 12 V supply voltage (default)
2-3 5 V supply voltage
Connector Type
X60: 2.54 mm, 4-pin fan housing
JP10: 2.54 mm grid jumper
Copyright © 2025 congatec GmbH TEVA31_m001
X60
1
2
3
4
JP10
1 2 3
