Summary of Contents for Congatec conga-MA7

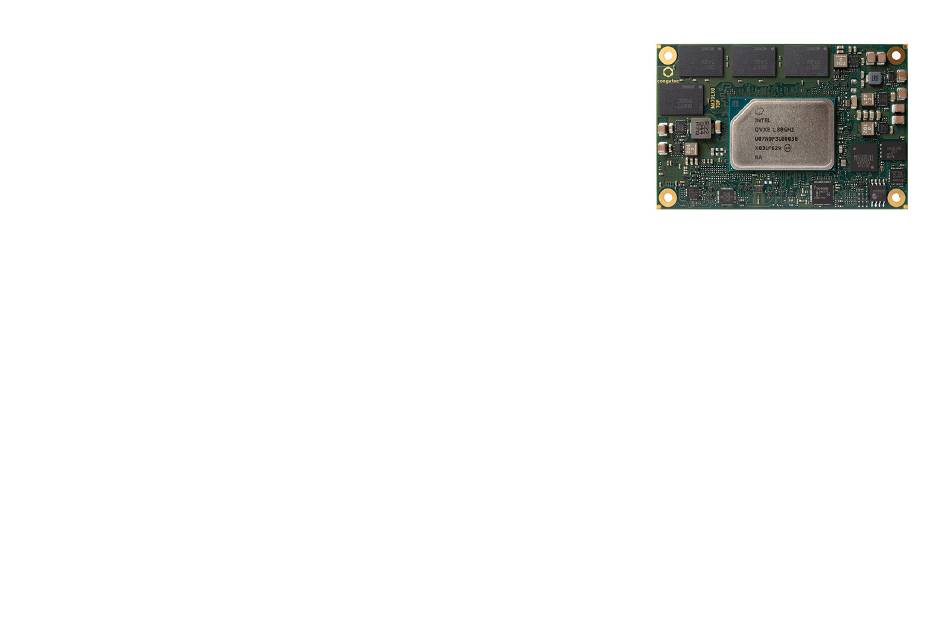

- Page 1 COM Express® 3.0 Type 10 Mini Module with Intel® Elkhart Lake Processors User's Guide Revision 1.02...
- Page 2 Added supported flash device to section 10.4 "Supported Flash Devices" 1.01 2023-07-27 • Renamed section 1.1 "conga-MA7 Options Information" to "Options Information" • Added CPU use conditions, Tjunction, and DTR information to Table 2 and 3 • Added note about a Windows 10 issue with S3 to section 2.2 "Supported Operating Systems"...
- Page 3 DECLINE ALL LIABILITY for damages, direct or indirect, that result from the use of this software. OEM/ CGUTL BIOS BIOS/UEFI modified by customer via the congatec System Utility (CGUTL) is subject to the same license as the BIOS/UEFI it is based on. You can find the specific details at https://www.congatec.com/en/licenses/.
- Page 4 The information contained within this user's guide, including but not limited to any product specification, is subject to change without notice. congatec GmbH provides no warranty with regard to this user's guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing.
- Page 5 Copyright © 2021, congatec GmbH. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec GmbH. congatec GmbH has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
- Page 6 (c) arising from course of performance, course of dealing, or usage of trade. congatec GmbH shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
- Page 7 Serial ATA Display Data Channel System On Chip LVDS Low-Voltage Differential Signaling Gigabit Ethernet Multi-level Cell Single-level Cell High Definition Audio congatec Board Controller Interface N.C. Not connected N.A. Not available To be determined Copyright © 2021 congatec GmbH MA70m102 7/60...
-
Page 8: Table Of Contents
6.1.1 eMMC ..................35 Supported Operating Systems ..........15 6.1.2 Security Features ..............35 Mechanical Dimensions ............15 congatec Board Controller (cBC) ..........35 Supply Voltage Standard Power ..........16 6.2.1 Board Information ..............35 2.4.1 Electrical Characteristics ............16 6.2.2... - Page 9 PCI Configuration Space Map ..........57 10.2 BIOS Versions................59 I²C Bus ..................58 10.3 Updating the BIOS ..............60 SMBus ..................58 10.4 Supported Flash Devices ............60 congatec System Sensors ............58 Copyright © 2021 congatec GmbH MA70m102 9/60...
- Page 10 General Purpose I/O Signal Descriptions ........ 54 Table 32 SDIO Signal Descriptions ............55 Table 33 Module Type Definition Signal Description ......55 Table 34 Power and GND Signal Descriptions ........55 Table 35 I/O Address Assignment ............56 Copyright © 2021 congatec GmbH MA70m102 10/60...
-
Page 11: Introduction
Up to 8 / 2 ¹ LVDS/eDP, 1xDDI The SuperSpeed USB ports are not in addition to the USB 2.0 ports. The conga-MA7 modules use the Type 10 pinout definition and comply with the COM Express 3.0 specification. They are equipped with single ®... -
Page 12: Options Information
Options Information The conga-MA7 is available in eight variants (five commercial and three industrial). The tables below show the different configurations available. Table 2 Commercial Variants Part-No. 049400 049401 049402 049420 049421 Processor Intel ® Atom ® x6425E Intel ®... -
Page 13: Table 3 Industrial Variants
If the Tjunction is not within the DTR range, you must reboot the system. See Intel documentation for more Boot information. For DTR of ±110°C, the speed of any enabled USB 3.1 port must be limited to 5 Gb/s. Copyright © 2021 congatec GmbH MA70m102 13/60... -
Page 14: Specifications
Multistage watchdog; non volatile user data storage; manufacturing and board Information; board statistics; fast mode and multi master I²C bus; power loss control Controller Embedded BIOS AMI Aptio UEFI firmware; 32 MByte serial SPI with congatec Embedded BIOS features; OEM Logo; OEM CMOS Defaults; LCD Control; Display ® Auto Detection; Backlight Control; Flash Update Feature Power Management ACPI 5 .0 compliant;... -
Page 15: Supported Operating Systems
• Real-Time Systems Hypervisor Note 1. Windows ® 10 version 21H2 (OS build 19044) may sporadically fail to wake from S3 sleep state (POST Code: 0300). congatec recommends updating to a later Windows 10 version. ® 2. For the installation of Windows 10, congatec recommends a minimum storage capacity of 20 GB. -
Page 16: Supply Voltage Standard Power
The input voltages shall rise from 10% of nominal to 95% of nominal within 0.1 ms to 20 ms (0.1 ms ≤ Rise Time ≤ 20 ms). Each DC input voltage must rise from 10% to 90% of its nominal voltage in a smooth, continuous ramp and the slope of the turn-on waveform must be positive. Copyright © 2021 congatec GmbH MA70m102... -
Page 17: Power Consumption
Note The peripherals did not influence the measured values because they were powered externally. The tables below provide additional information about the power consumption data for each of the conga-MA7 variants offered. The values are recorded at various operating modes. -
Page 18: Supply Voltage Battery Power
3. Consider also the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note "AN09 RTC Battery Lifetime" at www.congatec.com. 4. We recommend to always have a CMOS battery present when operating the conga-MA7. Copyright © 2021 congatec GmbH... -
Page 19: Environmental Specifications
Note For long term storage of the conga-MA7 (more than six months), keep the conga-MA7 in a climate-controlled building at a constant temperature between 5°C and 40°C, with humidity of less than 65% and at an altitude of less than 3000 m. Also ensure the storage location is dry and well ventilated. -
Page 20: Block Diagram
Block Diagram Copyright © 2021 congatec GmbH MA70m102 20/60... -
Page 21: Cooling Solutions
1. We recommend a maximum torque of 0.4 Nm for carrier board mounting screws. 2. The gap pad material used on congatec heatspreaders may contain silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s specification. -
Page 22: Hsp Dimensions
HSP Dimensions Lidded Variants (Part-No.: 049454, 049455) M2.5 x 6 mm threaded standoff for threaded version ø2.7 x 6 mm non-threaded standoff for borehole version Copyright © 2021 congatec GmbH MA70m102 22/60... - Page 23 Bare-Die Variants (Part-No.: 049456, 049457) M2.5 x 6 mm threaded standoff for threaded version ø2.7 x 6 mm non-threaded standoff for borehole version Copyright © 2021 congatec GmbH MA70m102 23/60...
-
Page 24: Csp Dimensions
CSP Dimensions Lidded Variants (Part-No.: 049450, 049451) M2.5 x 6 mm threaded standoff for threaded version ø2.7 x 6 mm non-threaded standoff for borehole version 80° 90° 2 - 3X 2.6 - TYP Copyright © 2021 congatec GmbH MA70m102 24/60... - Page 25 Bare-Die Variants (Part-No.: 049452, 049453) M2.5 x 6 mm threaded standoff for threaded version ø2.7 x 6 mm non-threaded standoff for borehole version 80° 90° 2 - 3X 2.6 - TYP Copyright © 2021 congatec GmbH MA70m102 25/60...
-
Page 26: Connector Subsystems Rows A, B
The options require a customized BIOS. Gigabit Ethernet The conga-MA7 offers a Gigabit Ethernet interface on the COM Express connector via the onboard TI DP83867 Ethernet PHY with support for: • full- or half-duplex operation at 10/100/1000 Mb/s • precision clock synchronization •... -
Page 27: Sata
The conga-MA7 offers eight USB 2.0 ports and SuperSpeed USB 10Gbps lines for up to two USB 3.1 Gen 2 ports. The USB 3.1 Gen 2 ports are not in addition to the USB 2.0 ports but also support USB 2.0. USB Dual Role is not supported. -
Page 28: High Definition Audio (Hda) Interface
High Definition Audio (HDA) Interface The conga-MA7 provides an interface to connect an HDA audio codec. Only one external HDA codec is supported. Digital Display Interface The conga-MA7 offers two display interfaces: • DDI0 supports DisplayPort 1.4 • LVDS_A supports LVDS by default Optionally, LVDS_A can support eDP instead of LVDS (assembly option). -
Page 29: Lvds/Edp
To support the maximum resolution of the DP++, a retimer is recommended to be implemented on the carrier board. 5.6.2 LVDS/eDP The conga-MA7 offers a single channel LVDS interface on the COM Express connector. The interface is provided by routing the ®... -
Page 30: Sd Card
SD Card Optionally, the conga-MA7 can offer a 4-bit SD interface instead of GPIOs (BIOS Setup option). The SDIO interface supports: • SD Card specification version 3.01 @ 3.3 V Signaling (Default Speed Mode/High Speed Mode) • SDIO specification version 3.0 •... -
Page 31: Lpc Bus/Espi
LPC Bus/eSPI The conga-MA7 offers the LPC (Low Pin Count) bus by default. The LPC bus corresponds approximately to a serialized ISA bus yet with a significantly reduced number of signals and functionality. Due to the software compatibility to the ISA bus, I/O extensions such as additional serial ports can be easily implemented on an application specific carrier board using this bus. -
Page 32: Power Control
The module is kept in reset as long as the PWR_OK is driven by carrier board hardware. It is strongly recommended that the carrier board hardware drives the signal low until it is safe to let the module boot-up. Copyright © 2021 congatec GmbH MA70m102... - Page 33 Power Supply Implementation Guidelines Input power of 4.75 - 20 volt is the sole operational power source for the conga-MA7. The remaining necessary voltages are internally generated on the module using onboard voltage regulators. A carrier board designer should be aware of the following important information when designing a power supply for a conga-MA7 application: •...
-
Page 34: Power Management
Inrush and Maximum Current Peaks on VCC_5V_SB and VCC The inrush current on the conga-MA7 VCC_5V_SB power rail can go up as high as 6.13 A and as high as 27.94 A on VCC power rail (12 V) within a short time (approx. 150μs) and with a voltage rise time of 100μs. Sufficient decoupling capacitance must be implemented on the carrier board to ensure proper power-up sequencing. -
Page 35: Additional Features
The conga-MA7 offers an onboard eMMC 5.1 HS400 storage device with up to 64 GB storage capacity. The default eMMC storage capacity of each conga-MA7 variant is listed in section 1.1 "Options Information". Changes to the onboard eMMC may occur during the lifespan of the module in order to keep up with the rapidly changing eMMC technology. -
Page 36: Fan Control
Fan Control The conga-MA7 has additional signals and functions to further improve system management. One of these signals is an output signal called FAN_PWMOUT that allows system fan control using a PWM (Pulse Width Modulation) output. Additionally, there is an input signal called FAN_TACHIN that provides the ability to monitor the system's fan RPMs (revolutions per minute). -
Page 37: Watchdog
S5e state. 6.2.6 General Purpose Input/Output The conga-MA7 offers four GPI and four GPO via the congatec Board Controller (cBC) by default. Alternatively, the conga-MA7 can offer an SDIO interface instead of the GPIOs (BIOS Setup option). OEM BIOS Customization The conga-MA7 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. -
Page 38: Oem Boot Logo
6.3.4 OEM BIOS Code/Data With the congatec embedded BIOS, it used to be possible for system designers to add their own code to the BIOS POST process. This feature is no longer supported with the new UEFI based firmware. 6.3.5 OEM DXE Driver This feature allows designers to add their own UEFI DXE driver to the congatec embedded BIOS. -
Page 39: Api Support (Cgos)
The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Linux. The architecture of the CGOS API driver provides the ability to write application software that runs unmodified on all congatec CPU modules. -
Page 40: Conga Tech Notes
Tech Notes The conga-MA7 has some technological features that require additional explanation. The following section will give the reader a better understanding of some of these features. Intel Elkhart Lake SoC Features ® 7.1.1 Processor Core The SoC features Dual or Quad 3-way Supersclar, Out-of-Order Execution processor cores. Some of the features supported by the core are: •... -
Page 41: Ahci
CPU by the application. The conga-MA7 ACPI thermal solution offers two different cooling policies: • Passive Cooling When the temperature in the thermal zone must be reduced, the operating system can decrease the power consumption of the processor by throttling the processor clock. -
Page 42: Acpi Suspend Modes And Resume Events
ACPI Suspend Modes and Resume Events conga-MA7 supports S3 (STR= Suspend to RAM). The BIOS does not support S4 (Suspend to Disk). The table below lists the “Wake Events” that resume the system from S3 unless otherwise stated in the “Conditions/Remarks” column:... -
Page 43: Signal Descriptions And Pinout Tables
The Signal Description tables do not list internal pull-ups or pull-downs implemented by the chip vendors, only pull-ups or pull-downs implemented by congatec are listed. For information about the internal pull-ups or pull-downs implemented by the chip vendors, refer to the respective chip’s datasheet. -
Page 44: Com Express ® Connector Pinout
A19 SATA0_RX+ SATA1_RX+ eDP_TX1- ²/ DDI0_PAIR1- LVDS_A1- A20 SATA0_RX- SATA1_RX- eDP_TX0+ ²/ DDI0_PAIR2+ LVDS_A2+ A21 GND(FIXED) GND(FIXED) eDP_TX0- ²/ DDI0_PAIR2- LVDS_A2- A22 USB_SSRX0- USB_SSTX0- eDP_VDD_EN DDI0_PAIR4+ ¹ LVDS_VDD_EN A23 USB_SSRX0+ USB_SSTX0+ LVDS_A3+ DDI0_PAIR4- ¹ Copyright © 2021 congatec GmbH MA70m102 44/60... - Page 45 B106 VCC_12V A52 RSVD RSVD A107 VCC_12V B107 VCC_12V A53 RSVD RSVD A108 VCC_12V B108 VCC_12V A54 GPI0 GPO1 A109 VCC_12V B109 VCC_12V A55 RSVD RSVD A110 GND(FIXED) B110 GND(FIXED) Not supported Assembly option Copyright © 2021 congatec GmbH MA70m102 45/60...
-
Page 46: Com Express Connector Signal Descriptions
250mA or less. GBE0_SDP Gigabit Ethernet Controller 0 Software-Definable Pin. Can also be used for IEEE1588 support such as a 1pps signal. See section 4.3.5 "SDP Pins" of the COM Express 3.0 Specification for details. Copyright © 2021 congatec GmbH MA70m102 46/60... -
Page 47: Table 17 Serial Ata Signal Descriptions
PCI Express Reference Clock output for all PCI Express O PCIE A PCI Express Gen2/3 compliant clock buffer chip must be used on PCIE_CLK_REF- lanes. the carrier board if more than one PCI Express device is designed in. Copyright © 2021 congatec GmbH MA70m102 47/60... -
Page 48: Table 19 Usb Signal Descriptions
I USB-SS USB_SSRX0- USB data path. Supports up to SuperSpeed USB 10Gbps. USB_SSRX1+ Additional receive signal differential pairs for the SuperSpeed I USB-SS USB_SSRX1- USB data path. Supports up to SuperSpeed USB 10Gbps. Copyright © 2021 congatec GmbH MA70m102 48/60... -
Page 49: Table 20 Lvds Signal Descriptions
Assembly option: eDP LVDS_I2C_DAT DDC lines used for flat panel detection and control. I/O 3.3V LVDS PU LVDS (default) eDP_AUX- Embedded Display Port AUX channel pair I/O eDP 2k2 3.3V Assembly option: eDP Copyright © 2021 congatec GmbH MA70m102 49/60... -
Page 50: Table 21 Lpc/Espi Signal Descriptions
1. The SPI only supports a BIOS flash device by default. The BIOS flash device must be powered from the standby rail. For other options, see section 5.10 "SPI Bus". 2. Route the SPI signals as short as possible because of their limited drive strength. Copyright © 2021 congatec GmbH MA70m102 50/60... -
Page 51: Table 23 Ddi Signal Descriptions
Half-duplex bi-directional AUX channel for services such as link configuration or PD 100k maintenance and EDID access. DP0_AUX- Half-duplex bi-directional AUX channel for services such as link configuration or PU 100k 3.3V maintenance and EDID access. Copyright © 2021 congatec GmbH MA70m102 51/60... -
Page 52: Table 25 General Purpose Serial Interface Signal Descriptions
Physical Presence pin of Trusted Platform Module (TPM). Active high. I 3.3V PD 10K not connected (onboard TPM 2.0 does not use it) Note For the correct fan control (FAN_PWMOUT, FAN_TACHIN) implementation, see the COM Express Design Guide. ® Copyright © 2021 congatec GmbH MA70m102 52/60... -
Page 53: Table 28 Power And System Management Signal Descriptions
Pin # Description PU/PD Comment THRM# Input from off-module temp sensor indicating an over temperature situation I 3.3V PU 10k 3.3V THRMTRIP# Active low output indicating that the CPU has entered thermal shutdown O 3.3V Copyright © 2021 congatec GmbH MA70m102 53/60... -
Page 54: Table 30 Sm Bus Signal Descriptions
General purpose output pins. O 3.3VSB Shared with SD_WP. Output from COM Express, input to SD GPO3 General purpose output pins. O 3.3VSB Shared with SD_CD#. Output from COM Express, input to SD Copyright © 2021 congatec GmbH MA70m102 54/60... -
Page 55: Table 32 Sdio Signal Descriptions
Description PU/PD Comment VCC_12V A104-A109 Primary power input: 4.75V to 20V. All available VCC_12V pins on the The conga-MA7 is a Type 10 mini B104-B109 connector(s) shall be used. module and as such supports a wide power supply range between 4.75 and 20V. -
Page 56: System Resources
System Resources I/O Address Assignment The I/O address assignment of the conga-MA7 module is functionally identical with a standard PC/AT. The table below shows the most important addresses and the addresses that differ from the standard PC/AT configuration. These Fixed address ranges are either positively decoded in the System Agent or subtractively routed to the Primary to Sideband Bridge (P2SB). -
Page 57: Pci Configuration Space Map
Enhanced Serial Peripheral Interface (eSPI) Controller 0x4B20 Primary to Sideband Bridge (P2SB) 0x4B21 Power Management Controller (PMC) 0x4B23 System Management Bus (SMBus) Controller 0x4B24 Serial Peripheral Interface (SPI) Controller for Flash & TPM 0x4B26 Intel ® Trace Hub Copyright © 2021 congatec GmbH MA70m102 57/60... -
Page 58: I²C Bus
For more information about this subject, contact congatec technical support. congatec System Sensors conga-MA7 offers several Sensors and Monitors accessible thought CGOS interface and also visible on the Health Monitor Submenu in BIOS Setup. • 2 Temperature Sensors –... -
Page 59: Bios Setup Description
BIOS Setup Description The BIOS setup description of the conga-MA7 can be viewed without having access to the module. However, access to the restricted area of the congatec website is required in order to download the necessary tool (CgMlfViewer) and Menu Layout File (MLF). -
Page 60: Updating The Bios
BIOS updates are recommended to correct platform issues or enhance the feature set of the module. The conga-MA7 features a congatec/AMI AptioEFI firmware on an onboard flash ROM chip. You can update the firmware with the congatec System Utility. The utility has five versions—...
