Module Serial Port 0

The module's serial port 0 (SER0) is connected to pins 41 and 43 of the feature connector X56 on the conga-TEVAL3/COMe 3.1. The serial port
0 (SER0) is also routed to the connector X74.
For the feature connector pinout description, see 4.22 "Feature Connector".

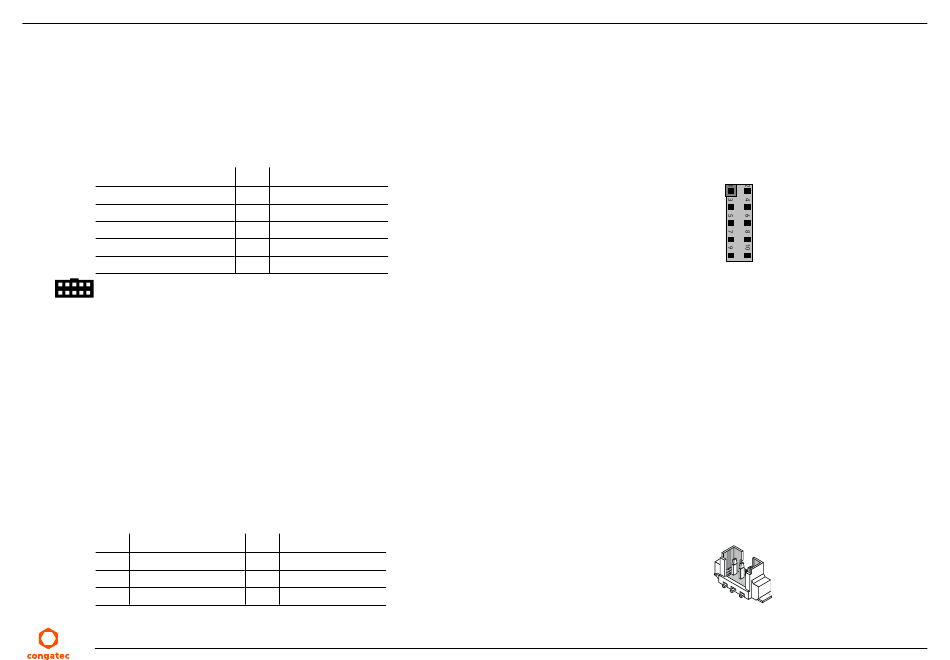

Table 49 X74 - Module COM Port 0 Pinout Description
Pin Signals
1 N.C
3 SER0_RX
5 SER0_TX
7 N.C
9 GND
Connector Type
X74: 2.54 mm, 2 x 5-pin receptacle
4.16.4

Module Serial Port 1 / CAN Bus

The module's serial port 1 (SER1)/CAN bus is routed to one of the following connectors:
• pins 42 and 44 of the feature connector X56 and X75
• CAN bus connector X59, via a CAN transceiver
Use DIP SW2.1 to route the module's serial port 1 to the feature connector or to the CAN connector. Use jumper JP7 to enable the 120 ohm
CAN bus termination and the CAN bus filter.
Table 50 X59 - CAN Bus Connector Pinout Description
Pin Signals
1 +V12S
3 CAN_L
5 N.C
