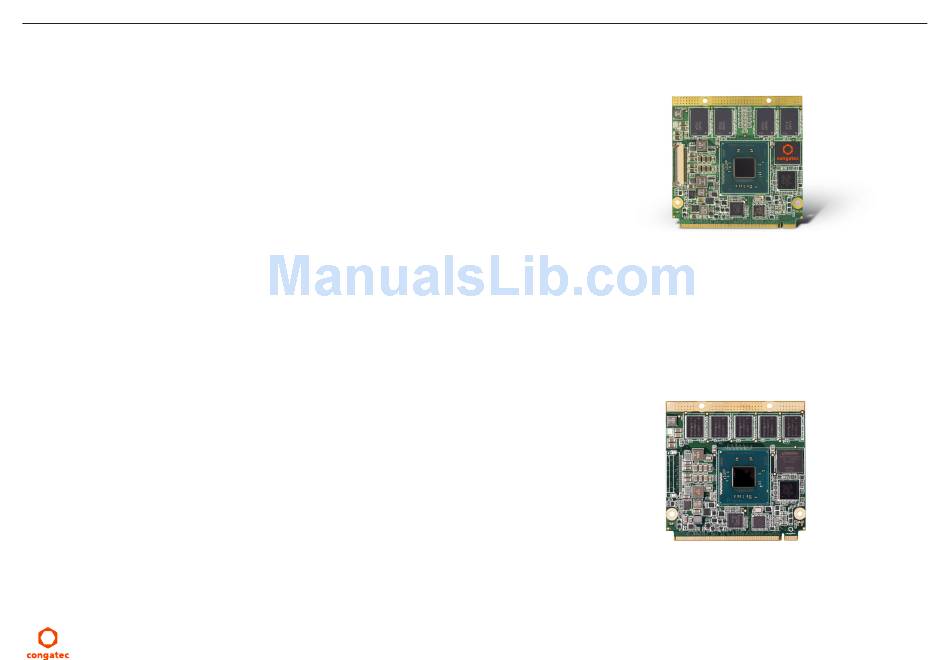

- Page 1 Qseven conga-QA3/QA3E ® Third Generation Intel Atom™ and Intel Celeron ® ® ® User’s Guide Revision 1.1...
-
Page 2: Revision History
9 “USB Signal Description” 2017.06.20 • Corrected and updated the Intel Atom™ E3805 processor features in section 1.2 “conga-QA3 Variants”. Also added note ® about the default serial direction settings of the headless variants • Updated section 2.5 “Power Consumption”... -
Page 3: Intended Audience
In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information... -
Page 4: Copyright Notice
Copyright © 2015, congatec AG. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec AG. congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”. -
Page 5: Technical Support
(c) arising from course of performance, course of dealing, or usage of trade. congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. - Page 6 Serial Peripheral Interface is a synchronous serial data link standard that operates in full duplex mode. Gigabit Ethernet LVDS Low-Voltage Differential Signaling Display Data Channel is an I²C bus interface between a display and a graphics adapter. N.C. Not connected N.A. Not available T.B.D. To be determined Copyright © 2013 congatec AG QA30_QA3Em11 6/91...
-
Page 7: Table Of Contents
LPC ................... 27 5.12 SPI .................... 28 Qseven Concept ..............10 ® 5.13 I²C Bus ..................28 conga-QA3 Options Information ..........11 5.14 CAN Bus .................. 28 conga-QA3E Options Information ........... 13 5.15 Power Control ................28 Specifications ................14 5.16 Power Management .............. - Page 8 Supported Flash Devices ............90 10.4.15 CPU Configuration Submenu ........... 73 11.2 Updating the BIOS ..............90 10.4.15.1 Socket 0 CPU Information Submenu ........74 10.4.15.2 CPU Thermal Configuration Submenu........74 Industry Specifications ............. 91 Copyright © 2013 congatec AG QA30_QA3Em11 8/91...
- Page 9 Table 24 Fan Control Signal Descriptions ..........54 Table 25 Onboard Camera Interface Signal Descriptions ...... 55 Table 26 PCI Configuration Space Map ..........58 Table 27 PCI Interrupt Routing Map ............59 Copyright © 2013 congatec AG QA30_QA3Em11 9/91...
-
Page 10: Introduction
Simply unplug one module and replace it with another, no need to redesign the carrier board. This document describes the features available on the Qseven evaluation carrier board. Additionally, the schematics for the Qseven evaluation ® ® carrier board can be found on the congatec website. Copyright © 2013 congatec AG QA30_QA3Em11 10/91... -
Page 11: Conga-Qa3 Options Information
Options Information The conga-QA3 is available in various variants (commercial and industrial).This user’s guide describes all of these variants and the table below shows the different configurations available. Check for the Part No. that applies to your product. This will tell you what options described in this user’s guide are available on your particular module. - Page 12 10 W / N.A 3 W / N.A Note On the conga-QA3 variant that features the Intel Atom E3805 (variants without graphic engine), serial redirection is enabled in the BIOS by default and outputted via the onboard UART. Copyright © 2013 congatec AG...
-
Page 13: Conga-Qa3E Options Information
Single/Dual 18/24bit DP / HDMI / DVI DP / HDMI / DVI eMMC 4 GB (MLC) 8 GB (MLC) SD Card Max. TDP / SDP 5 W / N.A 10 W / N.A Copyright © 2013 congatec AG QA30_QA3Em11 13/91... -
Page 14: Specifications
LPC Bus 1x SD/MMC I²C Bus, multimaster AMI Aptio UEFI 5.x firmware; 8 MByte serial SPI with congatec Embedded BIOS features (OEM Logo, OEM CMOS Defaults, LCD Control, Display ® BIOS Features Auto Detection, Backlight Control, Flash Update) ACPI 5.0 compliant with battery support. Also supports Suspend to RAM (S3). -
Page 15: Supported Operating Systems
® ® Note For the installation of Windows 7/8 and WES7/8, congatec AG recommends a minimum storage capacity of 16 GB. congatec will not offer support for systems with less than 16 GB storage space. Mechanical Dimensions • 70.0 mm x 70.0 mm @ (2 ¾” x 2 ¾”) •... -
Page 16: Supply Voltage Standard Power
10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive. Note For information about the input power sequencing of the Qseven ® module refer to the Qseven ® specification. Copyright © 2013 congatec AG QA30_QA3Em11 16/91... -
Page 17: Power Consumption
Power Consumption The power consumption values were measured with the following setup: • conga-QA3/QA3E COM • modified congatec carrier board • conga-QA3/QA3E cooling solution • Microsoft Windows 7 (64 bit) Note The CPU was stressed to its maximum workload with the Intel Thermal Analysis Tool ®... -
Page 18: Supply Voltage Battery Power
Processor Information Table 2 Power Consumption Values The tables below provide additional information about the power consumption data for each of the conga-QA3/QA3E variants offered. The values are recorded at various operating mode. Part Memory BIOS Current (Amp.) Size Rev. -
Page 19: Environmental Specifications
Storage: 5% to 95% Caution The congatec heatspreaders/cooling solutions are tested only within the commercial temperature range of 0° to 60°C. Therefore, if your application that features a congatec heatspreader/cooling solution operates outside this temperature range, ensure the correct operating temperature of the module is maintained at all times. -
Page 20: Block Diagram
The conga-MA3E supports up to 8 GB single channel Fan Control ECC DDR3L-1333 MT/s I2C Bus congatec Board Controller MIPI CSI is only supported on conga-QA3/QA3E SLP_BTN hardware revision B.x or newer. LID_BTN Build-Time Option (not dynamically selectable) TX/RX BC Copyright ©... -
Page 21: Heatspreader
® do not use the conga-QA3/QA3E heatspreaders in industrial temperature ranges (-40° to 85°C). Its use is at the risk of the end user. It is the responsibility of the end user to design an optimized thermal solution that meets the needs of their application within the industrial environmental conditions it is required to operate in. -
Page 22: Heatspreader Dimensions
All measurements are in millimeters. Torque specification for heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/IS0 specifications. The cooling strip found on the conga-QA3/QA3E is connected directly to the ground plane when mounted in the conga-QEVAL evaluation carrier board. For more information about connecting the conga-QA3/QA3E’s PCB cooling plate to the carrier board ground plane, refer to the Qseven Design Guide. -
Page 23: Connector Subsystems
Connector Subsystems The conga-QA3/QA3E is based on the Qseven standard. It therefore has 115 edge fingers on the top and bottom side of the module that ® mate with the 230-pin card-edge MXM connector located on the carrier board. This connector is able to interface the available signals of the conga-QA3/QA3E with the carrier board peripherals. -
Page 24: Pci Express
PCI Express™ The conga-QA3/QA3E offers 3 PCI Express externally on the Edge finger. The lanes are Gen 2 compliant and offer support for full 5 Gb/s bandwidth in each direction per x1 link. Default configuration for the lanes is 3 x1 link. A 1 x2 + 1 x1 link configuration is also possible but requires a special/customized BIOS firmware. -
Page 25: Usb 3.0
USB 3.0 The conga-QA3/QA3E offers one USB 3.0 interface on the Edge finger. This interface is controlled by an xHCI host controller in the SoC. The host controller allows data transfers of up to 5 Gb/s and supports SuperSpeed, high-speed, full-speed and low-speed USB signalling. The USB SuperSpeed signals should be paired with USB 2.0 port 0 on the carrier board. -
Page 26: Digital Display Interface
The SoC on the conga-QA3/QA3E supports High-bandwidth Digital Content Protection 1.4/2.1 (HDCP) for content protection over wired displays (HDMI, DisplayPort and Embedded DisplayPort). It also supports audio on DP and HDMI. The conga-QA3/QA3E supports up to two independent displays. The display combination must be 1 DDI and 1 LVDS as shown in the table below:... -
Page 27: Hdmi
5.11 The conga-QA3/QA3E offers the LPC (Low Pin Count) bus. The LPC bus corresponds approximately to a serialized ISA bus yet with a significantly reduced number of signals and functionality. Due to the software compatibility to the ISA bus, I/O extensions such as additional serial ports can be easily implemented on an application specific carrier board using this bus. -
Page 28: Spi
The conga-QA3/QA3E offers the SPI interface only for booting a BIOS from an SPI Flash device placed on the carrier board. 5.13 I²C Bus The conga-QA3/QA3E supports I2C bus. Thanks to the I2C host controller in the cBC, the I²C bus is multi-master capable and runs at fast mode. 5.14 CAN Bus The conga-QA3/QA3E does not support CAN bus. -
Page 29: Power Management
Inrush and Maximum Current Peaks on VCC_5V_SB and VCC The inrush current on the conga-QA3/QA3E VCC_5V_SB power rail can go up as high as 6.5A and as high as 12.5A on the conga-QA3/QA3E VCC power rail within a short time (approx 100µs) and with a voltage rise time of 100µs. -
Page 30: Additional Features
The conga-QA3/QA3E is equipped with a Texas Instruments Tiva™ TM4E1231H6ZRBI microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. -
Page 31: Board Information
Fan Control The conga-QA3/QA3E has additional signals and functions to further improve system management. One of these signals is an output signal called FAN_PWMOUT that allows system fan control using a PWM (Pulse Width Modulation) output. Additionally, there is an input signal called FAN_TACHOIN that provides the ability to monitor the system’s fan RPMs (revolutions per minute). -
Page 32: Oem Cmos Default Settings And Oem Bios Logo
OEM BIOS Code With the congatec embedded BIOS it is even possible for system designers to add their own code to the BIOS POST process. Except for custom specific code, this feature can also be used to support Window 7 SLIC table, verb tables for HDA codecs, rare graphic modes and Super I/O controllers. -
Page 33: Api Support (Cgos/Eapi)
EAPI (Embedded Application Programming Interface) is a programming interface defined by the PICMG that addresses this problem. With this unified API it is now possible to run the same application on all vendor’s COMs that offer EAPI driver support. Contact congatec technical support for more information about EAPI. -
Page 34: Conga Tech Notes
VT-x) added hardware support in the processor to improve the virtualization performance and robustness. Note congatec does not offer virtual machine monitor (VMM) software. All VMM software support questions and queries should be directed to the VMM software vendor and not congatec technical support. -
Page 35: Ahci
Native mode. See section 10.4.12 for more information about this. Running in native mode frees up interrupt resources (IRQs 14 and 15) and decreases the chance that there may be a shortage of interrupts when installing devices. Note If your operating system supports native mode then congatec AG recommends you enable it. 7.1.1.4 Thermal Management ACPI is responsible for allowing the operating system to play an important part in the system’s thermal management. -
Page 36: Acpi Suspend Modes And Resume Events
ACPI Specification 2.0 C for more information about passive cooling. ACPI Suspend Modes and Resume Events conga-QA3/QA3E supports S3 (STR= Suspend to RAM). For more information about S3 wake events see section 10.4.6 “ACPI Configuration Submenu”. S4 (Suspend to Disk) is not supported by the BIOS (S4_BIOS) but it is supported by the following operating systems (S4_OS= Hibernate): •... -
Page 37: Xhci And Ehci Port Mapping
Note The USB overcurrent protection is disabled by default on USB ports 0 and 1 (native ports). To enable this function, you require a customized BIOS. Contact congatec technical support department for more information. Copyright © 2013 congatec AG QA30_QA3Em11... -
Page 38: Signal Descriptions And Pinout Tables
“#” is not present, the signal is asserted when at a high voltage level. Note Not all the signals described in this section are available on all conga-QA3/QA3E variants. Use the article number of the module and refer to the options table in section 1 to determine the options available on the module. -
Page 39: Table 4 Edge Finger Pinout
I2S Serial Data Input from Codec HDA_SDO (**) HD Audio/AC’97 Serial Data Out. Multiplexed GP0_I2C_DAT General Purpose I2C Bus No 0 data line / I2S_SDO with I2S Serial Data Output from Codec Copyright © 2013 congatec AG QA30_QA3Em11 39/91... - Page 40 LVDS Primary channel CLK+ / LVDS_B_CLK+ LVDS Secondary channel CLK+ eDP0_AUX- eDP Primary Auxilliary channel- 122 eDP1_AUX- eDP Secondary Auxiliary channel CLK- / LVDS_A_CLK- LVDS Primary channel CLK- / LVDS_B_CLK- LVDS Secondary channel CLK- Copyright © 2013 congatec AG QA30_QA3Em11 40/91...
- Page 41 Handshake signal, ready to send data PCIE0_TX+ PCI Express Channel 0 Output+ 180 PCIE0_RX+ PCI Express Channel 0 Input+ PCIE0_TX- PCI Express Channel 0 Output- 182 PCIE0_RX- PCI Express Channel 0 Input- Power Ground 184 GND Power Ground Copyright © 2013 congatec AG QA30_QA3Em11 41/91...
- Page 42 Specification. To comply with the Qseven Specification, the signals are routed through bidirectional level shifters on the module. The bidirectional level shifters by nature have limited driving strenght. congatec therefore recommends that you route these signals as short as possible.
-
Page 43: Table 5 Pci Express Signal Descriptions
On Intel Bay Trail SoC, the signal marked with asterisks (**) has a voltage level that is different from the level defined in the Qseven Specification. To comply with the Qseven Specification, the signals are routed through bidirectional level shifters on the module. The bidirectional level shifters by nature have limited driving strenght. congatec therefore recommends that you route these signals as short as possible. -
Page 44: Table 6 Uart Signal Descriptions
Specification. To comply with the Qseven Specification, the signals are routed through bidirectional level shifters on the module. The bidirectional level shifters by nature have limited driving strenght. congatec therefore recommends that you route these signals as short as possible. -
Page 45: Table 8 Sata Signal Descriptions
The conga-QA3/QA3E can drive GbE LEDs directly with up to 10mA. Table 8 SATA Signal Descriptions Signal Pin # Description PU/PD Comment SATA0_RX+ Serial ATA channel 0, Receive Input differential pair. I SATA Supports Serial ATA specification, Revision 2.6 SATA0_RX- SATA0_TX+ Serial ATA channel 0, Transmit Output differential pair. -
Page 46: Table 10 Sdio Signal Descriptions
CMOS Note The USB overcurrent protection is disabled by default on USB ports 0 and 1 (native ports). To enable this function, you require a customized BIOS. Contact congatec technical support department for more information. Table 10 SDIO Signal Descriptions... -
Page 47: Table 11 Hda Signal Descriptions
Specification. To comply with the Qseven Specification, the signals are routed through bidirectional level shifters on the module. The bidirectional level shifters by nature have limited driving strenght. congatec therefore recommends that you route these signals as short as possible. -
Page 48: Table 12 Lvds Signal Descriptions
LVDS secondary channel differential pair 2. O LVDS LVDS_B2- eDP1_TX2+ Display Port secondary channel differential pair 2. eDP1_TX2- LVDS_B3+ LVDS secondary channel differential pair 3. O LVDS LVDS_B3- eDP1_TX3+ Display Port secondary channel differential pair 3. eDP1_TX3- Copyright © 2013 congatec AG QA30_QA3Em11 48/91... -
Page 49: Table 13 Displayport Signal Descriptions
Hot plug detection signal that serves as an interrupt I 3.3V PU 4.99k Supports open drain and PushPull driver. Onboard PU is protected with request. 1.8V a diode Note The DisplayPort interface signals are shared with TMDS signals. Copyright © 2013 congatec AG QA30_QA3Em11 49/91... -
Page 50: Table 14 Hdmi/Dvi Signal Descriptions
On Intel Bay Trail SoC, the signal marked with asterisks (**) has a voltage level that is different from the level defined in the Qseven Specification. To comply with the Qseven Specification, the signals are routed through bidirectional level shifters on the module. Copyright © 2013 congatec AG QA30_QA3Em11... -
Page 51: Table 16 Spi Interface Signal Descriptions
The bidirectional level shifters by nature have limited driving strenght. congatec therefore recommends that you route these signals as short as possible. The conga-QA3/QA3E does not support GPIOs on the LPC interface. Table 16 SPI Interface Signal Descriptions Signal Pin #... -
Page 52: Table 18 Power And Gnd Signal Descriptions
Sleep button. Low active signal used by the ACPI operating system to transition the system into sleep I 3.3VSB PU 10k state or to wake it up again. This signal is triggered on falling edge. 3.3VSB Copyright © 2013 congatec AG QA30_QA3Em11 52/91... -
Page 53: Table 21 Miscellaneous Signal Descriptions
RSVD 132,134,144, 146 Do not connect GP_1-Wire_Bus General Purpose 1-Wire bus interface. Can be used for consumer electronics I/O 3.3V Not connected control bus (CEC) of HDMI. Copyright © 2013 congatec AG QA30_QA3Em11 53/91... -
Page 54: Table 22 Manufacturing Signal Descriptions
Pin # Description PU/PD Comment FAN_PWMOUT Primary functionality is fan speed control. Uses the Pulse Width Modulation (PWM) technique O 3.3V to control the Fan’s RPM based on the CPU’s die temperature. . Copyright © 2013 congatec AG QA30_QA3Em11 54/91... -
Page 55: Table 25 Onboard Camera Interface Signal Descriptions
CSI2 Camera 1 Data Lane 0- CAM1_RST# Camera 1 Reset (low active) CMOS 1.8V CAM1_CSI_D1+ CSI2 Camera 1 Data Lane 1+ CAM1_CSI_D1- CSI2 Camera 1 Data Lane 1- Ground CAM0_GPIO GPIO for Camera 0 CMOS 1.8V Copyright © 2013 congatec AG QA30_QA3Em11 55/91... - Page 56 CAM1_GPIO GPIO for Camera 1 CMOS 1.8V Copyright © 2013 congatec AG QA30_QA3Em11 56/91...
-
Page 57: System Resources
I/O Address Assignment The I/O address assignment of the conga-QA3/QA3E module is functionally identical with a standard PC/AT. The BIOS assigns PCI and PCI Express I/O resources from FFF0h downwards. Non PnP/PCI/PCI Express compliant devices must not consume I/O resources in that area. -
Page 58: Pci Configuration Space Map
6. The above table represents a case when a single function PCI Express device is connected to all possible slots on the carrier board. The given bus numbers will change based on the actual configuration of the hardware. Copyright © 2013 congatec AG QA30_QA3Em11... -
Page 59: Pci Interrupt Routing Map
Interrupt used by multifunction PCI Express devices (INTD). I²C Bus There are no onboard resources connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions. SM Bus System Management (SM) bus signals are connected to the Intel Bay Trail SoC and the SM bus is not intended to be used by off-board non- ®... -
Page 60: Bios Setup Description
BIOS setup program. 10.2 Setup Menu and Navigation The congatec BIOS setup screen is composed of the menu bar, left frame and right frame. The menu bar is shown below: Main Advanced... -
Page 61: Main Setup Screen
Serial Number No option Displays the serial number of the board. BC Firmware Revision No option Displays the firmware revision of the congatec board controller. MAC Address No option Displays the MAC address of the onboard Ethernet controller. Boot Counter No option Displays the number of boot-ups. -
Page 62: Advanced Setup
Serial Port Console Redirection CPU Configuration PPM Configuration Thermal Configuration IDE Configuration Miscellaneous Configuration SCC Configuration PCI Subsystem Settings Network Stack CSM Configuration SDIO Platform Trust Technology Security Configuration Intel(R) I210 Gigabit Network Driver Health Copyright © 2013 congatec AG QA30_QA3Em11 62/91... -
Page 63: Watchdog Submenu
Select the type of event that will be generated when timeout 2 is reached. ACPI Event Reset Power Button Event 3 Disabled Select the type of event that will be generated when timeout 3 is reached. ACPI Event Reset Power Button Copyright © 2013 congatec AG QA30_QA3Em11 63/91... - Page 64 Note In ACPI mode, it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason the congatec BIOS will do one of the following: For Shutdown: An over temperature notification is executed. This causes the OS to shut down in an orderly fashion.
-
Page 65: Graphics Submenu
Auto detection is performed by reading an EDID data set via the video I²C bus. WVGA 800x480 1x24 (01Bh) The number in brackets specifies the congatec internal number of the respective panel data set. SVGA 800x600 1x18 (01Ah) Note: Customized EDID™ utilizes an OEM defined EDID™ data set stored in the BIOS flash device. -
Page 66: Hardware Health Monitoring Submenu
Select the fan PWM base frequency mode: High Frequency ‘Low Frequency’ - 11.0 to 88.2Hz ‘High Frequency’ - 1k to 63kHz Fan PWM Frequency (kHz) 1 - 63 Select the fan PWM base frequency. Default: 31kHz. Copyright © 2013 congatec AG QA30_QA3Em11 66/91... -
Page 67: Trusted Computing Submenu
Specify wake up second. 10.4.6 Module Serial Ports Submenu Feature Options Description Serial Port 0 Disabled Enable or disable module serial port 0. Enabled Serial Port 1 Disabled Enable or disable module serial port 1. Enabled Copyright © 2013 congatec AG QA30_QA3Em11 67/91... -
Page 68: Reserve Legacy Interrupt Submenu
►Parallel Port No option Parallel Port Submenu Note In ACPI mode, it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason the congatec Copyright © 2013 congatec AG QA30_QA3Em11 68/91... -
Page 69: Serial Port 1 Submenu
Change the Serial Port mode. IrDA Active pulse 1.6 uS IrDA Active pulse 3/16 bit time ASKIR Mode 10.4.12 Parallel Port Submenu Feature Options Description Parallel Port Enabled Enable or disable Parallel Port (LPT/LPTE). Disabled Copyright © 2013 congatec AG QA30_QA3Em11 69/91... -
Page 70: Intel(R) Smart Connect Technology Submenu
Serial Port for Out-of-Band Disabled Enable or disable Serial Port for Out-of-Band Management Management / EMS Enabled / Windows Emergency Management Services. Console Redirection ►Console Redirection Settings Submenu Opens console redirection configuration submenu. Copyright © 2013 congatec AG QA30_QA3Em11 70/91... -
Page 71: 10.4.14.1 Console Redirection Settings Com0 Submenu
Enable or disable extended terminal resolution. Enabled Legacy OS Redirection 80x24 Number of rows and columns supported for legacy OS redirection. Resolution 80x25 Putty KeyPad VT100 Select Function Key and KeyPad on Putty. LINUX XTERMR6 ESCN VT400 Copyright © 2013 congatec AG QA30_QA3Em11 71/91... -
Page 72: 10.4.14.2 Console Redirection Settings Com1 Submenu
Enable or disable extended terminal resolution. Enabled Legacy OS Redirection 80x24 Number of rows and columns supported for legacy OS redirection. Resolution 80x25 Putty KeyPad VT100 Select Function Key and KeyPad on Putty. LINUX XTERMR6 ESCN VT400 Copyright © 2013 congatec AG QA30_QA3Em11 72/91... -
Page 73: Console Redirection Settings Out-Of-Band Management
Enable or disable prefetching of adjacent cache lines. Enabled Intel Virtualization Technology Disabled Enable or disable support for the Intel virtualization technology. Enabled Power Technology Disable Configure the power technology schema for the CPU. Energy Efficient Custom Copyright © 2013 congatec AG QA30_QA3Em11 73/91... -
Page 74: 10.4.15.1 Socket 0 Cpu Information Submenu
CPU C state Report Disabled Enable/Disable CPU state Report to Operating System. Enabled Max CPU C state Maximal CPU C state supported by the CPU. SOix Disabled Enable/Disable CPU SOix state support. Enabled Copyright © 2013 congatec AG QA30_QA3Em11 74/91... -
Page 75: Thermal Configuration
Temperature of the ACPI passive Trip Point in which the OS will begin throttling the processor. 105 C 100 C 95 C 90 C 87 C 85 C 79 C 71 C 63 C 55 C 47 C 39 C 31 C 23 C 15 C Copyright © 2013 congatec AG QA30_QA3Em11 75/91... -
Page 76: Ide Configuration Submenu
Disabled SATA Test Mode Enabled Should be set to Disabled. Disabled Test Mode is used just for verification measurements. SATA Speed Support Gen1 Indicates the maximum speed the SATA controller can support. Gen2 Copyright © 2013 congatec AG QA30_QA3Em11 76/91... -
Page 77: Miscellaneous Configuration Submenu
SCC eMMC Support Enable eMMC 4.5 Support Enable SCC eMMC support and configure eMMC mode. Enable eMMC 4.41 Support eMMC AUTO MODE Disable SCC 4.5 DDR50 eMMC Support Enabled Enable DDR50 eMMC support. Disabled Copyright © 2013 congatec AG QA30_QA3Em11 77/91... -
Page 78: Pci Subsystem Settings Submenu
Disabled Enable or disable VGA palette registers snooping. Enabled PERR# Generation Disabled Enable or disable PCI device to generate PERR#. Enabled SERR# Generation Disabled Enable or disable PCI device to generate SERR#. Enabled Copyright © 2013 congatec AG QA30_QA3Em11 78/91... -
Page 79: Pci Express Settings Submenu
If the system has a SR-IOV capable PCIe Devices, this option enables or disables Single Root IO Enabled Virtualization support. Link Training Retry Disabled Defines number of Retry Attempts software will take to retrain the link if previous training attempt was unsuccessful. Copyright © 2013 congatec AG QA30_QA3Em11 79/91... -
Page 80: Pci Express Gen 2 Settings Submenu
Hardware Autonomous Speed Disabled If supported by hardware and set to ‘Disabled’, this will disable the hardware´s ability to change link speed Enabled except speed rate reduction for the purpose of correcting unstable link operation. Copyright © 2013 congatec AG QA30_QA3Em11 80/91... -
Page 81: Network Stack
Controls the execution of UEFI and legacy Video option ROMs UEFI only Legacy only Other PCI Devices UEFI only Controls the execution of UEFI and legacy option ROMs for any other Legacy only PCI device different to Network, Video and Storage. Copyright © 2013 congatec AG QA30_QA3Em11 81/91... -
Page 82: Sdio Submenu
Auto selects a default value which is 100ms for a root port or derived from the hub descriptor for a hub port. Device Power -Up Delay 0 - 40 Actual power-up delay value in seconds. Default: 5 Value 10.4.28 Platform Trust Technology Feature Options Description fTPM Disabled Enable Trusted Platform Module support. Enabled Copyright © 2013 congatec AG QA30_QA3Em11 82/91... -
Page 83: Security Configuration
Displays the PCI Device ID of the Ethernet controller. Bus:Device:Function No option Displays the PCI Bus:Device:Function number of the Ethernet controller. Link Status No option Displays the Link Status. MAC Address No option Displays the MAC Address. Copyright © 2013 congatec AG QA30_QA3Em11 83/91... -
Page 84: 10.4.30.1 Nic Configuration Submenu
Memory detected by the system on Slot 0 Memory Slot 1 No option Memory detected by the system on Slot 1 Max TOLUD Dynamic Selects the maximal Top of Low Usable DRAM. 2.25 GB 2.5 GB 2.75 GB 3 GB Copyright © 2013 congatec AG QA30_QA3Em11 84/91... -
Page 85: South Bridge Submenu
Audio Controller Enabled Enable Audio Controller. Disabled Enabled Azalia Vci Enable Enable Azalia Vci. Disabled Azalia Docking Support Enable Enable Enable Azalia Docking support. Disable Azalia PME Enable Enabled Enable Azalia PME support. Disabled Copyright © 2013 congatec AG QA30_QA3Em11 85/91... -
Page 86: Usb Submenu
Enabled USB Port 0 Disabled Enable Port 0 Enabled USB Port 1 Disabled Enable Port 1 Enabled USB Port 2 Disabled Enable Port 2 Enabled USB Port 3 Disabled Enable Port 3 Enabled Copyright © 2013 congatec AG QA30_QA3Em11 86/91... -
Page 87: Pci Express Configuration Submenu
Bootup NumLock State Select the keyboard numlock state. Quiet Boot Disabled Disabled displays normal POST diagnostic messages. Enabled Enabled displays OEM logo instead of POST messages. Note: The default OEM logo is a dark screen. Copyright © 2013 congatec AG QA30_QA3Em11 87/91... - Page 88 Note 1. The term ‘AC power loss’ stands for the state when the module looses the standby voltage on the 5V_SB pins. On congatec modules, the standby voltage is continuously monitored after the system is turned off. If within 30 seconds the standby voltage is no longer detected, then this is considered an AC power loss condition.
-
Page 89: Security Setup
List of all boot devices Select device to leave setup menu and boot from the selected device. currently detected Only visible and active if Boot Priority Selection setup node is set to “Device Based”. Copyright © 2013 congatec AG QA30_QA3Em11 89/91... -
Page 90: Additional Bios Features
Additional BIOS Features The conga-QA30 uses a congatec/AMI AptioEFI that is stored in an onboard Flash Rom chip and can be updated using the congatec System Utility (version 1.5.0 and later), which is available in a DOS based command line, Win32 command line, Win32 GUI, and Linux version. -
Page 91: Industry Specifications
Industry Specifications The list below provides links to industry specifications that apply to congatec AG modules. Specification Link Qseven Specification http://www.qseven-standard.org/ ® Qseven Design Guide http://www.qseven-standard.org/ ® Low Pin Count Interface Specification, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home...
