4.8.1
USB4 Type-C

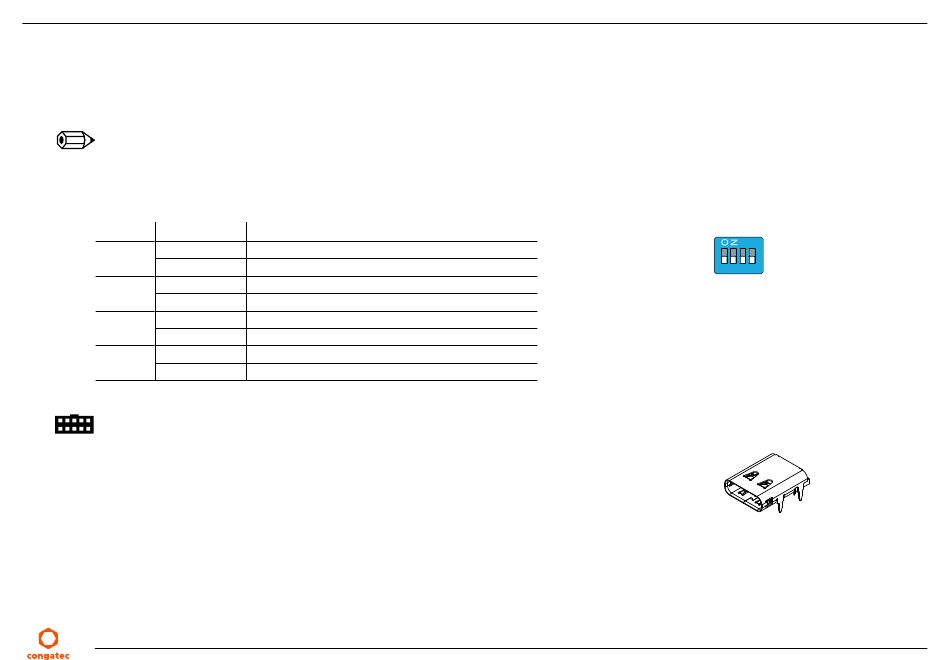

The conga-TEVAL3/COMe 3.1 provides two USB4 ports via USB Type-C connectors (X35 and X36) from module USB4 port 1 and port 2 (shared
pins with DDI1/DDI2).
Note
The ports provide a power source of 5V / 3A. Power sink is not supported.
Table 28
SW25 - USB4 Ports Connection
Switch
Configuration Description
SW25.1
ON
OFF
SW25.2
ON
OFF
SW25.3
-
-
SW25.4
ON
OFF
Connector Type
X35, X36: USB Type-C plug
Copyright © 2025 congatec GmbH
USB-PD PMCALERT# connected (default)
USB-PD PMCALERT# disconnected
USB-PD PROCHOT# connected
USB-PD PROCHOT# disconnected (default)
-
-
USB-C ports overcurrent connected
USB-C ports overcurrent disconnected (default)
TEVA31_m001
SW25
1 2 3 4
X35, X36
39/62
