Congatec conga-HPC/3.5-Mini User Manual

Com-hpc 1.20 mini application carrier board
Table of Contents

Advertisement

Quick Links

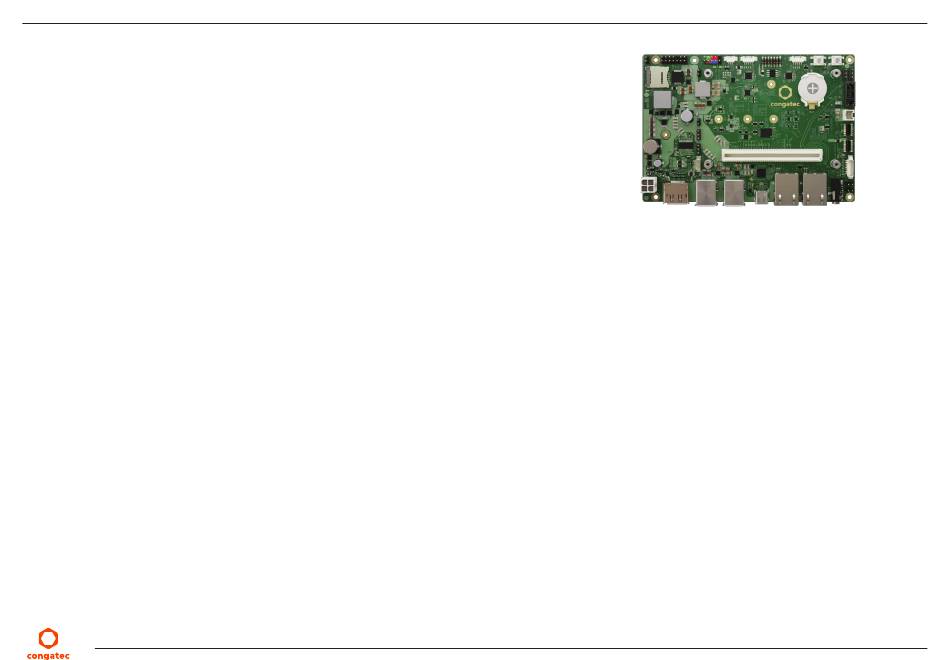

conga-HPC/3.5-Mini
COM-HPC® 1.20 Mini Application Carrier Board
User's Guide
Revision 0.01
(Preliminary)
Copyright © 2024 congatec GmbH
FMC1m001
1/41

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the conga-HPC/3.5-Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for Congatec conga-HPC/3.5-Mini

  • Page 1 COM-HPC® 1.20 Mini Application Carrier Board User’s Guide Revision 0.01 (Preliminary) Copyright © 2024 congatec GmbH FMC1m001 1/41...
  • Page 2 Revision History Revision Date (yyyy-mm-dd) Author Changes 0.01 2024-07-24 • Preliminary release Copyright © 2024 congatec GmbH FMC1m001 2/41...
  • Page 3 DECLINE ALL LIABILITY for damages, direct or indirect, that result from the use of this software. OEM/ CGUTL BIOS BIOS/UEFI modified by customer via the congatec System Utility (CGUTL) is subject to the same license as the BIOS/UEFI it is based on. You can find the specific details at https://www.congatec.com/en/licenses/.
  • Page 4 Copyright © 2024, congatec GmbH. All rights reserved. All text, pictures and graphics are protected by copyrights. No copying is permitted without written permission from congatec GmbH. congatec GmbH has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.
  • Page 5 Notes call attention to important information that should be observed. Connector Type Describes the connector that must be used with the congatec application carrier board, not the connector found on the congatec application carrier board. Link to connector layout diagram This link icon is located in the top left corner of each page.
  • Page 6 (c) arising from course of performance, course of dealing, or usage of trade. congatec GmbH shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause.
  • Page 7 Inter-Integrated Circuit Bus SM Bus System Management Bus Gigabit Ethernet LVDS Low Voltage Differential Signaling GPIO General Purpose Input/Output Embedded DisplayPort LVDS Low Voltage Differential Signaling N.C. Not connected Not available To be determined Copyright © 2024 congatec GmbH FMC1m001 7/41...
  • Page 8: Table Of Contents

    General Purpose SPI Port ............32 4.15 eSPI Header ................32 4.16 UART0 Port ................33 4.17 UART1 Port ................33 4.18 CAN Port .................. 34 4.19 System Fan Header ..............34 4.20 Feature Connector ..............35 Copyright © 2024 congatec GmbH FMC1m001 8/41...
  • Page 9 X20 - SMBus Header Pinout ............ 38 Table 32 X17 - Front Panel Header Pinout ..........38 Table 33 X40 - LID Pinout ............... 39 Table 34 X41 - Sleep Pinout ..............40 Copyright © 2024 congatec GmbH FMC1m001 9/41...
  • Page 10: Introduction

    0 / 4 0 / 2 Requires two SuperSpeed Tx pairs and two Rx pairs per port USB4 0 / 4 0 / 4 0 / 2 USB4 ports use USB 3.2 Gen 2x2 ports Copyright © 2024 congatec GmbH FMC1m001 10/41...
  • Page 11 VCC_RTC 1 / 1 1 / 1 1 / 1 All available GND pins shall be used. Connector 1 / 1 1 / 1 1 / 1 0 / 1 1 / 1 Copyright © 2024 congatec GmbH FMC1m001 11/41...
  • Page 12: Conga-Hpc/3.5-Mini

    Mini modules. ® The conga-HPC/3.5-Mini provides most of the functional requirements for any embedded PC application. These functions include, but are not limited to a rich complement of contemporary high bandwidth serial interfaces such as PCI Express , Serial ATA, USB4 , and Gigabit Ethernet.
  • Page 13: Connector Layout

    Every page has a mouse icon in the top left corner. Click on the mouse icon to return to this layout. Copyright © 2024 congatec GmbH FMC1m001 13/41...
  • Page 14 (KEY ID. 'B') (KEY ID. 'B') (22.00x42.00) M2 CARD (30.00x42.00) M2 CARD Copyright © 2024 congatec GmbH FMC1m001 14/41...
  • Page 15: Specifications

    146 x 102 mm Article conga-HPC/3.5-Mini COM-HPC Client 3.5” carrier board suitable for congatec COM-HPC Mini modules PN 065630 Note The module must also support the features for them to function. Refer to the module’s user’s guide for information about supported features.
  • Page 16: Connectors And Features

    RSVD SNDW_DMIC_DAT0 USB67_OC# SS0_RX- SS2_RX- USB45_OC# USB0_LSRX/DDI1_DDC_AUX_SEL SS0_RX+ SS2_RX+ USB23_OC# USB1_LSRX USB01_OC# USB0_LSTX/DDI1_HPD SS1_TX- SS3_TX- SML1_CLK USB1_LSTX SS1_TX+ SS3_TX+ SML1_DAT eDP_HPD PMCALERT# eDP_VDD_EN SS1_RX1 SS3_RX- SML0_CLK eDP_BKLT_EN SS1_RX+ SS3_RX+ SML0_DAT eDP_BKLTCTL USB_PD_ALERT# ACPRESENT Copyright © 2024 congatec GmbH FMC1m001 16/41...
  • Page 17 PCIe00_RX+ PCIe09_RX- PCIe01_TX- PCIe09_TX- PCIe09_RX+ PCIe01_RX- PCIe01_TX+ PCIe09_TX+ PCIe01_RX+ PCIe10_RX- PCIe02_TX-/SGMII1_TX- PCIe10_TX- PCIe10_RX+ PCIe02_RX-/SGMII1_RX- PCIe02_TX+/SGMII1_TX+ PCIe10_TX+ PCIe02_RX+/SGMII1_RX+ PCIe11_RX- PCIe03_TX-/SGMII0_TX- PCIe11_TX- PCIe11_RX+ PCIe03_RX-/SGMII0_RX- PCIe03_TX+/SGMII0_TX+ PCIe11_TX+ PCIe03_RX+/SGMII0_RX+ PCIe12_RX- PCIe04_TX- PCIe12_TX- PCIe12_RX+ PCIe04_RX- PCIe04_TX+ PCIe12_TX+ PCIe04_RX+ Copyright © 2024 congatec GmbH FMC1m001 17/41...
  • Page 18 GPIO_07 GP_SPI_CS0# I2C0_ALERT# NBASET0_MDI3+ GPIO_08 GP_SPI_CS1# I2C1_CLK GPIO_09 GP_SPI_CS2# I2C1_DAT NBASET0_LINK_MAX# GPIO_10 GP_SPI_CS3# NBASET0_SDP NBASET0_LINK_MID# GPIO_11 GP_SPI_CLK NBASET0_CTREF NBASET0_LINK_ACT# A100 PINOUT_TYPE0 B100 GP_SPI_ALERT# C100 PINOUT_TYPE1 D100 PINOUT_TYPE2 1. Not connected 2. Not supported Copyright © 2024 congatec GmbH FMC1m001 18/41...
  • Page 19: 4-Pin Atx Power Connector

    X26: Standard 4-pin ATX power connector CMOS Battery Holder The conga-HPC/3.5-Mini provides battery holder M17 for a CR2032 battery. The battery supplies power to the RTC and CMOS memory. Warning Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 20: Key B (X11) + Micro-Sim Card Slot (X12)

    Note The congatec Application Note 43 "M.2™ Pinout Descriptions and Reference Designs" provides the pinout description, reference design and design notes for each of the three M.2™ sockets commonly implemented on embedded systems (Socket 1 – Key E, Socket 2 – Key B, and Socket 3 –...
  • Page 21: Key E (X13)

    Note The congatec Application Note 43 "M.2™ Pinout Descriptions and Reference Designs" provides the pinout description, reference design and design notes for each of the three M.2™ sockets commonly implemented on embedded systems (Socket 1 – Key E, Socket 2 – Key B, and Socket 3 –...
  • Page 22: Key M (X9)

    M.2 Key M (X9) The conga-HPC/3.5-Mini provides a standard M.2 Key M socket (X9) for 2242, 3042, 2260, and 2280 cards. The socket provides the module's PCIe lanes [8:11]. DAS of this socket is connected to LED D6. It lights red when there is activity. The signal is also reversed and routed to the front panel header X17 as M2M_ACT# (see section 4.25 "Front Panel Header").
  • Page 23: Edp

    Connector Type X3: 0.5 mm, 40 Pos. (ACES 50203-04001-001 or compatible) The conga-HPC/3.5-Mini supports different voltages for the panel and backlight. Follow the descriptions in the tables below to set the panel and backlight voltages. Copyright © 2024 congatec GmbH...
  • Page 24: Table 7 X44 - Flat Panel Voltage Settings

    5 V backlight Power 12 V backlight Power (default) Connector Type X44, X45: 2.54 mm pitch, 2x1-pin jumper DP++ The conga-HPC/3.5-Mini provides one DP++ port (X2). This port is routed directly to the COM-HPC connector. ® Connector Type X2: Standard DP plug Copyright ©...
  • Page 25: Usb Type-C Port (Usb4 #0)

    3. For SML0, use address TBD on your module. Otherwise, the retimer on the conga-HPC/3.5-Mini will not work. 4. For SML1, use address TBD on your module. Otherwise, the PD controller on the conga-HPC/3.5-Mini will not work. Copyright © 2024 congatec GmbH...
  • Page 26: Usb 3.2 Type-A Ports (Usb3 #0,1,2,3)

    X48: 3-pin, 2.54 mm grid female header USB 3.2 Type-A Ports (USB3 #0,1,2,3) The conga-HPC/3.5-Mini provides four USB 3.2 Type-A ports via two dual-stacked connectors (X36, X37). The ports are routed to the COM-HPC signals listed in the table below: ®...
  • Page 27: Usb 2.0 Type-A Port

    USB 2.0 Type-A Port The conga-HPC/3.5-Mini provides header X47 for one USB 2.0 port. This port is routed to the COM-HPC USB7 signals. ® Table 13 X47 - USB 2.0 Header Pinout Pin Signal Pin 1 +5 V USB7- USB7+ Connector Type X47: 1.25 mm pitch, 4x1-pin (Molex 53261-0471);...
  • Page 28: Ethernet Ports

    4.11 Ethernet Ports The conga-HPC/3.5-Mini provides two RJ45 ethernet ports capable of 2.5 Gbps: • NBASET0 port on connector X7 • NBASET1 port on connector X8 Table 15 X7, X8 - Ethernet Status LEDs Description X7, X8 Color (LED) Signal...
  • Page 29: Audio Interfaces

    Audio Interfaces The conga-HPC/3.5-Mini features either a high definition audio (HDA) codec (Realtek ALC888S-VD) by default. Optionally, I2S codec (Cirrus Logic WM8904) can be featured instead (assembly option). Both codecs support the front audio header (X28) and 4-pole audio jack (X44).
  • Page 30: Soundwire

    X53: 2.54 mm pitch, 2x1-pin female connector 4.13 SPI BIOS Flash The conga-HPC/3.5-Mini provides an onboard SPI BIOS flash memory chip (U10) set as the default boot option. The boot select pins BSEL[2:0] are routed to DIP SW1: • BSEL0 to DIP SW1.1 (default: OFF) •...
  • Page 31: Table 19 Bios Select Options

    BIOS mostly under CSME / DT on Chipset SPI0 and SAFS on Carrier BMC control device on Module Carrier BIOS on Carrier SAFS Note For the conga-HPC/3.5-Mini, the default for BSEL[2:0] is 111. Copyright © 2024 congatec GmbH FMC1m001 31/41...
  • Page 32: General Purpose Spi Port

    4.14 General Purpose SPI Port The conga-HPC/3.5-Mini provides General Purpose SPI signals on header X51. Table 20 X51 - General Purpose SPI Port Pinout Signals Signals GP_SPI_CLK Pin 1 Pin 2 GP_SPI_ALERT# PLTRST# N.C. +V1.8_S0 +V3.3_S5 GP_SPI_CS3# GP_SPI_CS2# GP_SPI_CS1# GP_SPI_CS0#...
  • Page 33: Uart0 Port

    4.16 UART0 Port The conga-HPC/3.5-Mini provides the module's UART0 port on header X14. The port supports RS-232 I/O voltage levels. Table 22 X14 - UART0 Pinout Signals Pin 1 UART0_TX UART0_RTS UART0_CTS UART0_RX Connector Type X14: 1.25 mm pitch, 5x1-pin (Molex 53261-0571); Possible Mating Connector: Molex 51021-0500 4.17...
  • Page 34: Can Port

    4.18 CAN Port The conga-HPC/3.5-Mini provides the module's CAN bus signals via a transceiver (Microchip Inc. MCP2562FD) on header X16. The CAN bus does not have resistor termination. For CAN bus termination, use a cable adapter with internal resistor termination.
  • Page 35: Feature Connector

    Connector Type X50: 1.25 mm, 4-pin fan plug X49: 2.54 mm grid jumper 4.20 Feature Connector The conga-HPC/3.5-Mini provides pins with various signals on feature connector CN4. Table 27 CN4 - Feature Connector Pinout Pin Signal Description Pin Signal Description...
  • Page 36: Gpio Pin Header

    4.21 GPIO Pin Header The conga-HPC/3.5-Mini provides 12 GPIO pins on header X52. Table 28 X52 - GPIO Header Pinout Signal Signal Pin 1 Pin 2 +V1.8_S5 GPIO_01 GPIO_03 GPIO_05 GPIO_07 GPIO_09 GPIO_11 GPIO_10 GPIO_08 GPIO_06 GPIO_04 Pin 13 Pin 14...
  • Page 37: I2C0 Pin Header

    The conga-HPC/3.5-Mini provides I2C0 pins on header X19. An onboard EEPROM is connected to the I2C0 bus with the address 0xAE. Use the I²C control commands implemented in the congatec CGOS API driver to access the EEPROM. For more information, refer to the CGOS manual and the user’s guide of the COM-HPC module.
  • Page 38: Smbus Pin Header

    X20: 1.25 mm pitch, 5x1 pin (Molex 53261-0571); Possible Mating Connector: Molex 51021-0500 4.25 Front Panel Header The conga-HPC/3.5-Mini provides front panel pins on header X17. As COM-HPC does not support SATA activity LED, the signals are used for ®...
  • Page 39: Additional Features

    Additional Features Buttons The conga-HPC/3.5-Mini features onboard power and reset buttons. LID and sleep buttons can be connected via header X40 and X41. 5.1.1 Power When you press the power button M5, it triggers the module’s PWRBTN# signal. The triggered event usually initiates a transition from one power state to another (for example, from S5 to S0).
  • Page 40: Sleep

    LID_BTN# Connector Type X41: 2.54 mm pitch, 2x1 pin jumper 5.1.5 Temperature Sensor The conga-HPC/3.5-Mini features onboard temperature sensor U60 (TI TMP1075N) connected to I2C0 with the address 0x48 - 7-bit (1001 000x). Copyright © 2024 congatec GmbH FMC1m001 40/41...
  • Page 41: Mechanical Dimensions

    Mechanical Dimensions 142.82 8.89 8.89 142.82 All dimensions are in millimeters. Copyright © 2024 congatec GmbH FMC1m001 41/41...
