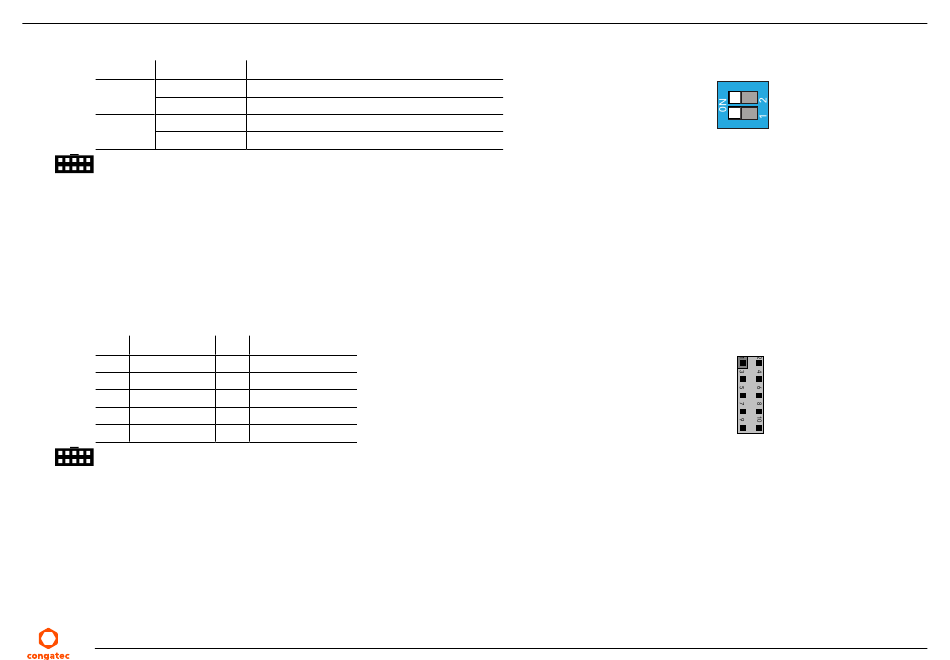

Table 47
SW13 - COM Port 0 Slew Rate/Termination
Switch
Configuration Description
SW13.1
OFF
ON
SW13.2
OFF
ON
Connector Type
X53: 2.54 mm, 2 x 5-pin receptacle
4.16.2

Super I/O COM Port 1 Header

The conga-TEVAL3/COMe 3.1 provides COM port 1 on connector X52 via the onboard Super I/O. The port supports only RS 232 I/O voltage
levels.
Table 48
X52 - COM 1 Pinout Description
Pin
Signals
1
DCD#
3
RXD
5
TXD
7
DTR#
9
GND
Connector Type
X52: 2.54 mm, 2 x 5-pin receptacle
Copyright © 2025 congatec GmbH
1 Mbps Slew rate (default)
250 kbps Slew rate (for EMI)
Disable RS-485/422 termination (default)
Enable RS-485/422 termination
Pin
Signals
2
DSR
4
RTS#
6
CTS#
8
RI#
10
+5V (750 mA fuse)
TEVA31_m001
SW13
X52
51/62
